6

Part # 25000102

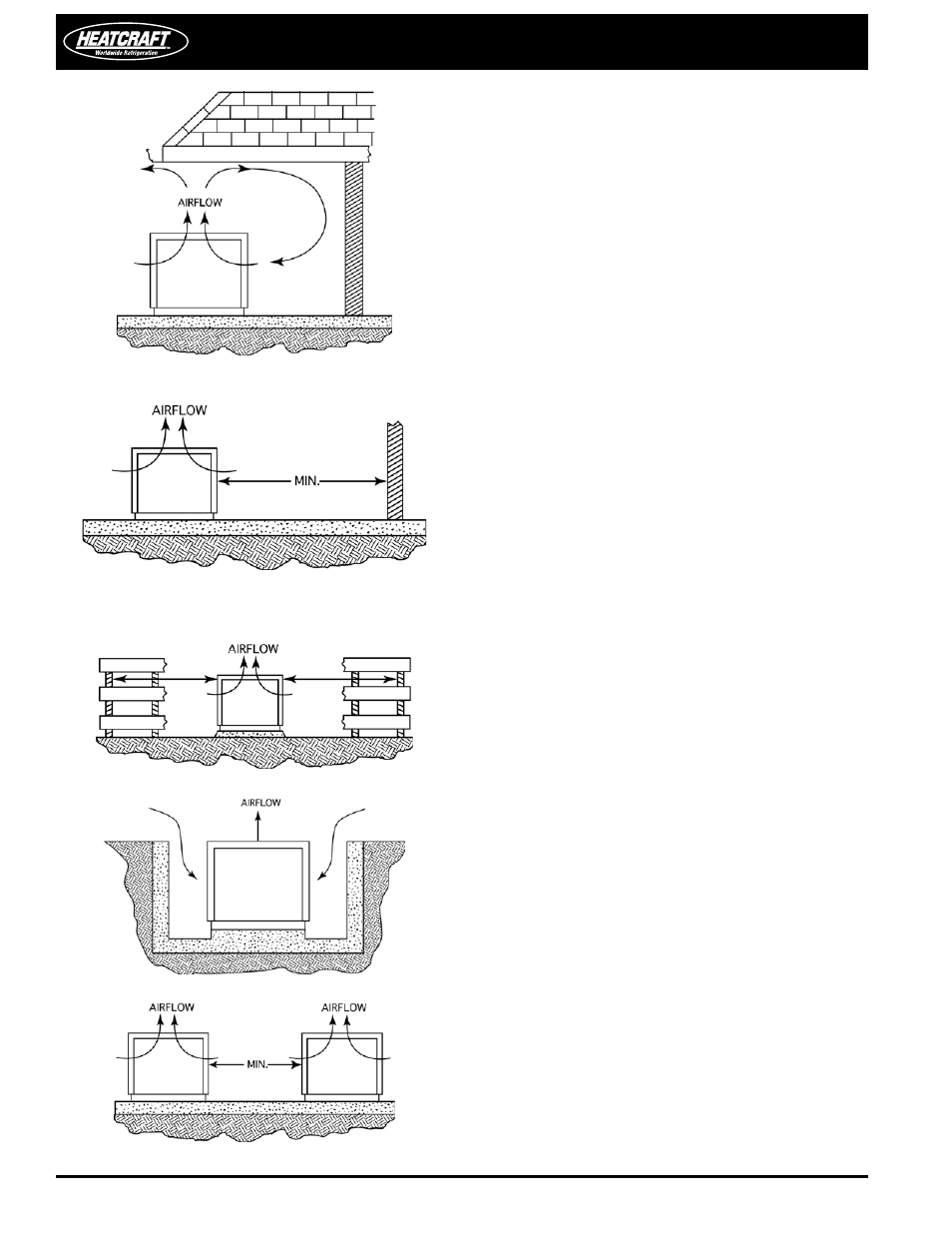

Unit Access

Always provide sufficient clearance for unit maintenance and

service. Minimum clearances for most situations are described

below (except 60 Inches of free space is required in front of the

control panel). Please note that these are minimums and more

clearance may be required by local codes.

Vertical Clearance

Overhead obstructions are not permitted. Vertical air discharge

from the condenser must have no obstructions that can cause

the discharge air to be recirculated back to the inlet side of

the unit.

Lateral Clearance

(Walls or Obstructions)

The unit should be located so that air may circulate freely and

not be recirculated. For proper air flow and access, all sides of

the unit (except control panel end ) should be a minimum of

four feet (1.2 m) away from any wall or obstruction. It is preferred

that this distance be increased whenever possible. Care should

be taken to see that ample room is left for maintenance work

through access doors and panels. When the unit is in an area

where it is enclosed by three walls the unit must be installed

under the guidelines for unit installations in pits.

Decorative Fences

Fences may be installed closer than the four foot (1.2 m) lateral

minimum (except on the control panel end) requirement

whenever fences permit sufficient free area to allow adequate

air flow to the unit. Once again, care should be taken to leave

ample room for unit service. Recommended service clearances

are listed above.

Units in Pits

The top of the unit should be level with the top of the pit. If the

top of the unit is not level with the top of the pit, a wider pit or

discharge stacks must be used to raise discharge air to the top

of the pit. This is a minimum requirement.

Multiple Units

(Unit-to-Unit Clearance)

For units placed side by side, the minimum distance between

units is eight feet (2.4 m) to prevent air recirculation.

Installation and Operations Manual
