Parallel Compressor Systems Installation & Operations Manual, October 2004

25

Parallel Compressor Systems

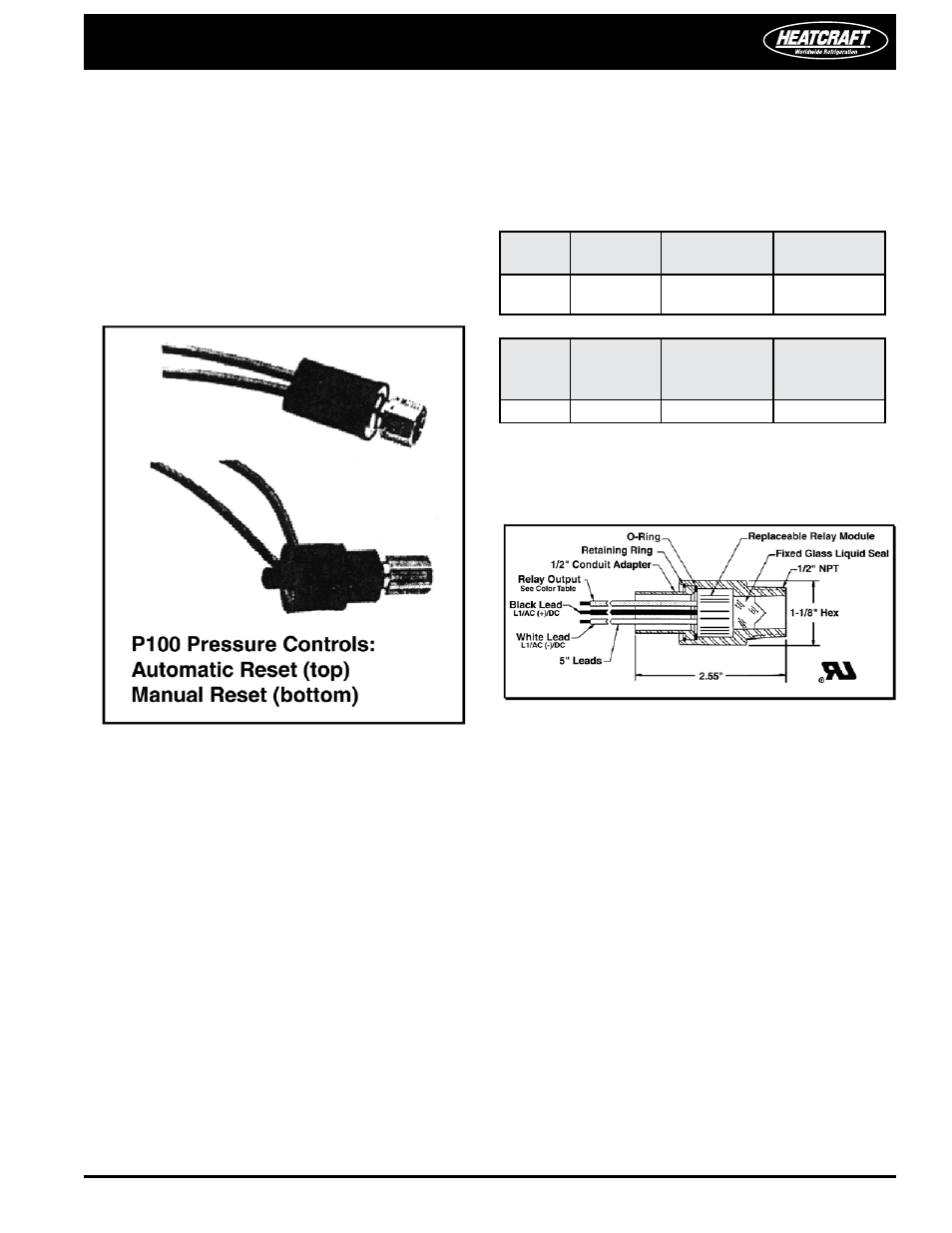

Series P100 Pressure Control

The P100 series, manufactured by Johnson Control, Inc., are

encapsulated, non adjustable, single-pole single throw, direct

mount pressure controls typically used for low or high pressure

cutouts. On the Heatcraft manufactured parallel systems, the

control is used for High Pressure cutout.
There are two types available. Auto Reset Models and Manual

Reset Models.

Auto Reset Models

When pressurized to the selected actuation pressure setting,

the internal snap-acting disc reverses its shape and drives

a set of electrical contacts either open or closed. When the

pressure drops below the de-actuation pressure setting, the

disc snaps back to its preset position thus resetting the electrical

contacts.

Manual Reset Models

The snap-acting disc in the manual reset model opens the

electrical contacts when actuated by the pressure sensor. Once

the disc snaps, the contacts are held open until an external

force on the push button closes them. Because of the disc’s link

with the pressure sensor, the contacts cannot be reset until the

pressure drops to a predetermined level.
The latching mechanism inside the manual reset model is trip

free. The electrical contacts will cutout even if the reset button

is held fully depressed. The control can only be reset when the

pressure returns to a predetermined level.

Liquid Level Switch

S-9400 Level Switch Series
OPTION – Not available on all systems or receivers.

Operation

The S-9400 Series Level Switches manufactured by AC&R

C

omponents

uses light reflecting from a conical glass prism as

a means of detecting the absence of a fluid at the level of the

glass cone. When no fluid covers the lower half of the cone,

infra-red light from the module reflects from the mirror-like

inner surface of the cone back to a light detector signaling the

electronic module to switch. When fluid covers the lower half

of the glass cone, the light from the module passes into the

fluid. This absence of light is detected by the module which

switches into the opposite direction. The module provides a

.06/.10 differential distance from the cone point down.

Figure 13.

Figure 14.

Table 19. Level Switch Table

Cat.

No.

Voltage

Resistive

Rating

Contacts

Liq. Present

S-9420

208/240

50/60 Hz

.5 Amp

N.C.

Cat.

No.

Wire Color

Code

Replacement

Module No.

Replacement

Sight Glass

No.

S-9420

Red & White

2-044-015

3-020-063
