2. Portion Dispense
Agitating motor energizes for .6 seconds for every 1 seconds of accumulative dispense
time. A variable resistor which controls the amount of ice dispensed is located on
the control board. The figures on the label indicate dispensing time (sec.). See "II.
D.3.a) Portion Control." When shipped, the portion control is set at the minimum
dispensing time (0.6 sec.).
DCM-500BAH(-OS), DCM-500BWH(-OS) . . . . . . . . . . . . Approximately 0.7 oz.
Amount of ice dispensed per second.
DCM-500BAH(-OS), DCM-500BWH(-OS) . . . . . . . . . . . . Approximately 1. oz.
BK BLACK O ORANGE W/BK WHITE/BLACK
BR BROWN P PINK W/BR WHITE/BROWN
BU BLUE R RED W/BU WHITE/BLUE
DBU DARK BLUE V VIOLET W/O WHITE/ORANGE
GY GRAY W WHITE W/R WHITE/RED
LBU LIGHT BLUE Y YELLOW

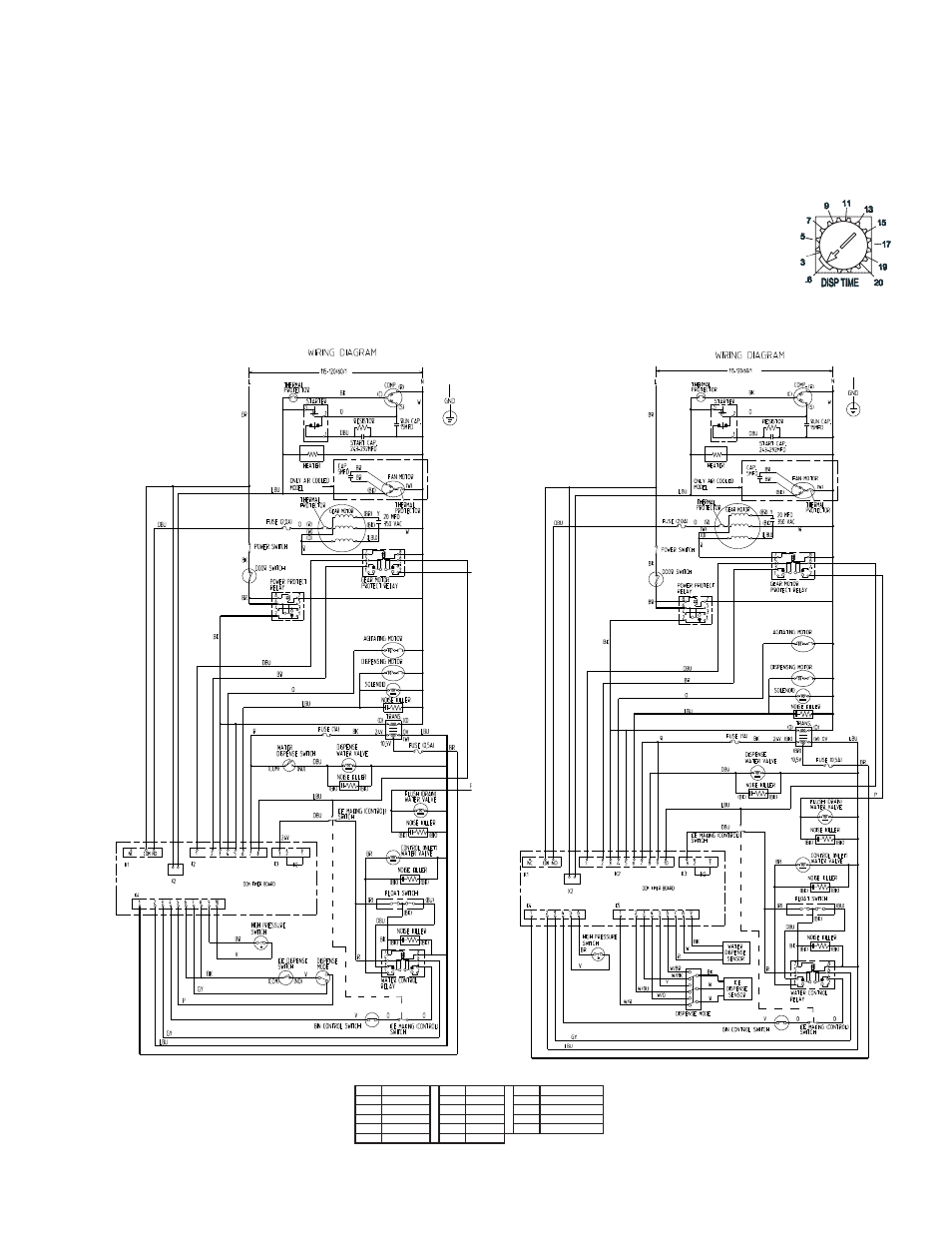

WIRE COLOR CODE
(Control Board) (Control Board)
DCM-500BAH-OS
DCM-500BWH-OS
DCM-500BAH
DCM-500BWH
