6

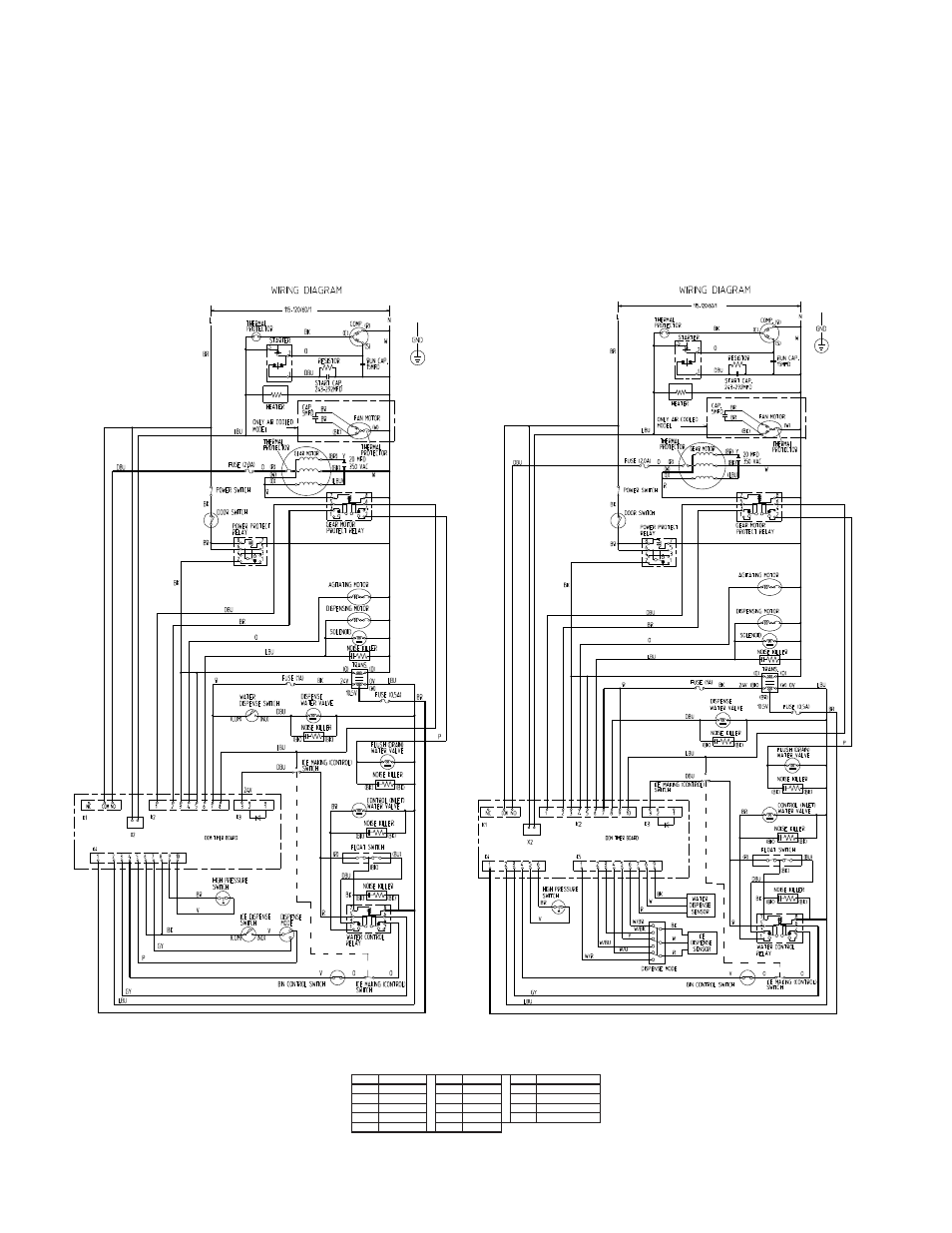

2. Ice Purge Cycle
Upper float switch closes, water control relay energizes, inlet water valve closes, gear
motor starts, gear motor protect relay energizes.
BK BLACK O ORANGE W/BK WHITE/BLACK
BR BROWN P PINK W/BR WHITE/BROWN
BU BLUE R RED W/BU WHITE/BLUE
DBU DARK BLUE V VIOLET W/O WHITE/ORANGE
GY GRAY W WHITE W/R WHITE/RED
LBU LIGHT BLUE Y YELLOW
WIRE COLOR CODE
(Control Board) (Control Board)
DCM-500BAH-OS
DCM-500BWH-OS
DCM-500BAH
DCM-500BWH
