7. High Pressure Switch
When the high pressure switch opens, the compressor stops immediately, 60 seconds
later the gear motor stops. To restart, allow time for the high pressure switch to close,
then move the power switch to the "OFF" position and then back to the "ON" position.

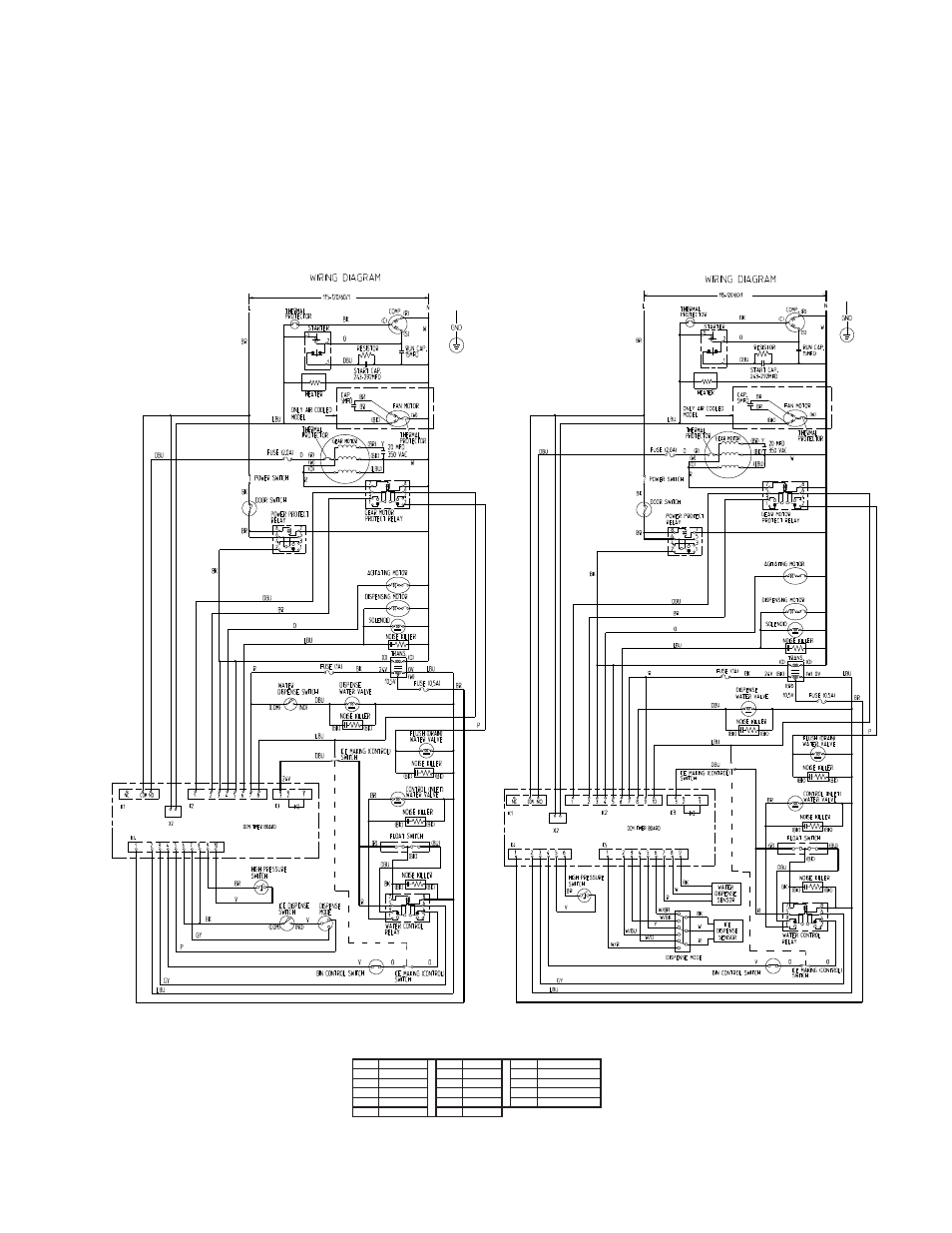

BK BLACK O ORANGE W/BK WHITE/BLACK
BR BROWN P PINK W/BR WHITE/BROWN
BU BLUE R RED W/BU WHITE/BLUE
DBU DARK BLUE V VIOLET W/O WHITE/ORANGE
GY GRAY W WHITE W/R WHITE/RED
LBU LIGHT BLUE Y YELLOW
WIRE COLOR CODE
(Control Board) (Control Board)
DCM-500BAH-OS
DCM-500BWH-OS DCM-500BAH
DCM-500BWH
