III. Technical Information

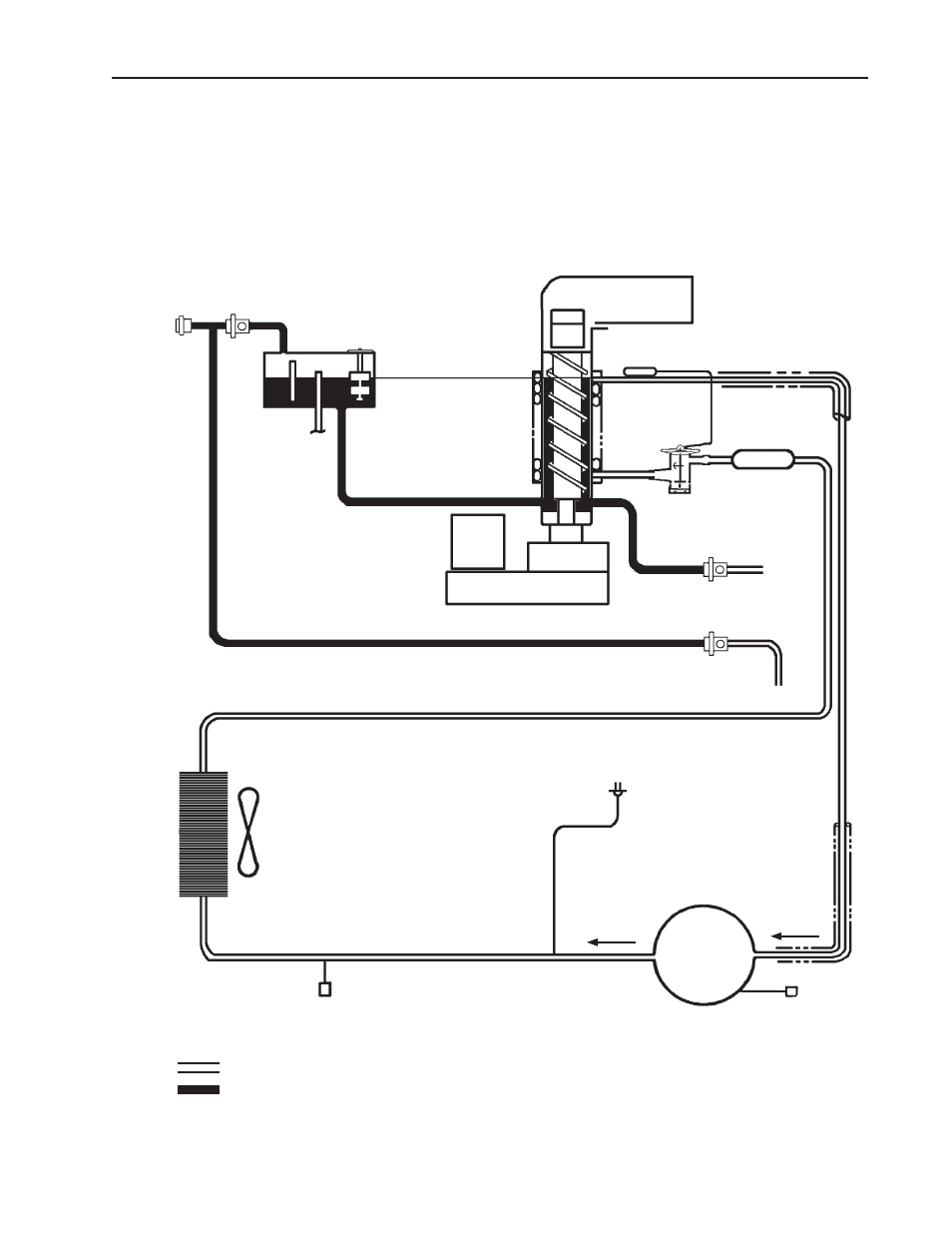

A. Water Circuit and Refrigeration Circuit
1. DCM-500BAH(-OS)
Inlet
Water
Valve
Dispensing
Water Valve
Drain
Valve
Float Switch
Water Level
To Drain
Evaporator
Spout
Expansion
Valve
Gear Motor
Overflow
Reservoir
Water Supply
Drier
Air-Cooled
Condenser
Fan
High
Pressure
Switch
Access
Valve
Access
Valve
Compressor
Refrigeration Circuit
Water Circuit
