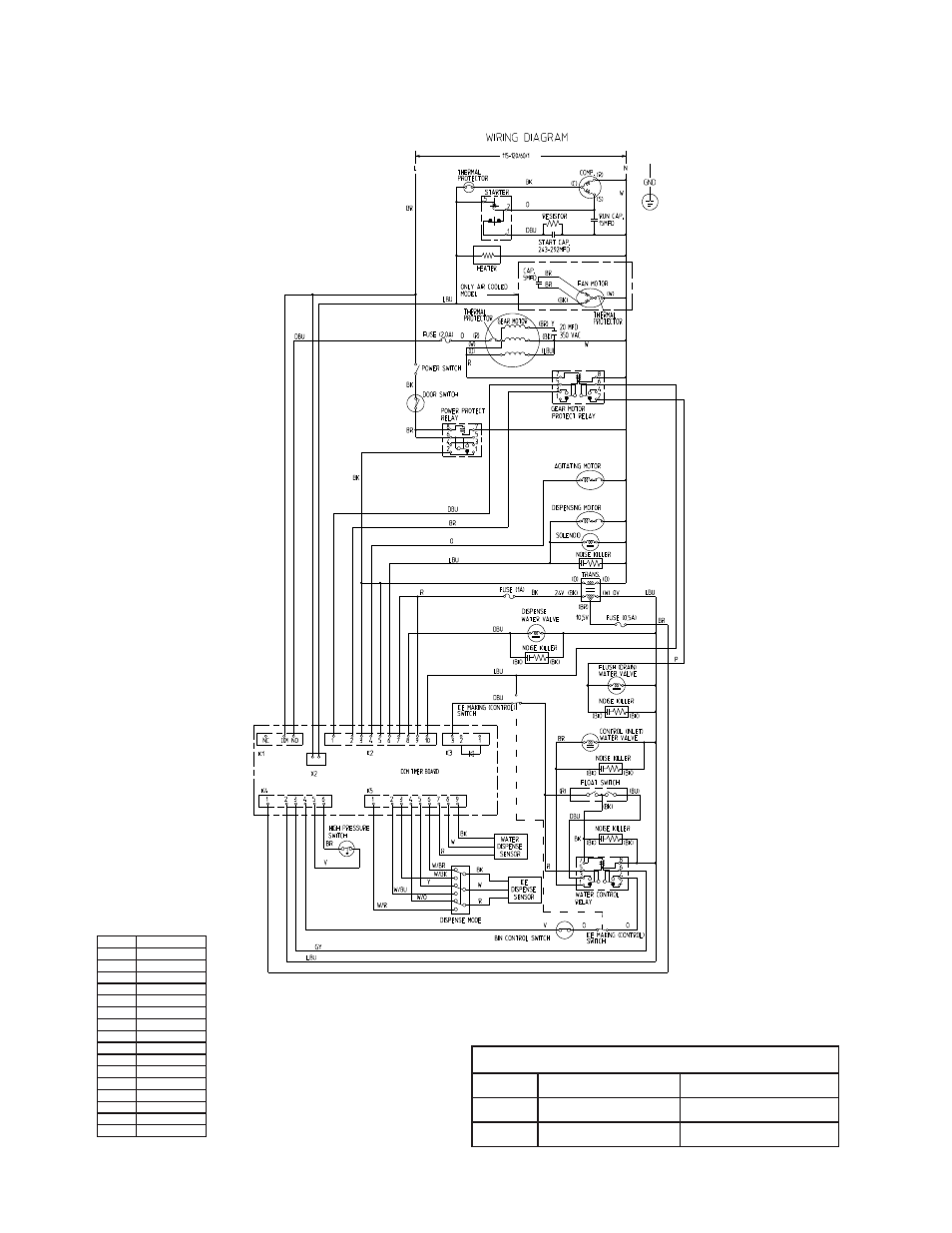

2. DCM-500BAH-OS, DCM-500BWH-OS
BK BLACK
BR BROWN
BU BLUE
DBU DARK BLUE
GY GRAY
LBU LIGHT BLUE
O ORANGE
P PINK
R RED
V VIOLET
W WHITE
Y YELLOW
W/BK WHITE/BLACK
W/BR WHITE/BROWN
W/BU WHITE/BLUE
W/O WHITE/ORANGE
W/R WHITE/RED
WIRE COLOR CODE
*
(Control Board)
* High Pressure Switch
Air-Cooled Model Water-Cooled Model
Cut-out 412± 21 PSIG 384± 21 PSIG
Cut-in 327±21 PSIG 284±21 PSIG
