HP DV3 User Manual
Page 71
Removal and replacement procedures
Maintenance and Service Guide
4–9

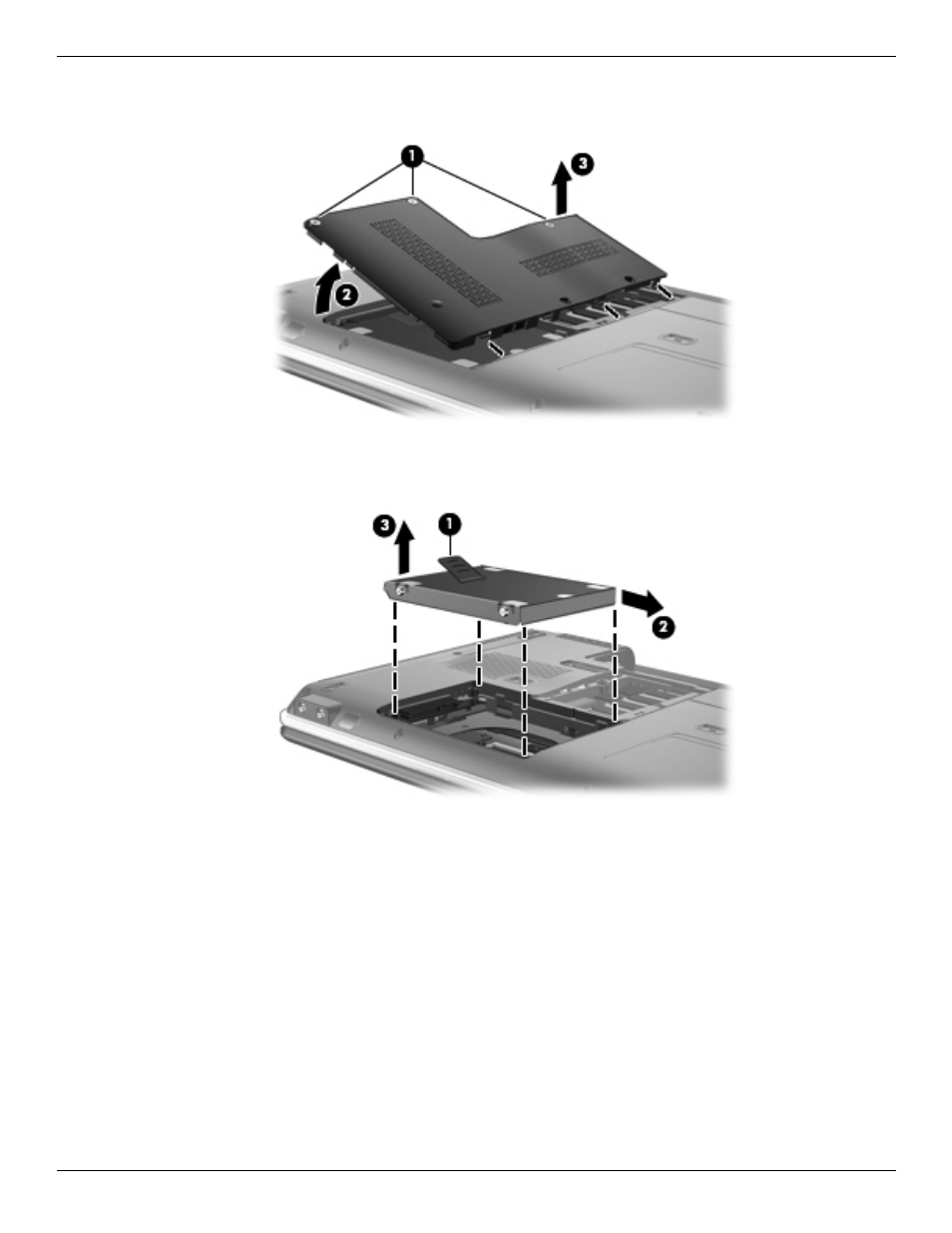

4. Remove the hard drive cover 3. The hard drive cover is included in the Plastics Kit, spare part number
531808-001.
5. Grasp the Mylar tab 1 on the hard drive and slide the hard drive 2 to the right.
6. Remove the hard drive 3 from the hard drive bay.
7. If it is necessary to replace the hard drive bracket, follow these steps:
a. Remove the two Phillips PM3.0×4.0 screws 1 from each side of the hard drive.
