Heat & Glo • Gateway • 288-900 Rev. W • 10/08 45
Service Parts
GATEWAY
Beginning Manufacturing Date: Jan. 2002
Ending Manufacturing Date: ______

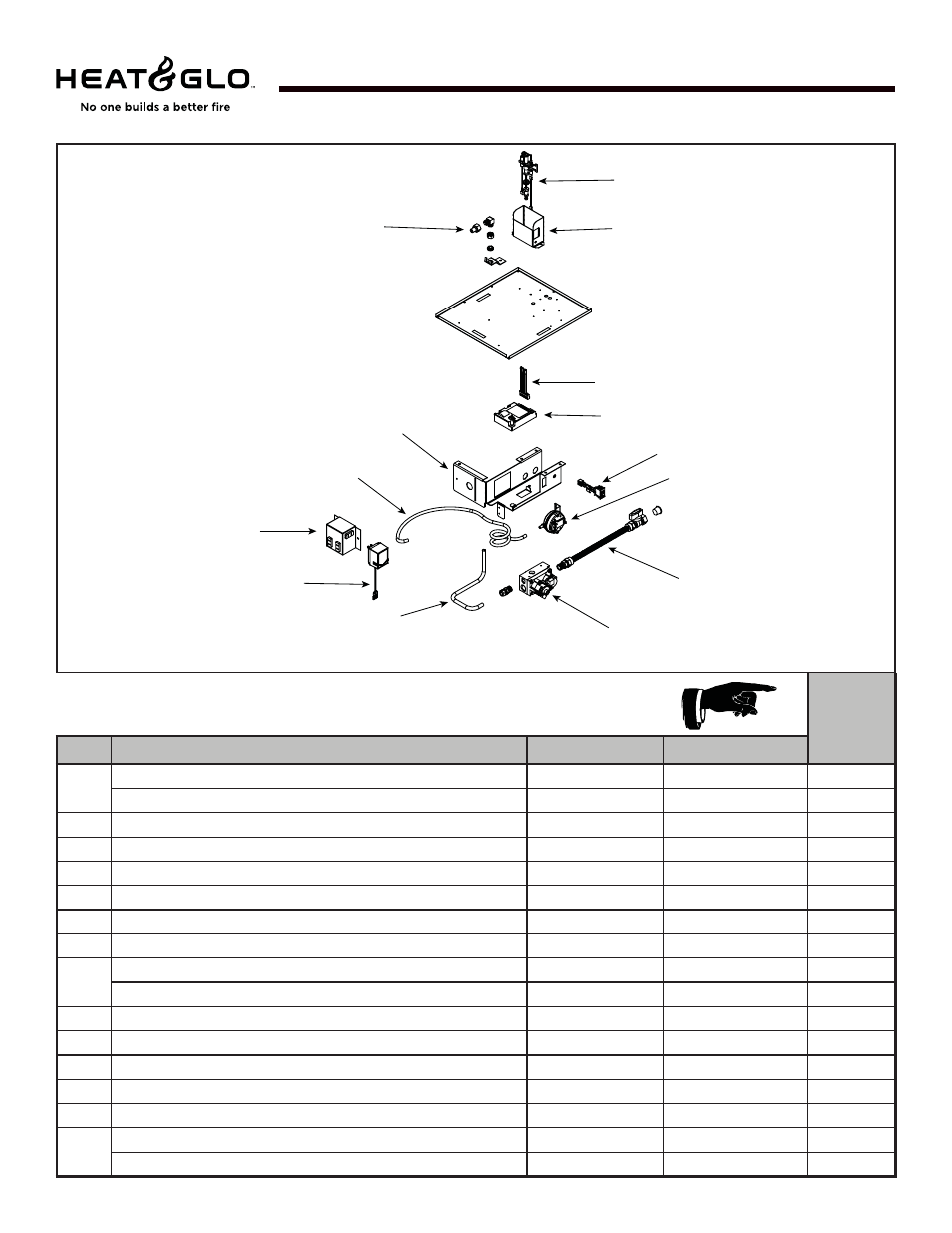

Valve Assembly Parts List
IPI Valve Assembly 1
2
3
4
5
6
7
8
9
10
11
12
13
14
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1
Pilot Assembly NG 385-510A Y
Pilot Assembly LP 385-511A Y
2 Pilot Bracket 288-163
3 Wire Assembly 288-593A Y
4 Module 593-592 Y
5 ON/OFF Rocker Switch 060-521A Y
6 Vacuum Switch 288-521 Y
7 Flex Ball Valve Assembly 302-320A Y
8
Valve NG 593-500 Y
Valve LP 593-501 Y
9 Flexible Gas Connector 477-301A Y
10 3V Adaptor Plug 593-593A Y
11 Junction Box 288-250A Y
12 Vacuum Hose (Tefl on Tube) 421-9
13 Valve Bracket 288-145
14
Burner Orifi ce (#32A) NG 420-800 Y
Burner Orifi ce (#50A) LP 446-801 Y
