Heat & Glo • Gateway • 288-900 Rev. W • 10/08 31
Log Assembly: LOGS-GATEWAY
F. Positioning the Logs
If the gas logs have been factory installed they should not
need to be positioned. If the logs have been packaged
separately, refer to the following instructions.
288-935 12/01

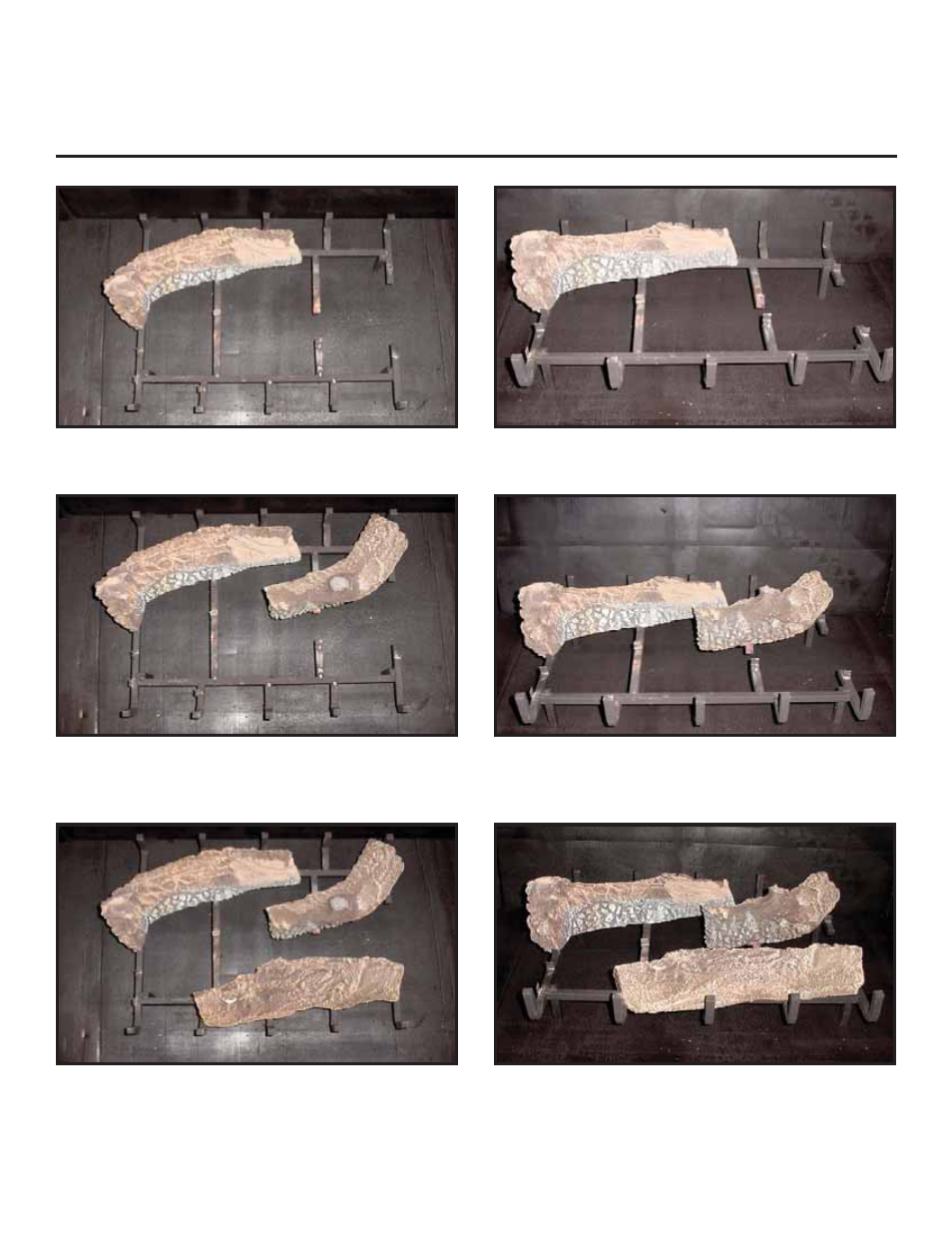

LOG #2 (SRV675-722): Place log #2 so that the slot on the bottom of the log fi ts over the grate tab in the right rear
corner. The left end of log #2 rests against the stop on the right center bar.
LOG #3 (SRV288-726): Position log #3 on the front right hand side of the grate against the 3 stops.
LOG #1 (SRV288-721) : Position log #1 at the rear left corner of the grate against three grate stops as shown.
1
2
1
2
3
3
