Heat & Glo • Gateway • 288-900 Rev. W • 10/08 41
16 16
Reference Materials
E
A
B
L
M C
F
G
H
I
K
J
D
GAS LINE
ACCESS
ELECTRICAL
ACCESS
Appliance Dimensions Table

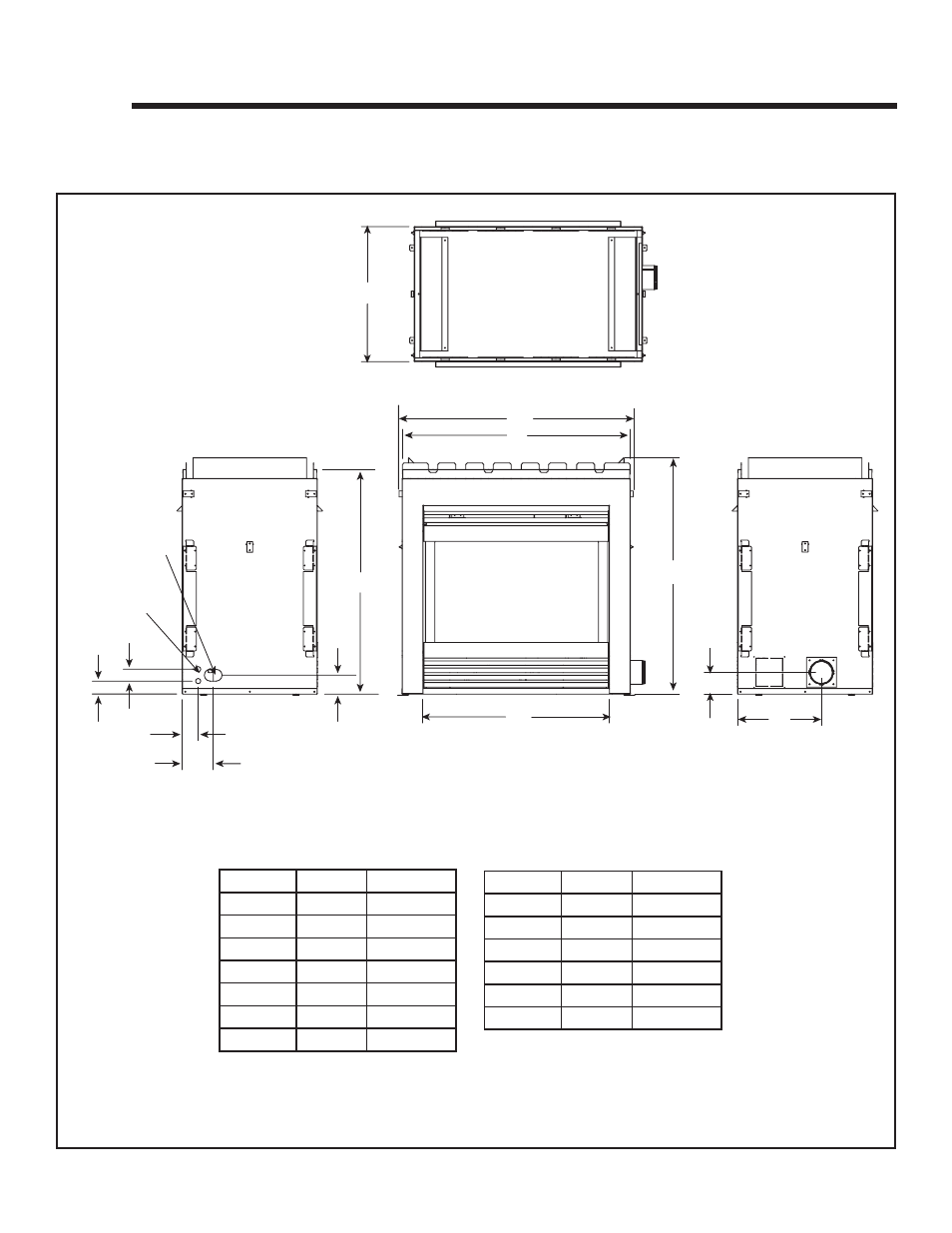

A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 3.
Figure 16.1 Appliance Dimensions
Location Inches Millimeters
A 39-1/4 997
B 39-9/16 1005
C 31-1/4 794
D 38-1/8 968
E 22-5/8 575
F 37-5/8 955
G 3-1/8 80
Location Inches Millimeters
H 5-1/8 131
I 2-5/8 67
J 2-1/8 54
K 2 51
L 3-5/8 92
M 14-1/16 357
