Heat & Glo • Gateway • 288-900 Rev. W • 10/08 32

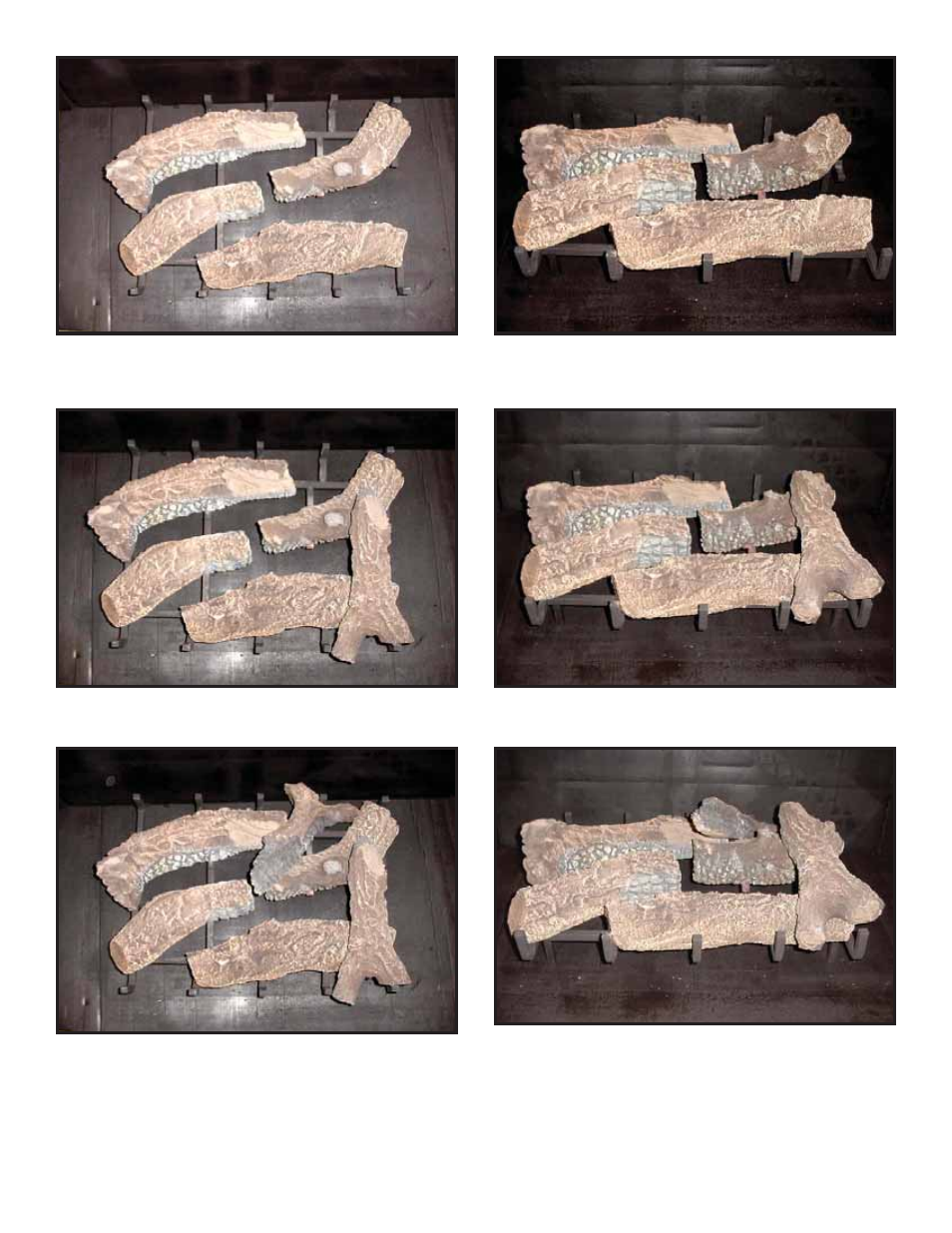

LOG #4 (SRV288-723): Place log #4 so that the slot on the bottom of the log fi ts over the grate tab on the front left
corner of the grate. The right end of log #4 rests against the stop on the left center bar.
LOG #5 (SRV285-720): Position log #5 on the location grooves on log #2 and log #3 as shown.
LOG #6 (SRV278-705): Place the “Y” end of log #6 over the second rear grate bend and locate its top in the locating
groove on log #2.
4
4
5
5
6
6
