TASCAM MM-4D/IN-E / MM-4D/IN-X
9
9
External control connectors
(LED/SWITCH, MM-4D/IN-E only)
LED connectors: These are open collector mute status
output connectors.
SWITCH connectors: These are control input connec-
tors. These mute the audio signals
from the analog input connectors.
These can also be used by operat-
ing (short/open) a switch connect-
ed between the SWITCH and GND
connectors.
GND connectors: These are grounds for the control con-
nectors.
0
Gigabit link status indicator
Orange indicates that a gigabit Ethernet link has been
established.
q
Link status/activity indicator
Green indicates that a link is established between the
devices.
Blinking indicates that signals are being transmitted be-
tween the devices.
w
DC IN 12V connector
Connect a PS-P1220E AC adapter (sold separately) here.
e
Cord holder
When using a PS-P1220E AC adapter (sold separately),
hook its cord here to prevent accidental disconnection.

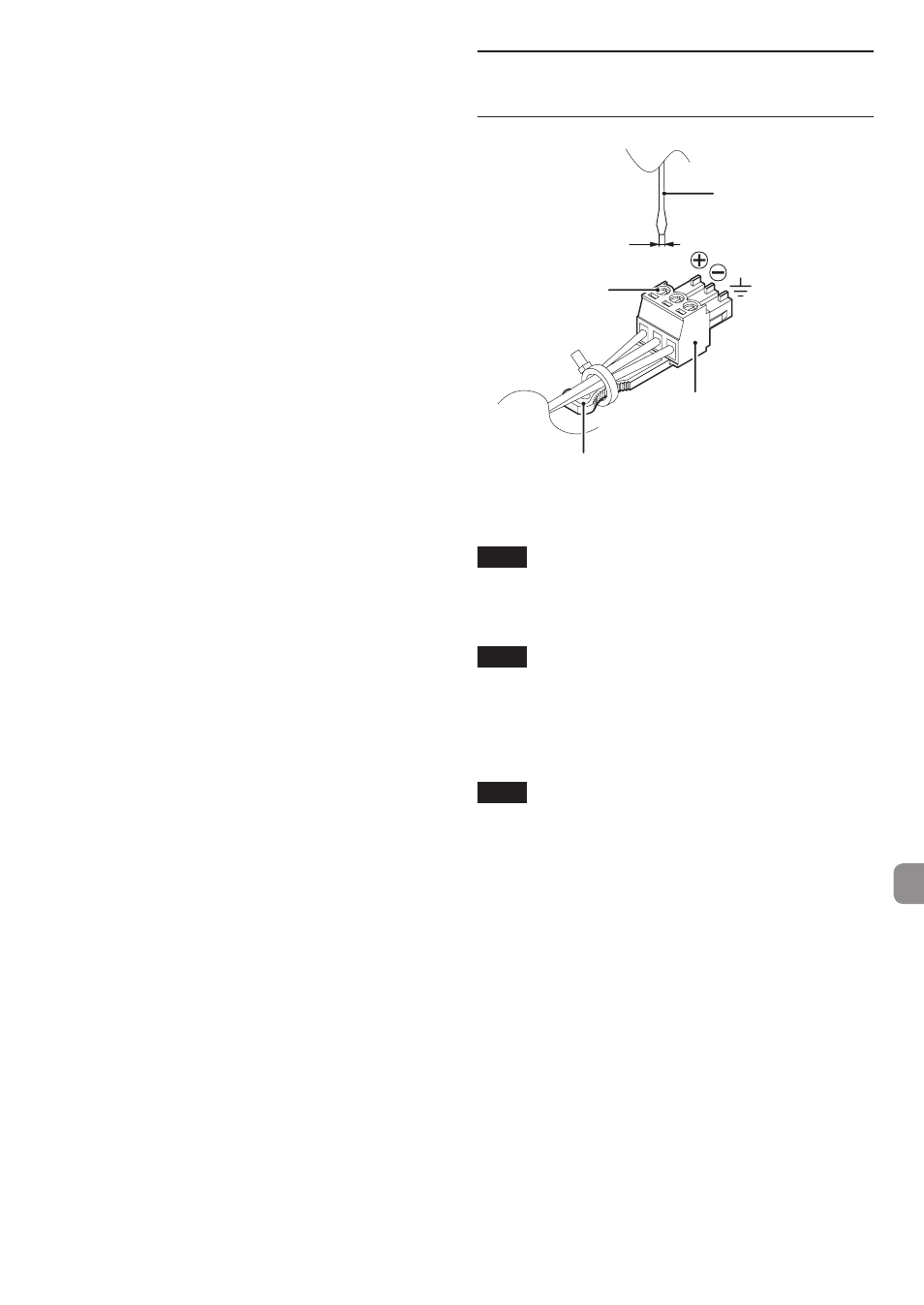

Connecting Euroblock plugs
(MM-4D/IN-E only)
Euroblock plug
Terminal screw
2.5 mm or less
Euroblock plug tab
Flat-blade screwdriver
1. Loosen the Euroblock plug terminal screws.
NOTE
Use a flat-blade screwdriver with a width of 2.5mm or
less.
2. Insert wires.
NOTE
AWG16–AWG28 wires are compatible with the includ-
ed Euroblock plugs. Using wires within the compatible
range, trim about 7 mm of the protective sheaths from
their ends.
3. Tighten the Euroblock plug terminal screws.
NOTE
Confirm that the wires cannot be pulled out.
4. Use an included wire band to attach the wires to the
Euroblock plug tab.
