Tascam MM-4D/IN-E 4-Channel Mic/Line Input Dante Converter with Built-In DSP Mixer - Manual (Page 10)

10
TASCAM MM-4D/IN-E / MM-4D/IN-X

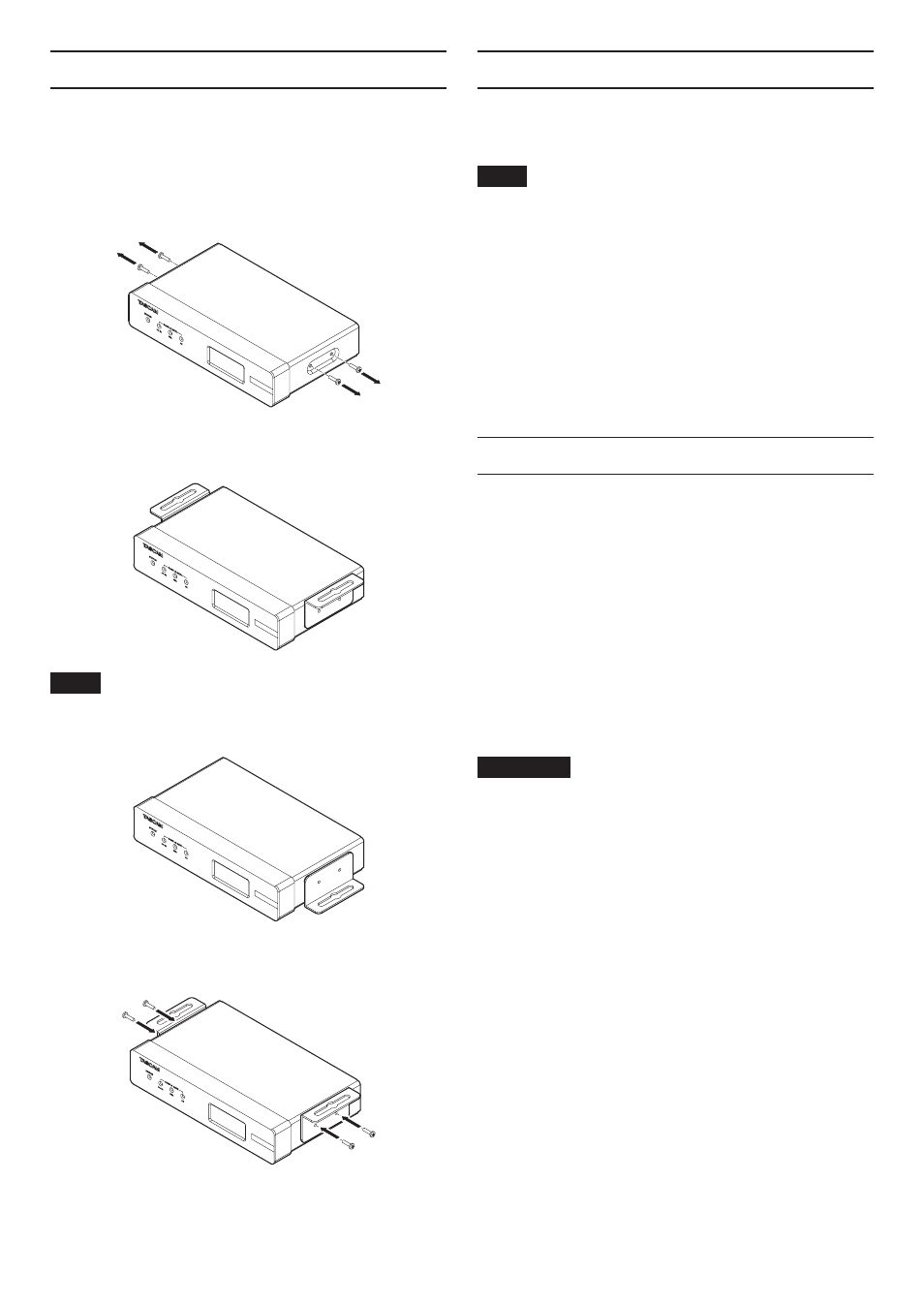

Installing the attachment brackets
By installing the included attachment brackets on this unit,
you can fix it in place on top of or underneath a desk, for
example.
1. Remove the four screws installed in the left and right
sides of the enclosure.
2. Align the included attachment brackets with the enclo-
sure.
NOTE
When installing this unit on a desk, align the brackets as
shown in the illustration below.
3. Use the four removed screws to install the attachment
brackets on the unit.
Installing on or under a desk
To install this unit on or under a desk, use 4 commercial-
ly-available screws that are suitable for the material and
thickness of the desk.
NOTE
The width of the attachment bracket openings is 7.1 mm.
See the dimensional diagrams at the end of this manual
for details about the attachment brackets.
1. With the two attachment brackets already installed on
the unit, align the unit with the desk as desired.
2. Make marks where the screw holes will be made in the
desk.
3. Drill pilot holes for the screws in the desk.
4. Attach the unit to the desk with 4 screws.
Overview of settings
Make various settings as necessary according to the con-
nected equipment.
All of the following settings can be made using the dedi-
cated remote control application (TASCAM DCP CONTROL).
Setting mic/line inputs
Gain, pad and trim settings can also be made with the ap-
plication.
Setting phantom power
Phantom power can be turned on when an external mic
that requires it is connected to the unit.
This can be turned on/off independently for each channel.
ATTENTION
i Before making connections, turn this unit and all equip-
ment to be connected off (standby).
i Confirm that phantom power is off before connecting a
line-level device to an analog input jack. If you connect a
line level device while phantom power is being supplied,
that device and this unit could be damaged.
i Do not connect or disconnect mics with the analog input
jacks while phantom power is on. Doing so could cause a
loud noise and might damage the equipment.
i Turn phantom power ON only when using a condens-
er microphone that requires phantom power. Turning
phantom power on when a dynamic mic or other mic
that does not require it is connected could damage this
unit and connected equipment.
i When using condenser mics that require phantom pow-
er and dynamic mics together, be sure to use balanced
dynamic mics. Unbalanced dynamic mics cannot be
used when phantom power is enabled.
i Supplying phantom power to some ribbon mics will
break them. If you are unsure, do not supply phantom
power to a ribbon mic.
i Some condenser microphones will not operate when
phantom power is set to 48V.
