EAW DSA250 & DSA230 - Manual (Page 42)

3.47 in
(88.3 mm)
0.38 in
(9.7 mm)
0.38 in
(9.7 mm)
4.22 in
(107.3 mm )
2.76 in
(70.0 mm)
0.62 in
(15.8 mm)
0.62 in
(15.8 mm)
4.00 in
(101.5 mm )
4X Ø 0.38 in
(9.65 mm)

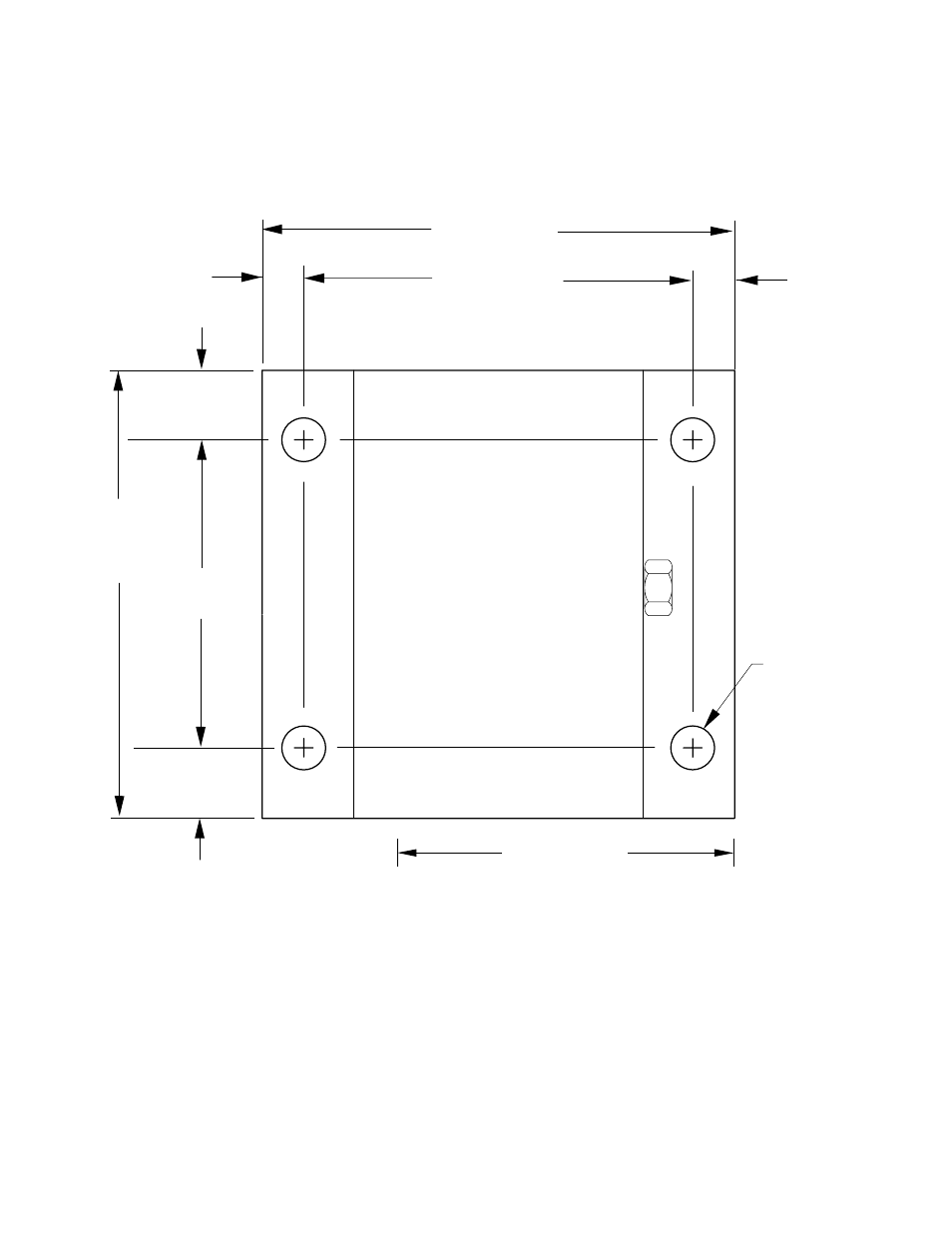

FIGURE 9.3 WALL BRACKET
(FULL SCALE)
See Section 5.5.7 for Mounting Instructions
3.0 inch standard
(76.2 mm)
Verify this dimension before using this template.
When printing this PDF template make
sure to deselect "Fit to page" option.
9 . 3 WA L L B R A C K E T
42
