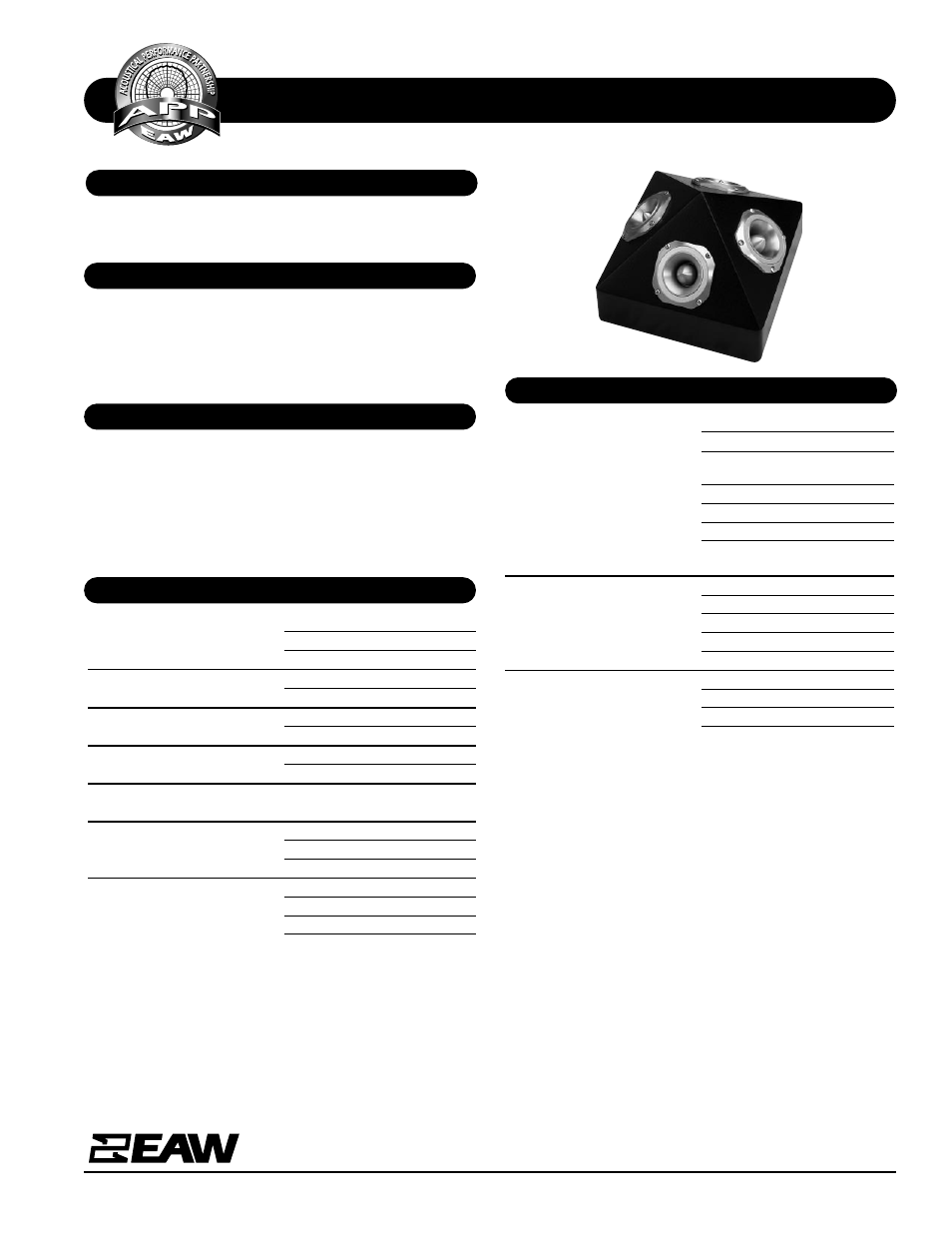

EAW DCT1 - Manual

SPECIFICATIONS DCT1
FEATURES
PHYSICAL
PERFORMANCE
APPLICATION
DESCRIPTION
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 [email protected] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. DCT1/2 pp October 2001 Printed in USA
Frequency Response
±3 dB 5 kHz to 15 kHz
-10 dB 4.5 kHz
Axial Sensitivity (dB SPL, 1 watt @ 1 m)
HF 110
Nominal Input Impedance (ohms)
HF 32
Power Handling (watts, continuous)
HF 100
Recommended High-Pass Frequency
24 dB/octave 5 kHz
Calculated Output Limit (dB SPL @ 1 m)
HF Peak 136
HF Long Term 130
Nominal Beamwidth (degrees @ -6 dB SPL)
Horizontal 360
Vertical 45
Product Group Avalon
Configuration Dedicated VHF
VHF Subsystem 4x 1.33-in compression tweeters,
horn-loaded
Enclosure Material Exterior-grade Baltic birch plywood
Finish Wear-resistant textured black paint
Connectors 2x Neutrik NL4 Speakon
Suspension Hardware 4x 1/4”-20 threaded mounting
points (4 top)
Dimensions inches millimeters
Height 9.0 229
Width 12.0 305
Depth 12.0 305
Baffle Angle 50°
Weights pounds kilograms
Net Weight 22 10.0
Shipping Weight 28 12.7
• Dedicated supertweeter array
• Four high frequency compression tweeters
• 360° (H) dispersion suspended directly overhead
The DCT1 is engineered for use inpermanent installations. The
system mounts four horn-loaded 1.33-in exit compression
tweeters in an inverted pyramid enclosure. The driver/phase
plug assemblies are engineered to minimize beaming of
soundwaves with the smallest wavelengths, particularly in the
horizontal plane.
The DCT1's inverted pyramid configuration delivers optimized
360° horizontal dispersion of high frequencies when suspend-
ed directly overhead. It provides very high levels of high fre-
quency sound reinforcement for high energy dance clubs.
Like all EAW products, it can be special ordered in virtually any
color to match a specific décor. Six year warranty.
