EAW SB625zP - Manual

Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel 800 992 5013 / 508 234 6158 fax 508 234 8251 www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. Part Number: RD0232 (A) SB625zP April 2005
S B 6 2 5 z P S p e c i f i c a t i o n s
group · M
DESCRIPTION
The SB products are EAW's premium subwoofers designed for
the most demanding professional applications. A broad range of
capabilities and sizes provide the designer with selections that
can be specifically matched to their application. Top quality
drivers, engineered by EAW, provide the highest output and best
sonic performance possible for a given form factor. All SB
models are direct radiating, with optimally tuned, vented
enclosures. SB subwoofers are the choice where the best sonic
performance, highest reliability, and most robust physical
construction are required.

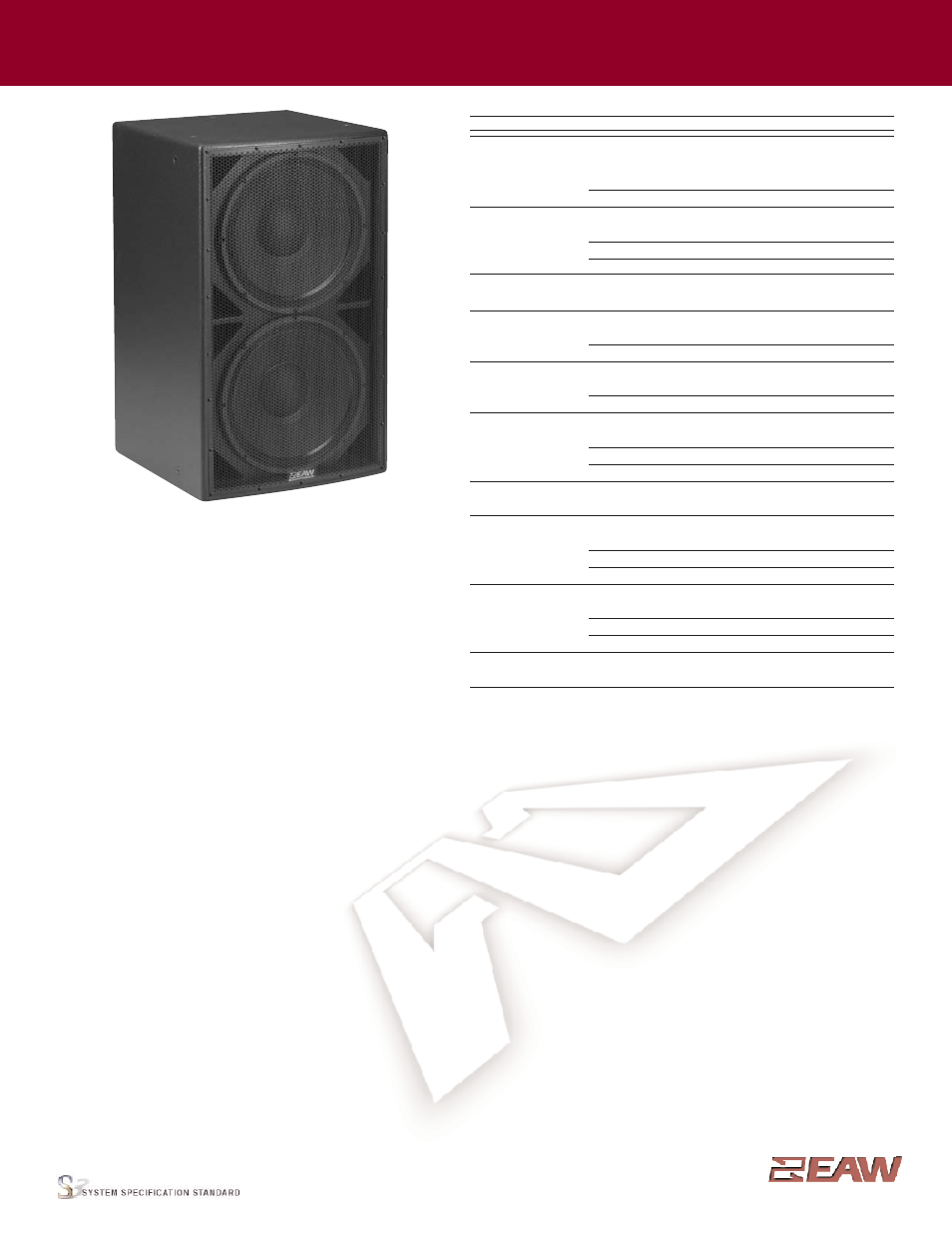

The SB625zP is a high output, mid-size subwoofer system. This
versatile, all-purpose subwoofer is designed for permanent
installation where the solid-sounding output of dual 15 inch
drivers is desired. The SB625zP is engineered to complement
the KF600zP Series in flown arrays, but it also works well with
any full-range loudspeaker. Its applications include: large
houses of worship, large auditoriums/theaters, cinemas, and
dance clubs.
The SB625zP is designed to be used with today's sophisticated
digital signal processing to optimize the LF response. EAW's MX
Series processors are recommended for the required crossover
and equalization.
Six Year Warranty.
DUAL 15 INCH SUBWOOFER
See NOTES TABULAR DATA for details, half space = floor-mounted
CONFIGURATION
Subsystem
Transducer Loading
SUB 2x 15 in cone Vented
Operating Mode
Amplifier Channels External Signal Processing
Single-amp LF1/LF2 DSP w/1-way filter
Dual-amp LF1, LF2 DSP w/1-way filter
PERFORMANCE 1
Operating Range 41 Hz to 150 Hz
Nominal Beamwidth
Horz 360°
Vert 360°
Axial Sensitivity (SPL)
LF1/LF2 (whole space) 97 dB
41 Hz to 150 Hz
(half space) 103 dB 41 Hz to 150 Hz
Input Impedance (ohms)
Nominal Minimum
LF1/LF2 8 4.5 @ 150 Hz
LF1, LF2 8 (each) 9.0 @ 150 Hz (each)
Recommended High Pass Filter
High Pass =>35 Hz, 12 dB/octave Butterworth
Accelerated Life Test 2
LF1/LF2 75 V 1400 W @ 4 ohm
LF1, LF2 75 V (each) 700 W @ 8 ohm (each)
Transducer (AES) 1000 W (each)
Calculated Axial Output Limit (SPL)
Average Peak
LF1/LF2 (whole space)128 dB 134 dB
(half space) 134 dB 140 dB
ORDERING DATA
Description Part Number
SB625zP Dual 15 inch Subwoofer Black 997235
SB625zP Dual 15 inch Subwoofer White 0011439
SB625zP Dual 15 inch Subwoofer Black WP 0012145
Optional Accessories
3/8-16 Forged Shoulder Eyebolt
104001
1 To achieve specified performance, the listed external signal processing with EAW-provided settings is required.
2 For recommendations to select power amplifier size refer to : “HOW MUCH AMPLIFIER POWER DO I NEED?” on the EAW web site.
