Connecting Cables

XSR Getting Started Guide 2-9

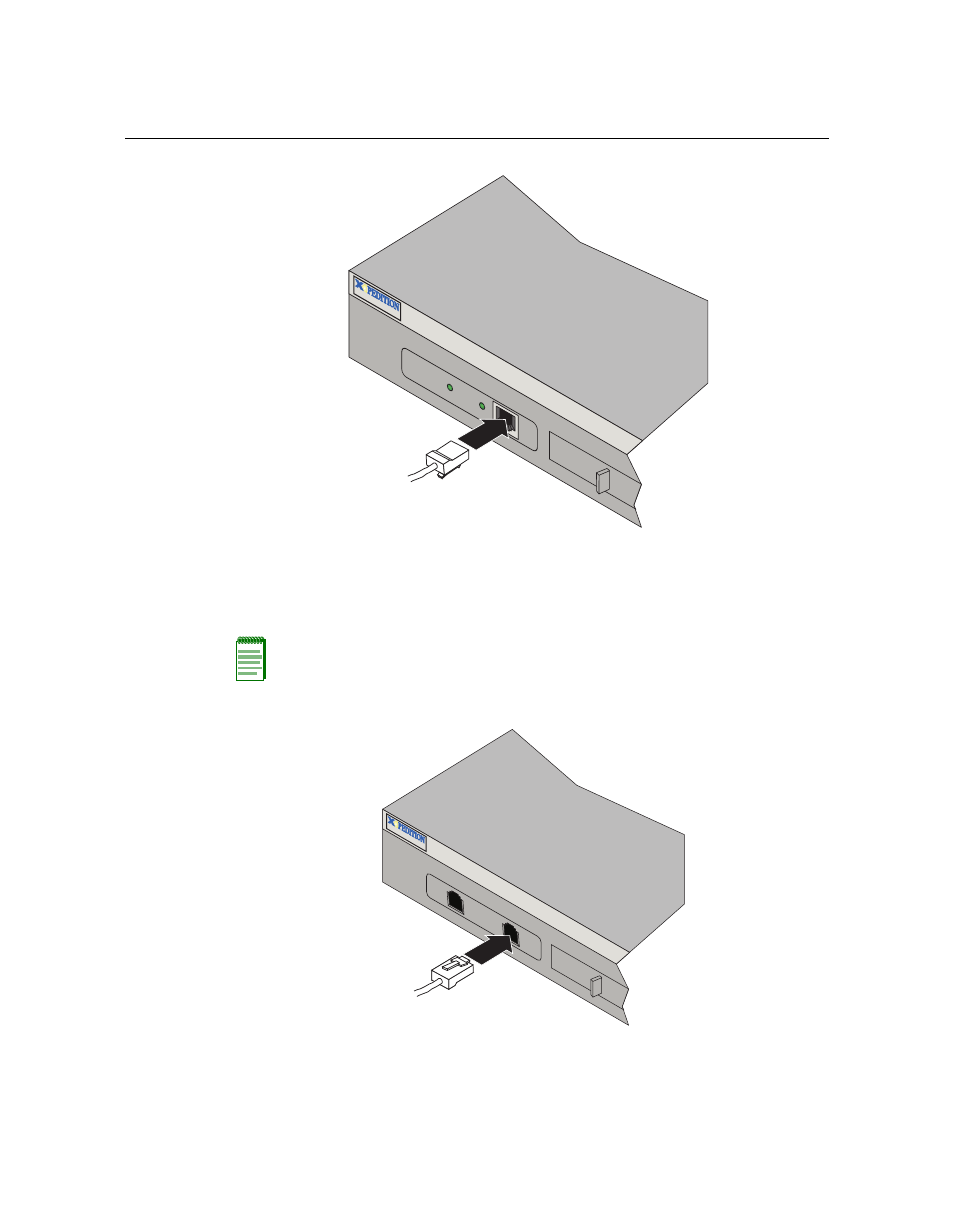

Figure 2-13 Connecting ADSL Connector

A CompactFlash card is provided with the XSR ADSL NIM. It is loaded with the Digital Signal
Processing (DSP) firmware (

adsl.fls

) required to communicate with your DSLAM. When

inserted into the Compact Flash slot - upon first configuring an ATM interface - the XSR’s ADSL
driver will copy

adsl.fls

into host memory where it will remain available for use on demand. Be

aware that if all ATM interfaces are deleted,

adsl.fls

must be recopied into Flash.

Figure 2-14 Attaching T1 Drop & Insert Connector

Note: The XSR supports one installed ADSL NIM card type at a time (multiple installed cards must
be of the same type).

NIM 1

NIM 2

SECURITY R

OUTERS

XSR-3150

NIM 1

NIM 2

SEC

URITY

ROU

TER

XSR-3150
