Installing NIM Cards and Rack Mounting
XSR Getting Started Guide 2-3
4.
Remove the NIM slot cover, as shown in
, by grasping the handle and pressing it to
the side before pulling it out.

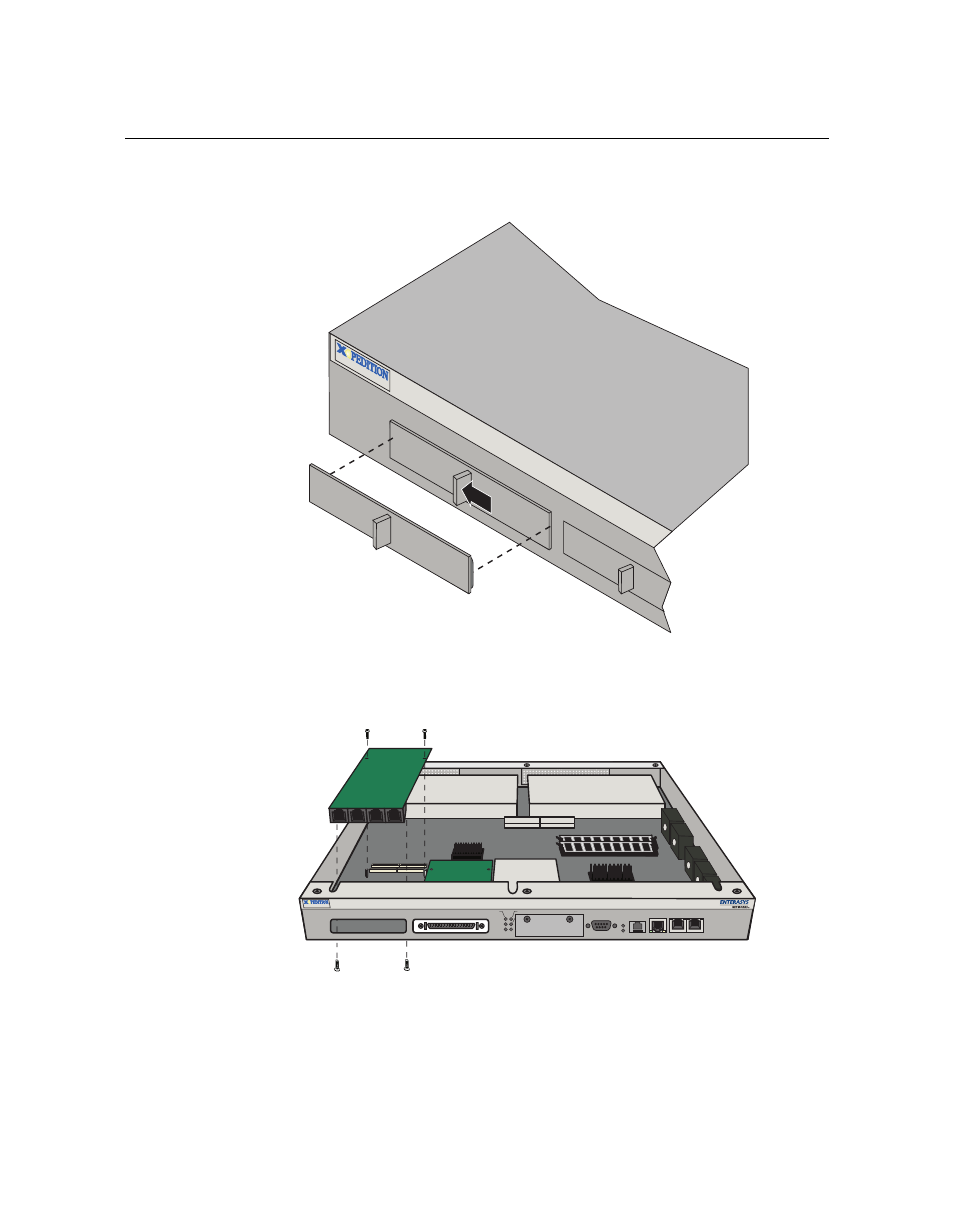

Figure 2-2 Removing NIM Slot Covers
5.
Carefully attach the NIM card(s) to the connector on the motherboard and secure with four
screws, as shown in
.
Figure 2-3 Attaching NIM card to Motherboard
6.
Re-install the chassis cover.
