Hardware features, Hardware features -2 – Enterasys Networks XSR-3150 User Manual
Page 22
System Description
1-2 Overview

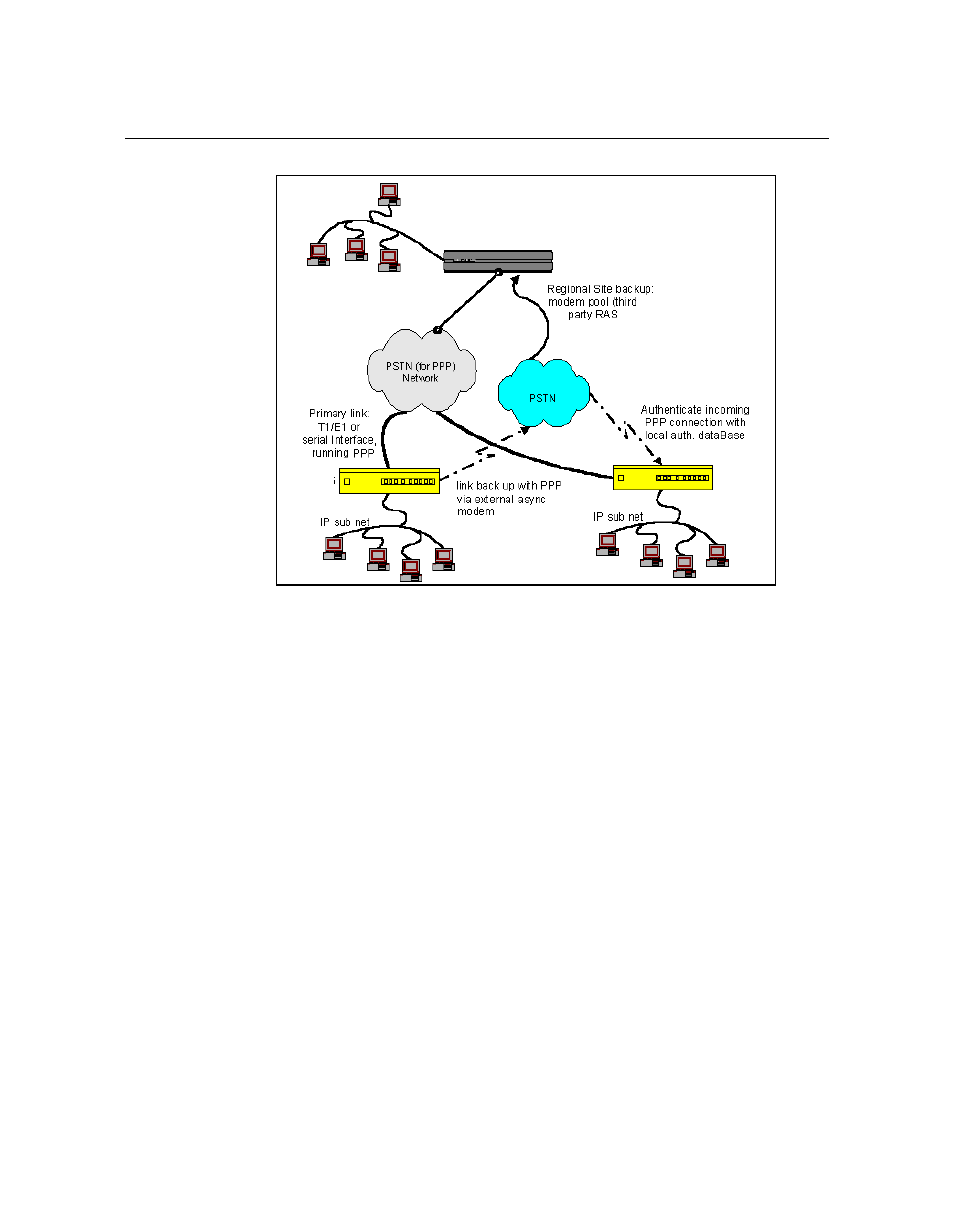

Figure 1-1 Typical XSR-3150 Topology
Hardware Features
The semi-modular XSR, shown in
, comes equipped with the following features:
•
Standard 1U chassis (1-11/16 inches high by 17 inches wide by 21 inches deep) mountable in a
standard 19” rack.
•
Broadcom 1250 dual-CPU, 64-bit processor (1700 Dhrystone MIPS @ 600 MHz) with load
balancing, 512 KByte on-chip Layer 2 cache, up to two co-issued, load-to-use instruction pairs
per cycle, and 32 KByte Instruction and Data caches.
•
Two, internal, universal (100 - 240 VAC) redundant power supplies with country-specific line
cords.
XSR
XSR
XSR-3150
