Cable, CompactFlash and Accessory Specifications
XSR Getting Started Guide A-17
Installing Shunt/Terminal Strip
To install the shunt or terminal strip, attach two dual-pin units vertically to P1 and P2 four-pin
jumpers corresponding to the RJ-45 port using a balun, as shown in
Figure A-20 . Any other RJ-45
ports on the NIM card connected to 120-ohm lines do not require shunts.

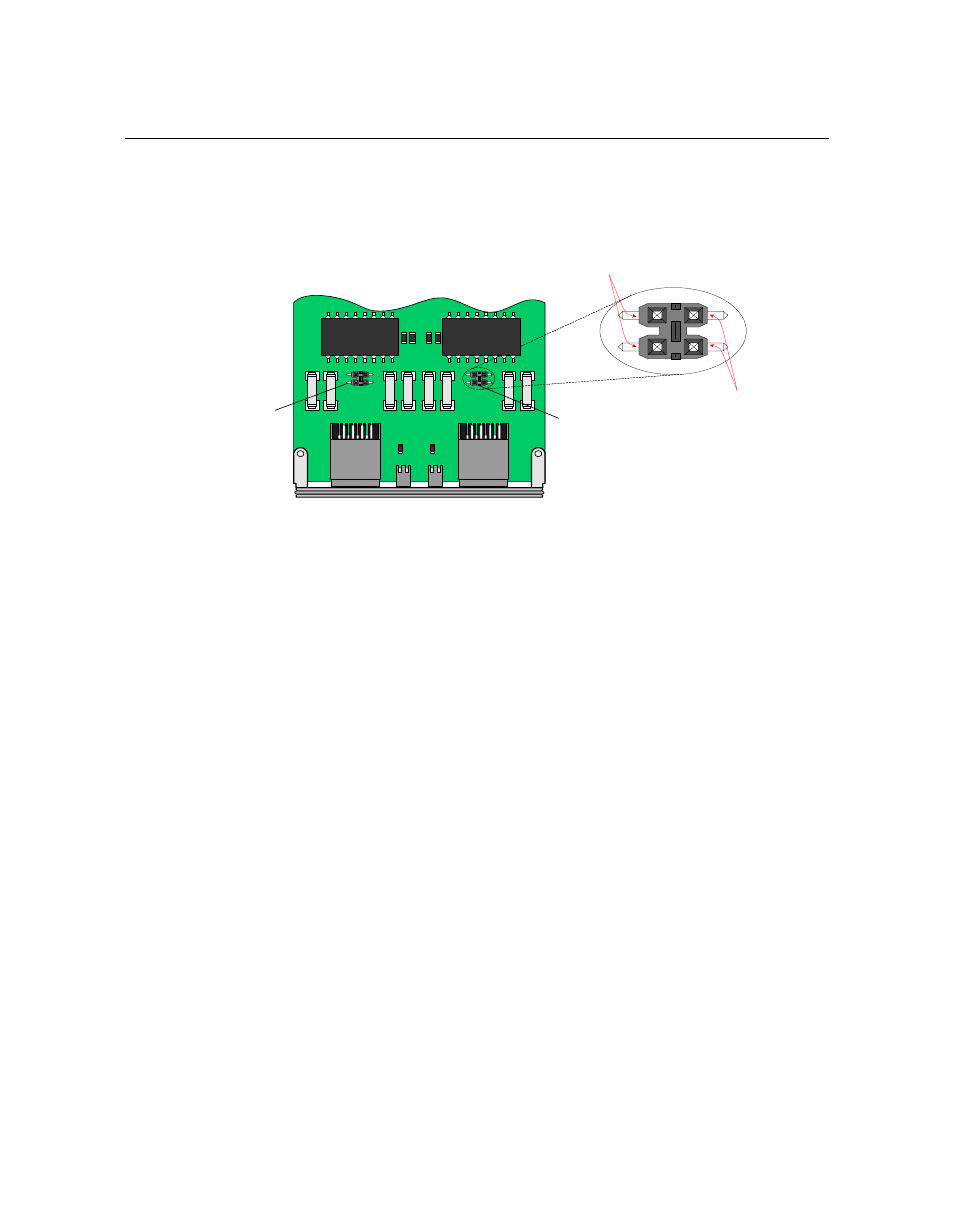

Figure A-20 Installing a Termination Shunt on BRI-S/T NIM Card
P2 P1
Port 0 Port 1
T1
T2
F1
4
F1
6
CR
1
F1
7
J1 J2
R eceive Pair Term ination
Transm it Pair Term ination
Port 0 Port 1
CR
2
R1
32
R1
33
F1
5
F1 F2 F3 F4 F5 F6 F7 F8
