Security Status screen in Figure 4-12-6 appears.

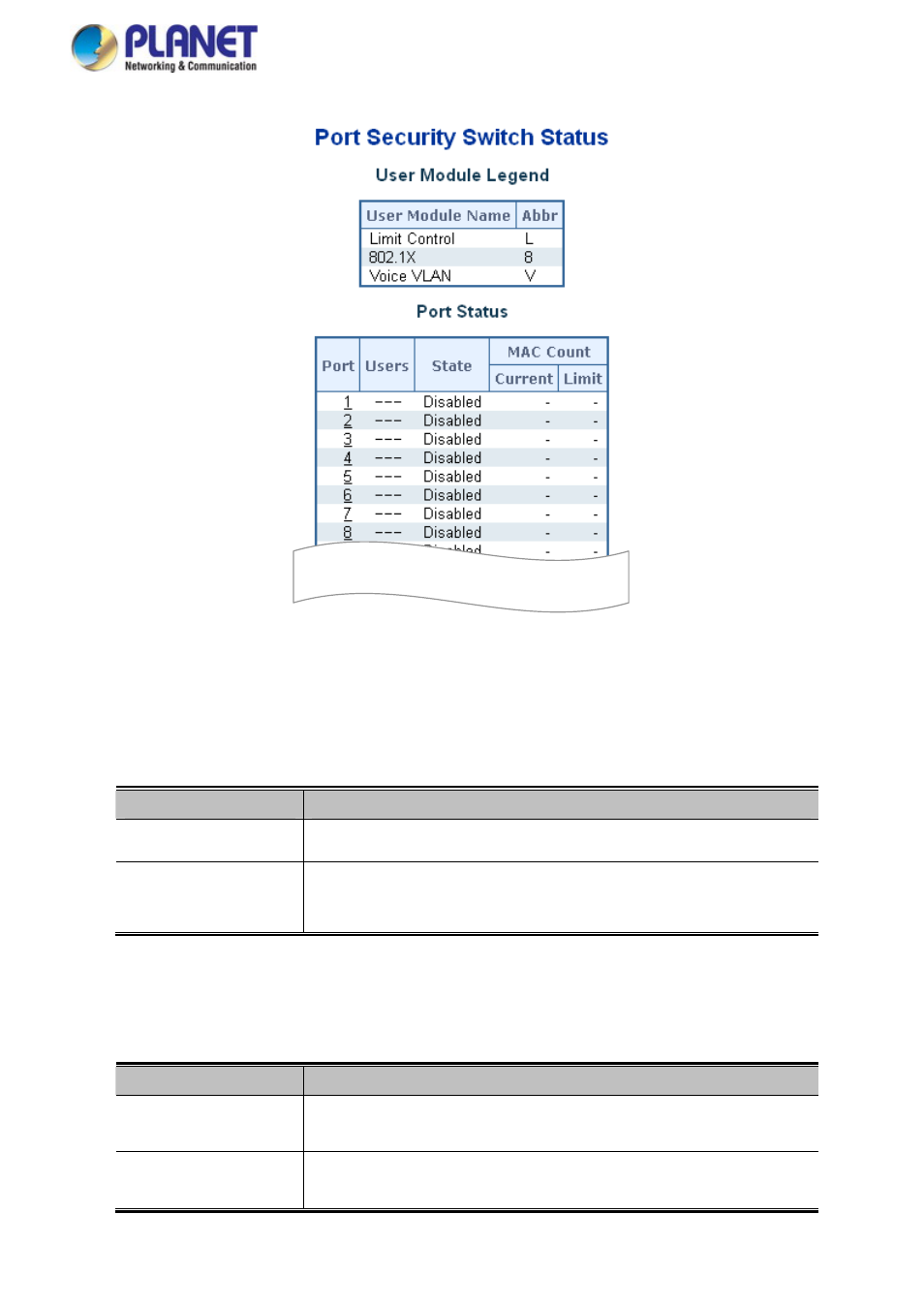

Figure 4-12-6: Port Security Status Screen Page Screenshot
The Page includes the following fields:
User Module Legend
The legend shows all user modules that may request Port Security services.
Object Description
The full name of a module that may request Port Security services.  User Module Name
A one-letter abbreviation of the user module. This is used in the Users column in
the port status table.
 Abbr
Port Status
The table has one row for each port on the selected switch in the switch and a number of columns, which are:
Object Description
The port number for which the status applies. Click the port number to see the
status for this particular port.
 Port
 Users Each of the user modules has a column that shows whether that module has
enabled Port Security or not. A '-' means that the corresponding user module is
