5. Using a vertical green line as your reference, adjust the
red and blue beams until the line is sharp, distinct, and
completely white. To do this, press and hold down the
- or + side of the Adjustment button to separate the red and
blue beams or move them closer together, as shown in the
table below. (The green beams remain in place.) A scale
of 0 to 9 is available and the factory setting is 4.

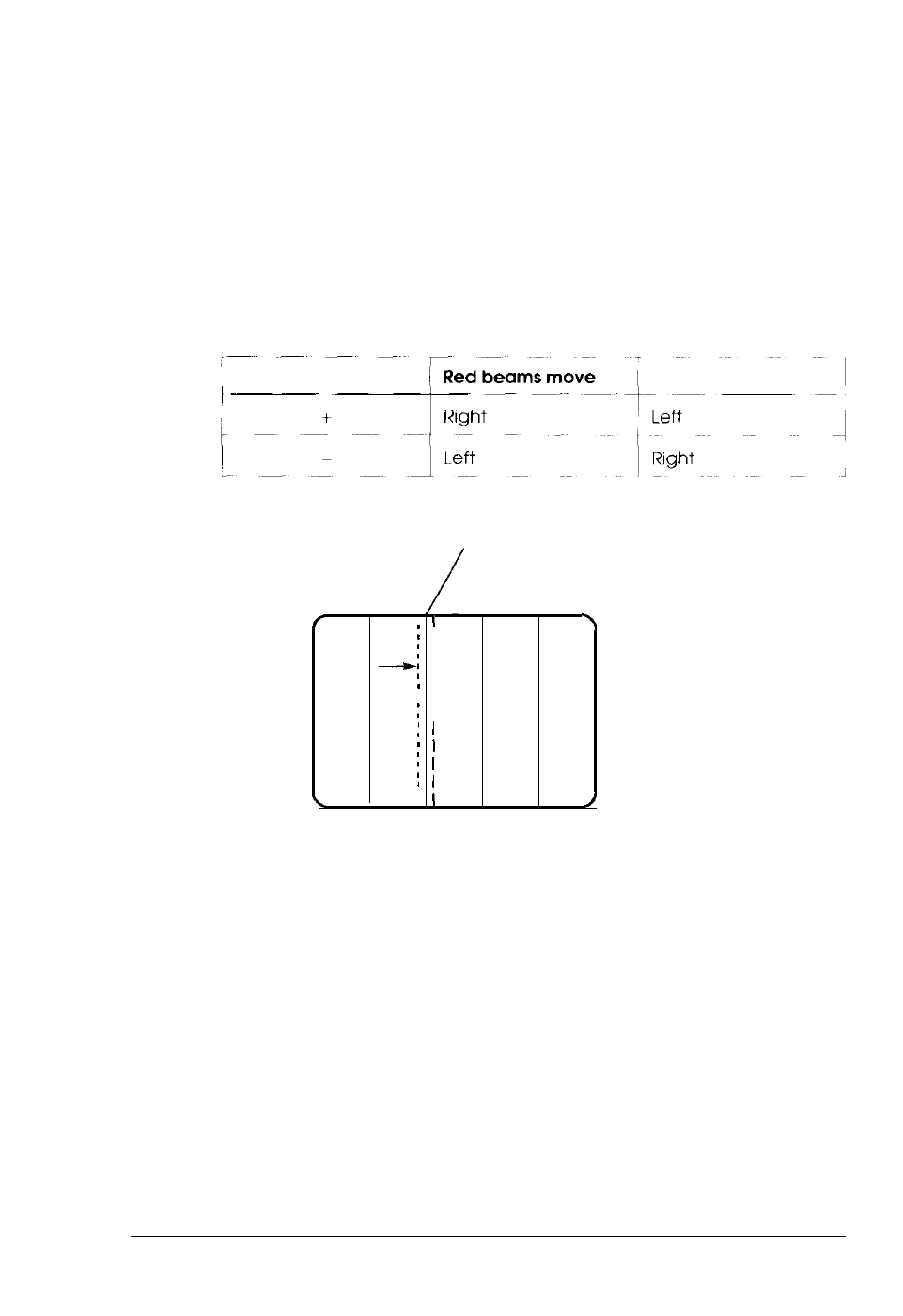

Adjusting the horizontal convergence
Adjustment button Blue beams move
g r e e n
I
I -
I I
I
vertical lines
r e d
\
b l u e
After 10 seconds, the LCD displays the number of the current
video mode or Mode not found. If you do not touch any
control panel buttons for 30 seconds, the monitor saves
your vertical and horizontal convergence settings. Your
settings remain in effect (even after you turn off the
monitor) until you adjust the convergence again.
