5. Plug the VGA connector on the color-coded video cable into
the computer’s VGA interface and tighten the connector
screws.

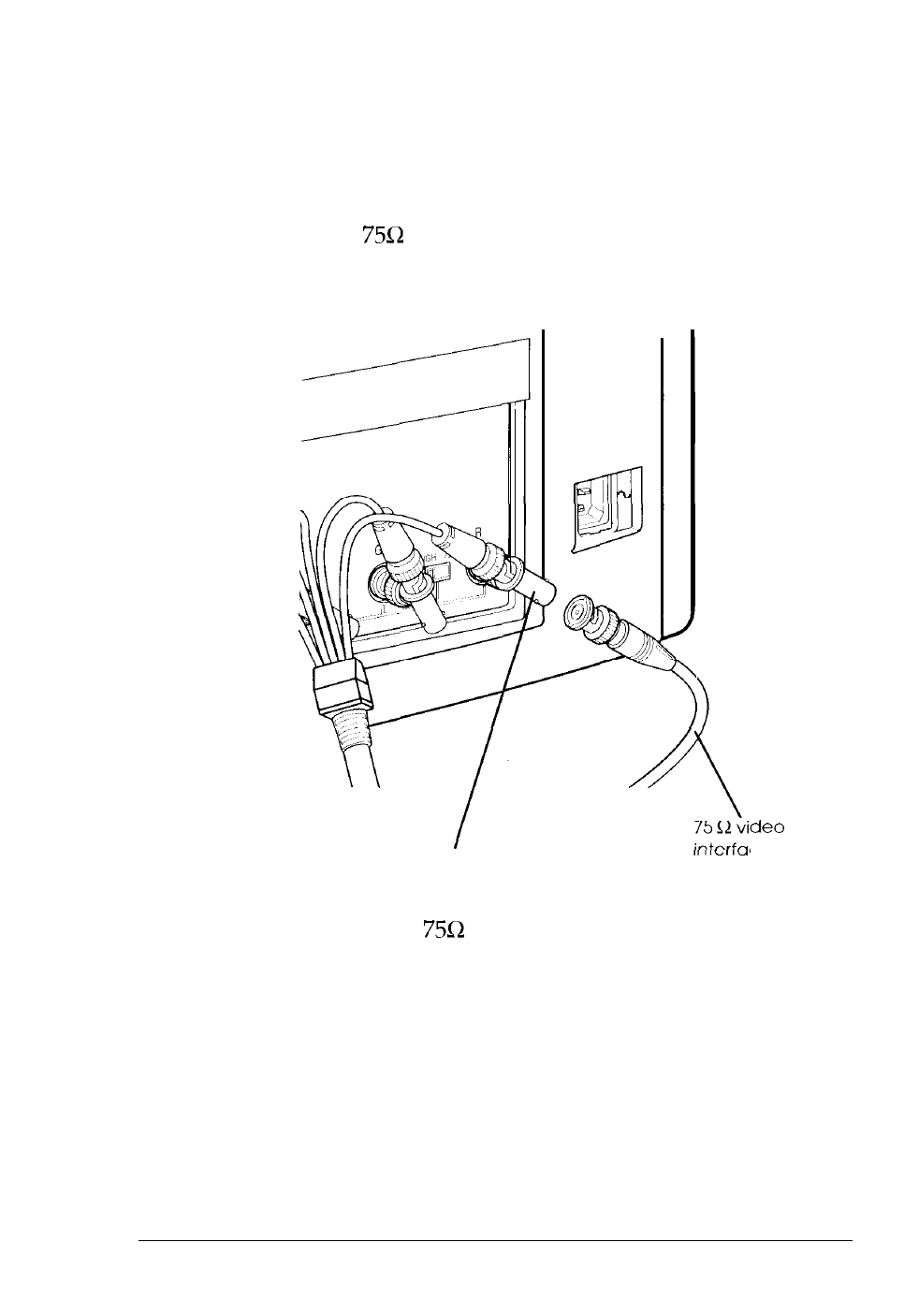

6. Connect one video interface cable to each T connector
on the first monitor, as shown below.
T connector
ce cable
7. Then connect each video interface cable to the
appropriate BNC connector on the second monitor.
Connect the cable from the T connector labeled
V to the
BNC connector labeled V, the cable from the T connector
labeled H/(HtV) to the BNC connector labeled H/(H+V), and so
on. The illustration on the next page shows two monitors
connected to the computer’s video interface.
Professional Series II Monitor 13
