Installation
I
NSTALLATION
OF
THE
TERMINAL

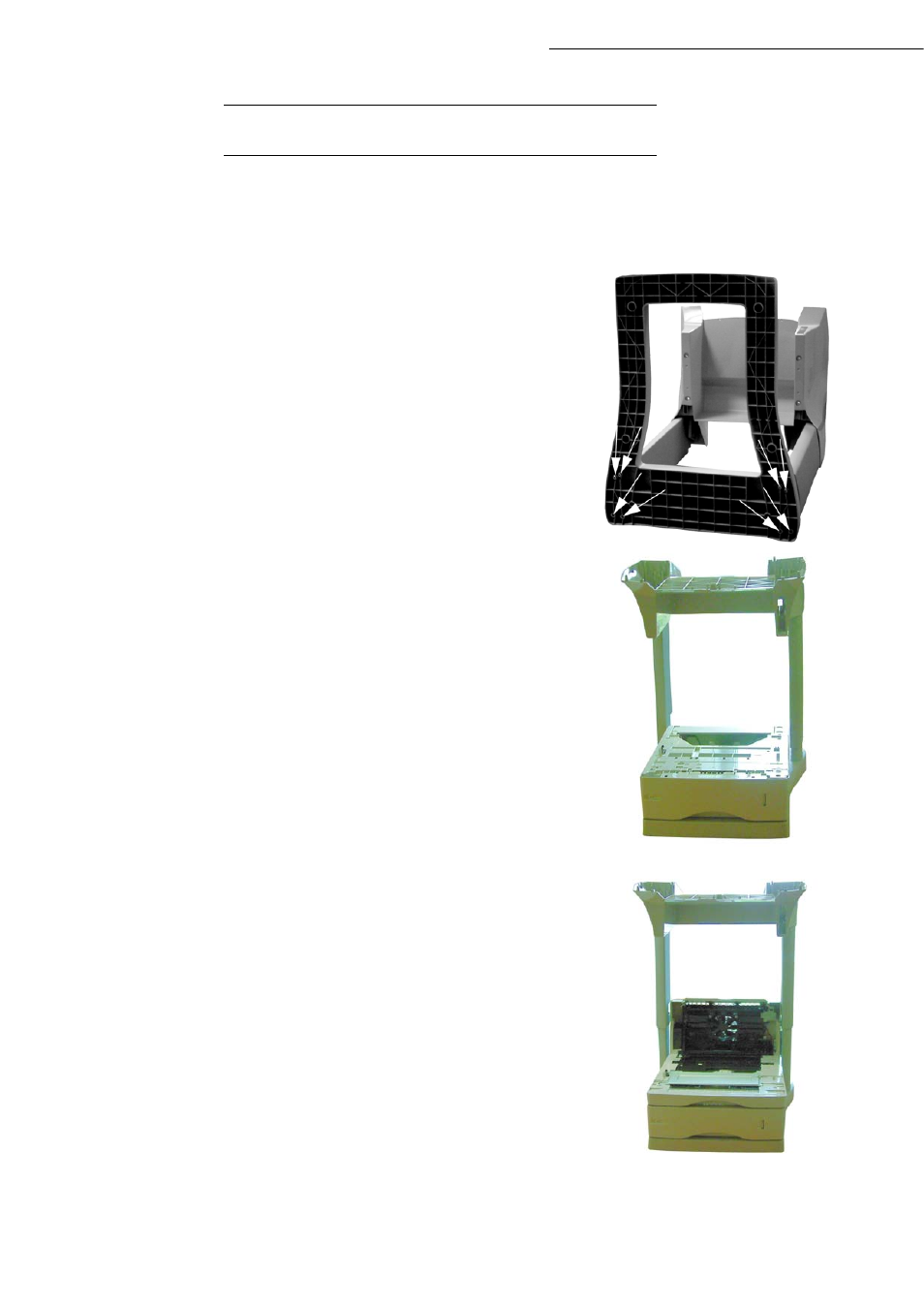

Installation of the base and the equipped interface
+
Set the base down vertically, and insert the
columns of the equipped mechanical interface
into their respective openings.
Screw in and tighten the 8 mounting screws.
Take hold of the upper part of the interface and
set the assembly upright.
+
Optional equipment:
Place the additional paper tray on the base,
positioning it on its locating pins.
You can install up to three additional paper
trays.
+
Optional equipment:
Place the duplex unit on the additional paper
tray, positioning it on its locating pins.
