- 4 -
3
!
Do not remove the Arm Connecting Screw.
Just loosen.
Each arm is fully angle
adjustable in +/- 35 degrees in
order to fit various types and
sizes of bike frame (see Fig. G).
!
Do not set both hooks higher than level.
The hook which holds the main load must
be located lower than the clamp body.
!
Tighten every bolt firmly before loading the
bike. If the arm fixing screws have been
loosened, they may come down due to the
bike weight and may drop the bike in the
worst case.

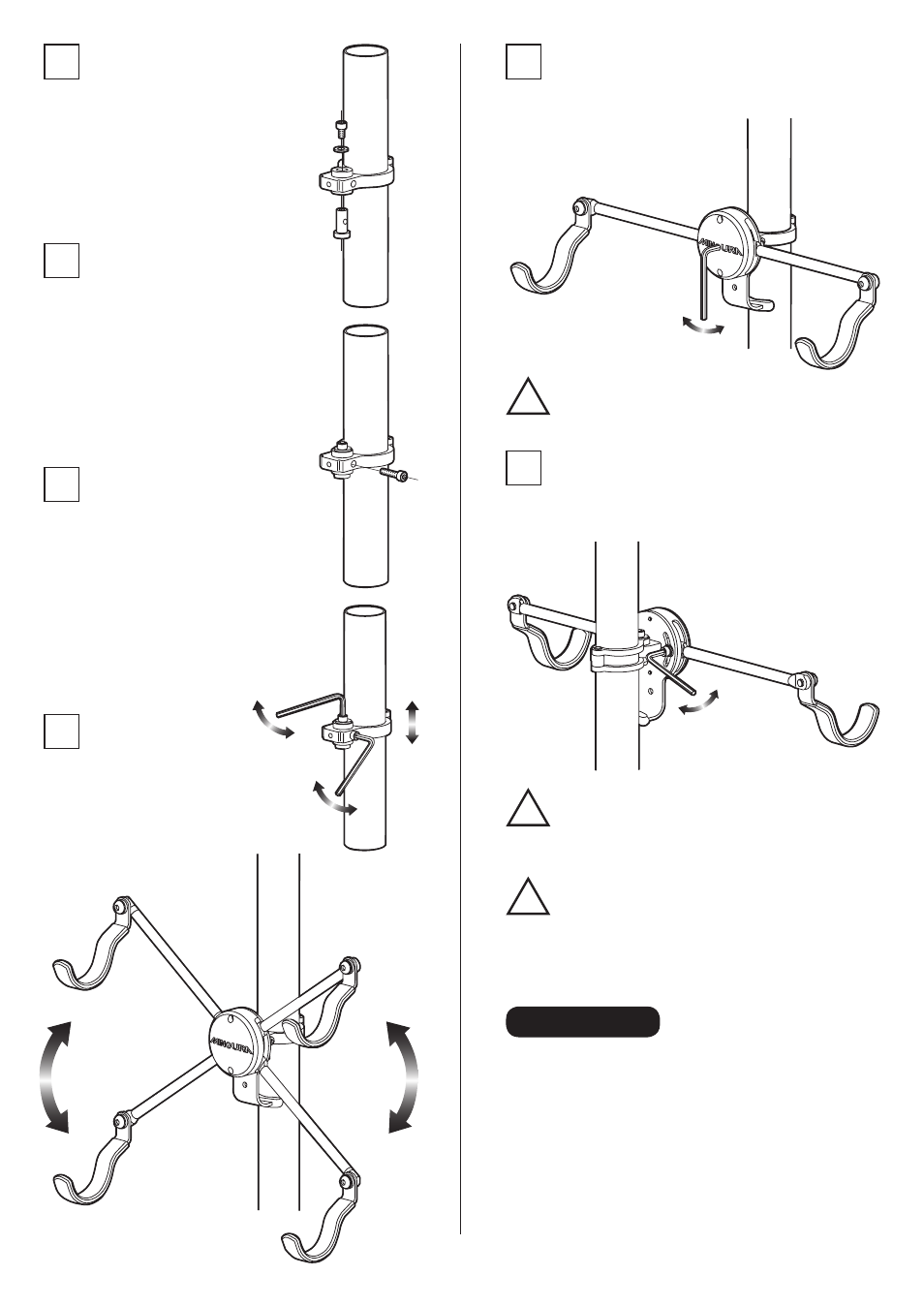

Insert the Pivot-Pin to the clamp from
bottom hole, and screw the Pivot-Pin
Fixing Screw with a washer to hold the
pin (see Fig. D).
You don't have to tighten the bolt
firmly yet.
4
Rotate the Pivot-Pin to align the thread
hole on the pin and the side hole on
the clamp body, then screw the Clamp
Tightening Screw.
(see Fig. E).
You don't have to tighten the bolt firmly
yet.
5
After fixing the clamp height
and angle, tighten the Clamp
Tightening Screw first (see Fig. F).
(Tightening Torque: 3 N.m)
After that, tighten the Pivot-Pin
Fixing Screw to secruely hold the
clamp.
(Fig. D)
(Fig. E)
(Fig. F)
6
(Fig. G)
7
To change the arm angle, insert an M5 hex
wrench into the center hole on the Cradle Cap
then loosen the Arm Connecting Screw.
(see Fig. H)
(Fig. H)
8
Loosen the backside screw which holds the arm,
grab the arm and change the arm angle.
After changing the angle, tighten the screw firmly.
(see Fig. I)
(Fig. I)
Contact
MINOURA JAPAN
1197-1 Godo, Anpachi, Gifu 503-2305
Phone +81-584-27-3131 / Fax +81-584-27-7505
[email protected] / www.minoura.jp
Made in Japan
If you need help or have a question, please contact the shop first
where you originally purchased this product.
If you cannot get enough service or answer from them, you can
contact us directly.
