3.4. PLUMBING SYSTEM CONNECTION
IMPORTANT!
The connection of the stove to the plumbing system
must be made ONLY by specialized personnel who
are capable of carrying out installation properly, in
compliance with current standards in the country of
installation.
MCZ will not be held responsible for damage to
persons or things in the event of failed operation if
the aforementioned warning is not complied with.

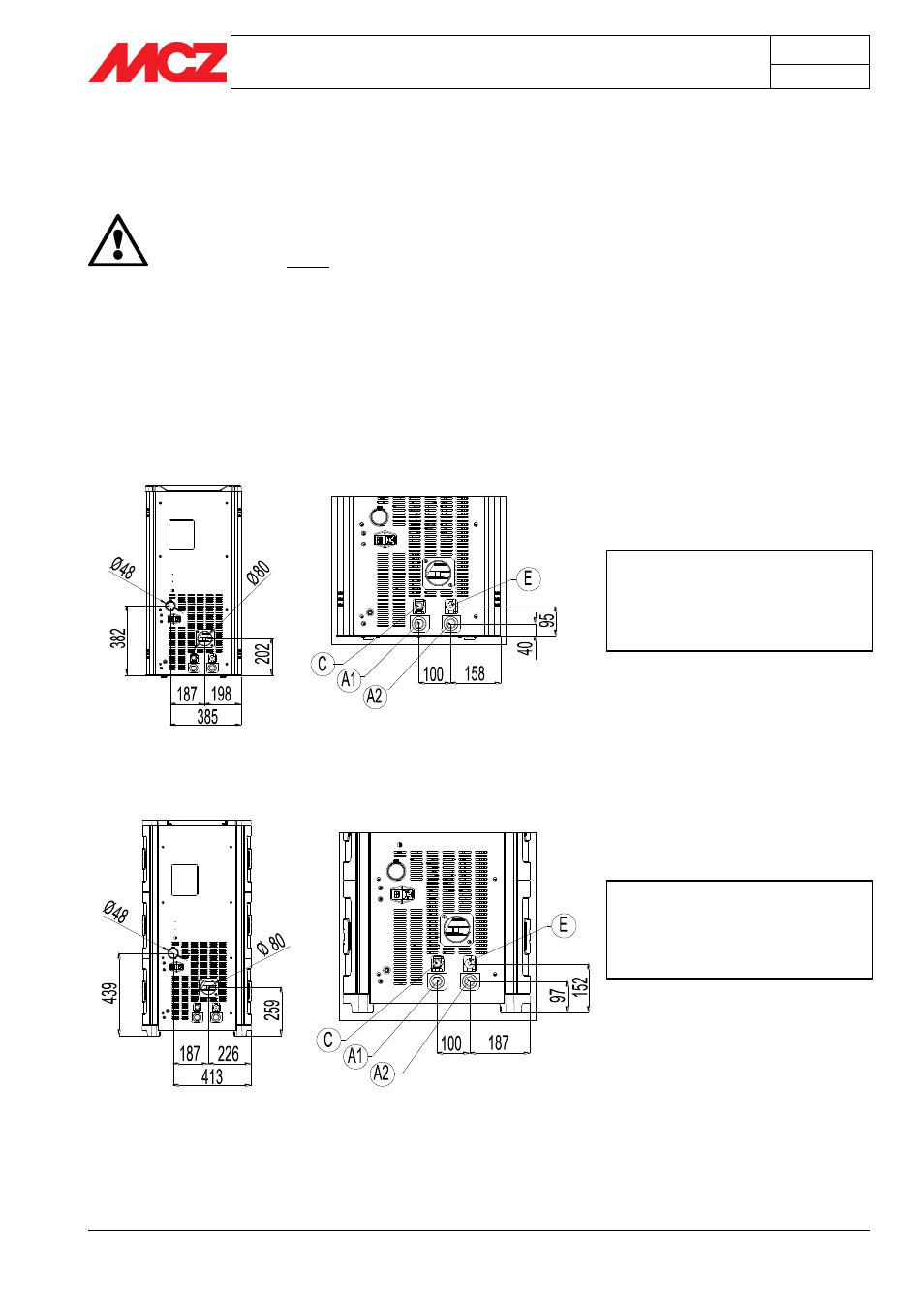

CONNECTION DIAGRAM FOR EGO-STAR HYDRO STOVE
CONNECTION DIAGRAM FOR SUITE-CLUB HYDRO STOVE
A1=Heating water delivery 3/4”M
A2=Heating water return 3/4”M
C=Safety valve 3 bar – 1/2”F
E=System emptying 1/2”F
A1=Heating water delivery 3/4”M
A2=Heating water return 3/4”M
C=Safety valve 3 bar – 1/2”F
E=System emptying 1/2”F
