Disassembly and Assembly
Removing the Printhead
1. Remove the paper guide assembly, ribbon, top cover, front cover, paper eject cover, and tractor
unit. (See page 4-5.)
2. Remove the two CBS screws the printhead, lift the printhead up, and remove the
FFC cable.
3. Remove the printhead.
FFC

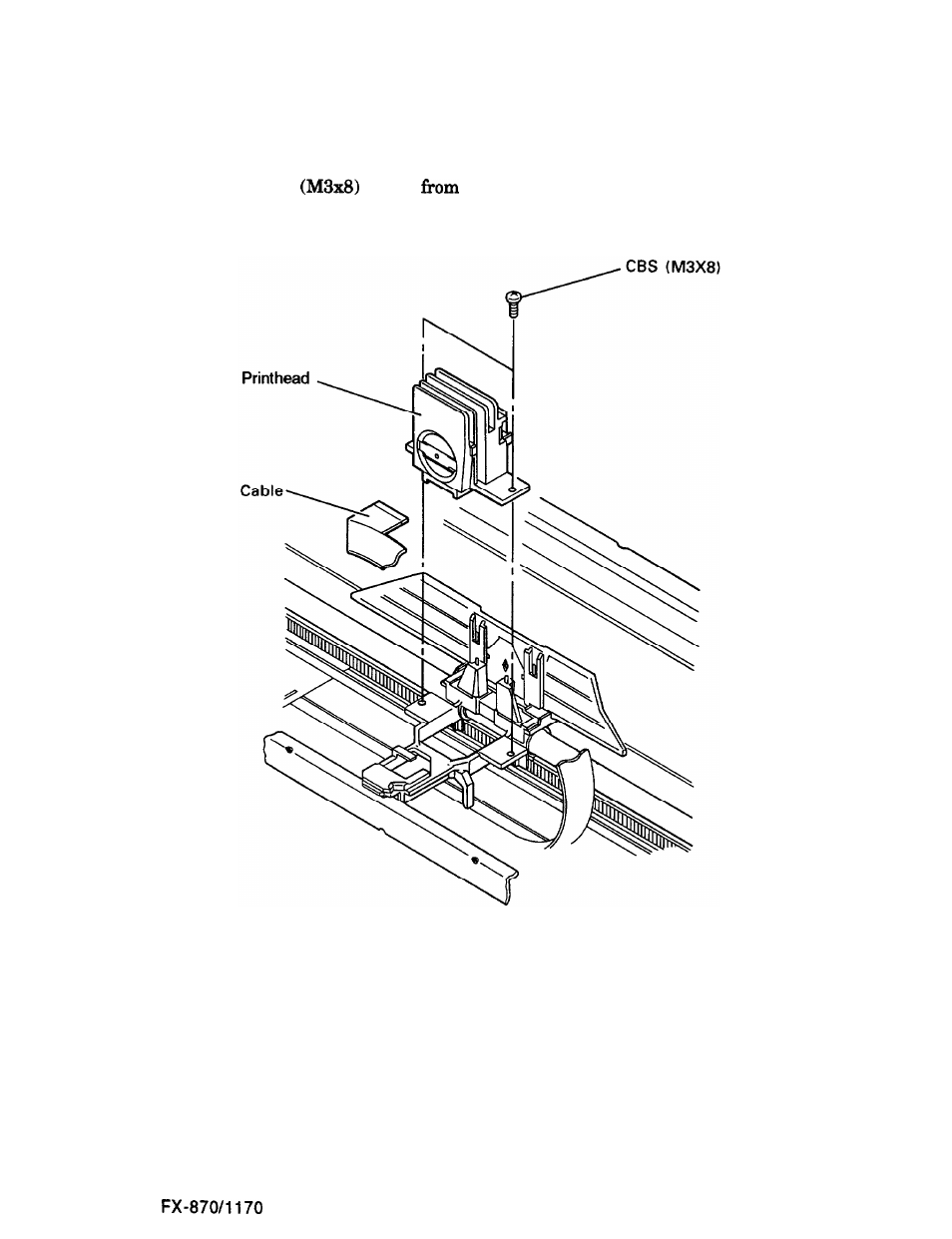

Figure 4-5. Removing the Printhead
E p s o n
4-7
