Switching Between Images
(continued)
Input/output
settings
Intr
oduction
Connections
Basic operation
Switc
hing ima
g
e
s
Eff
ects
BPM sync
External de
vices
Video fader
Appendices

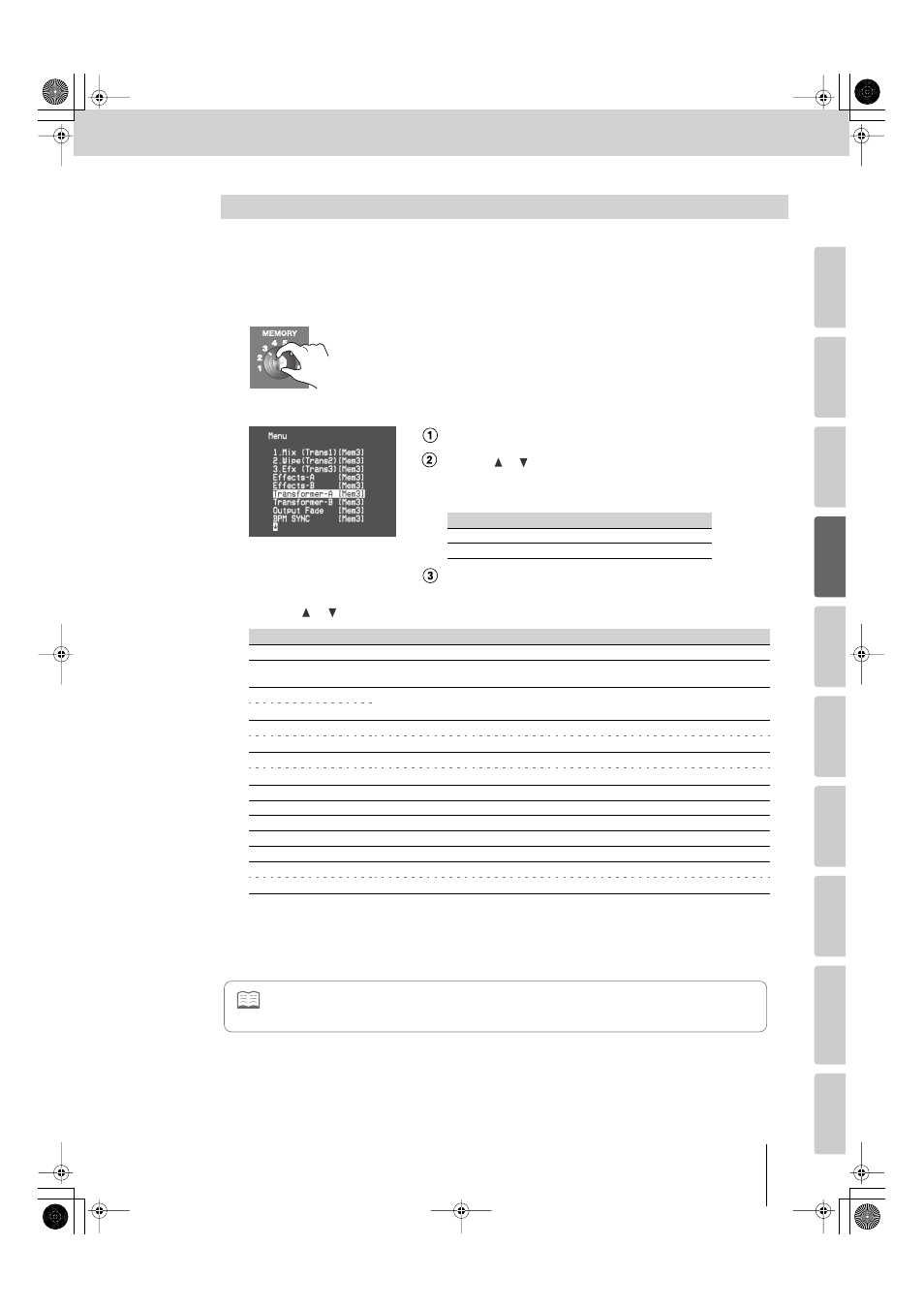

You can change the duration or operation of the transition that occurs when you use the [TRANSFORMER] buttons to switch
between images.
You can also assign a TRANSITION button or EFFECTS button to a [TRANSFORMER] button, and use it to control a
transition or effect.
1
Turn the [MEMORY] knob to select the memory number 2–8 whose settings you want to edit.
* Memory number 1 contains the factory preset settings (p. 28). These settings
cannot be modified.
2
Press the [MENU] button to access the menu, and choose “Transformer-A” or “Transformer-B.”
Press the [MENU] button to access the menu.
Use the [
] [
] buttons to select “Transformer-A” or
“Transformer-B.”
Choose the menu item for the button whose setting you want to edit.
Press the [ENTER] button to confirm your selection.
3
Use the [
] [
] buttons to specify the operation of the [TRANSFORMER] button.
*1 The numbers 0–9 indicate the time taken by the transition. Higher numbers produce a longer transition time.
*2 The numbers 1–4 indicate the number of an EFFECTS button.
4
Press the [MENU] button several times to close the menu.
Changing the Assignment of the [TRANSFORMER] Buttons
Button
Menu item
Bus A [TRANSFORMER] button
Transformer-A
Bus B [TRANSFORMER] button
Transformer-B
Value
Details
01: None
The [TRANSFORMER] button will not do anything.
02: Trans
The image of the bus whose button you press will be output as long as you hold down the
[TRANSFORMER] button.
03: A<->9 – 12: A<->0
*1
03: 9<->B – 12: 0<->B
*1
The bus A and bus B images will alternate each time you press the [TRANSFORMER] button.
13: A<-9 – 22: A<-0
*1
13: 9->B – 22: 0->B
*1
The output will switch to the bus A image when you press the [TRANSFORMER] button.
The output will switch to the bus B image when you press the [TRANSFORMER] button.
23: A->9 – 32: A->0
*1
23: 9<-B – 32: 0<-B
*1
The output will switch to the bus B image when you press the [TRANSFORMER] button.
The output will switch to the bus A image when you press the [TRANSFORMER] button.
33: White
A white image will be output while you hold down the [TRANSFORMER] button.
34: Black
A black image will be output while you hold down the [TRANSFORMER] button.
35: MIX
The [1 MIX] button will be selected while you hold down the [TRANSFORMER] button.
36: WIPE
The [2 WIPE] button will be selected while you hold down the [TRANSFORMER] button.
37: EFX
The [3 EFX] button will be selected while you hold down the [TRANSFORMER] button.
38: EFXA1 – 41: EFXA4
*2
38: EFXB1 – 41: EFXB4
*2
The bus A EFFECTS button will turn on while you hold down the [TRANSFORMER] button.
The bus B EFFECTS button will turn on while you hold down the [TRANSFORMER] button.
the position of the video fader will not match the actual output. If you set the “Utility” menu item “Video Fader Mode” to “Quick,”
the output will change to match the fader position when you move the video fader slightly (p. 78).
