Switching Between Images (continued)
Input/output
settings
Intr
oduction
Connections
Basic operation
Switc
hing ima
g
e
s
Eff
ects
BPM sync
External de
vices
Video fader
Appendices

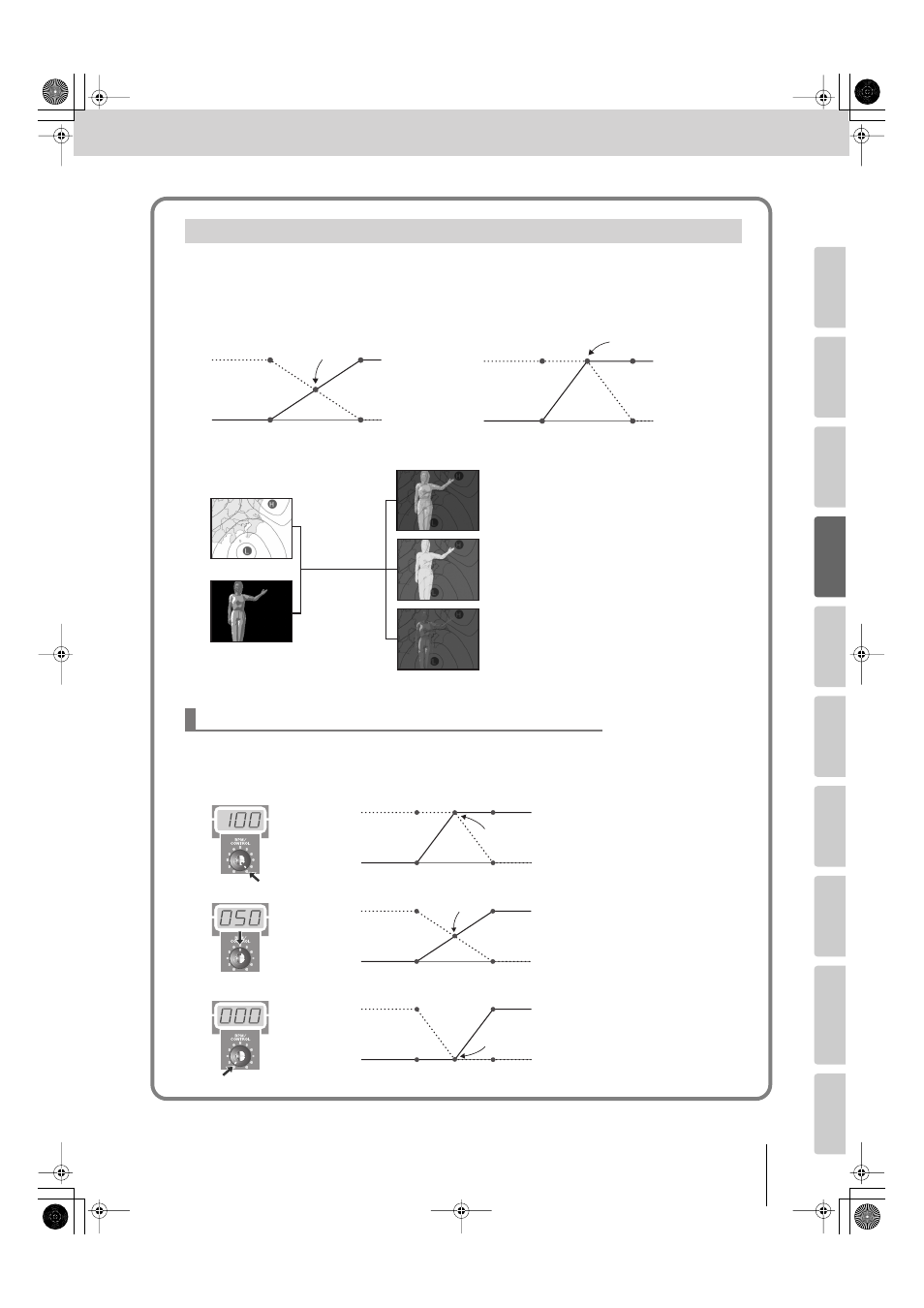

The transition effects built into the V-8 include FAM (Full Additive Mix) and NAM (Non-Additive Mix). Speaking simply, FAM
and NAM are special dissolve transitions that compare the brightness (luminance) of two images in order to determine the
degree of compositing.
If you select “003: Fam ✽” or “005: Nam✽” which have an “✽” (asterisk) following the transition name, you’ll be able to
use the [BPM/CONTROL] knob to change the cross point of the FAM/NAM.
At this time, the FAM/NAM cross point level will blink in the BPM display. The cross point level range is 0–100.
About the FAM and NAM Transition Effects
Changing the cross point of the FAM/NAM (003: Fam ✽, 005: Nam✽)
● Dissolve transition (001: Mix01) ● FAM transition (002: Fam01, 003: Fam ✽)
● NAM transition (004: Nam01, 005: Nam ✽)
Dissolve transition
The transition between images takes place by simply raising or
lowering the video level. The luminance of the composite image
will be less in the region of the cross point.
FAM transition
The images will transition with the luminance level held steady.
NAM transition
The two images will be compared, and the pixels that have a
higher brightness level will be shown while the images are
switched.
Video fader
A B
Bus A image
Bus B image
Cross point
Video fader
A B
Bus A image
Bus B image
Cross point
Bus A
Image at the cross point
Bus B
Video fader
A B
Bus A image
Bus B image
Cross point
Cross point
Video fader
A B
Bus A image
Bus B image
Cross point
Video fader
A B
Bus A image
Bus B image
