Basic Operation (continued)
26
You can use the preview monitor to view the current settings.
These settings are displayed only while the final output image is being sent to the preview output ([OUTPUT] button is lit).
Settings are not displayed while channels 1–8 are being sent to the preview output.
* You can change the contents of the information that will be displayed. The screen shown below is an example of
“Mode3,” which shows the most information about the settings. For details, refer to “Changing the Contents of the
Settings Display” (p. 27).
fig.preview-screen-e.eps
● Effect indication
fig.preview-efx-e.eps
If you’re able to use the [CONTROL] fader to change the effect
settings, a
● symbol is shown beside the effect name.
* For details on the effects whose settings you can control refer to
“Effects that can be controlled by the [CONTROL] faders”
(p. 42).
● Video fader position indication
fig.preview-faderB.eps
This indication is shown when you’re using the BPM Sync function
(p. 60).
fig.preview-fader-position-e.eps
This indication is shown when the position of the video fader differs
from the actual output.
● Bus fade indication
fig.preview-fade-e.eps
When the [CONTROL] faders can be used to fade the bus image
(p. 31), a
● symbol is shown beside the “FADE” indication.

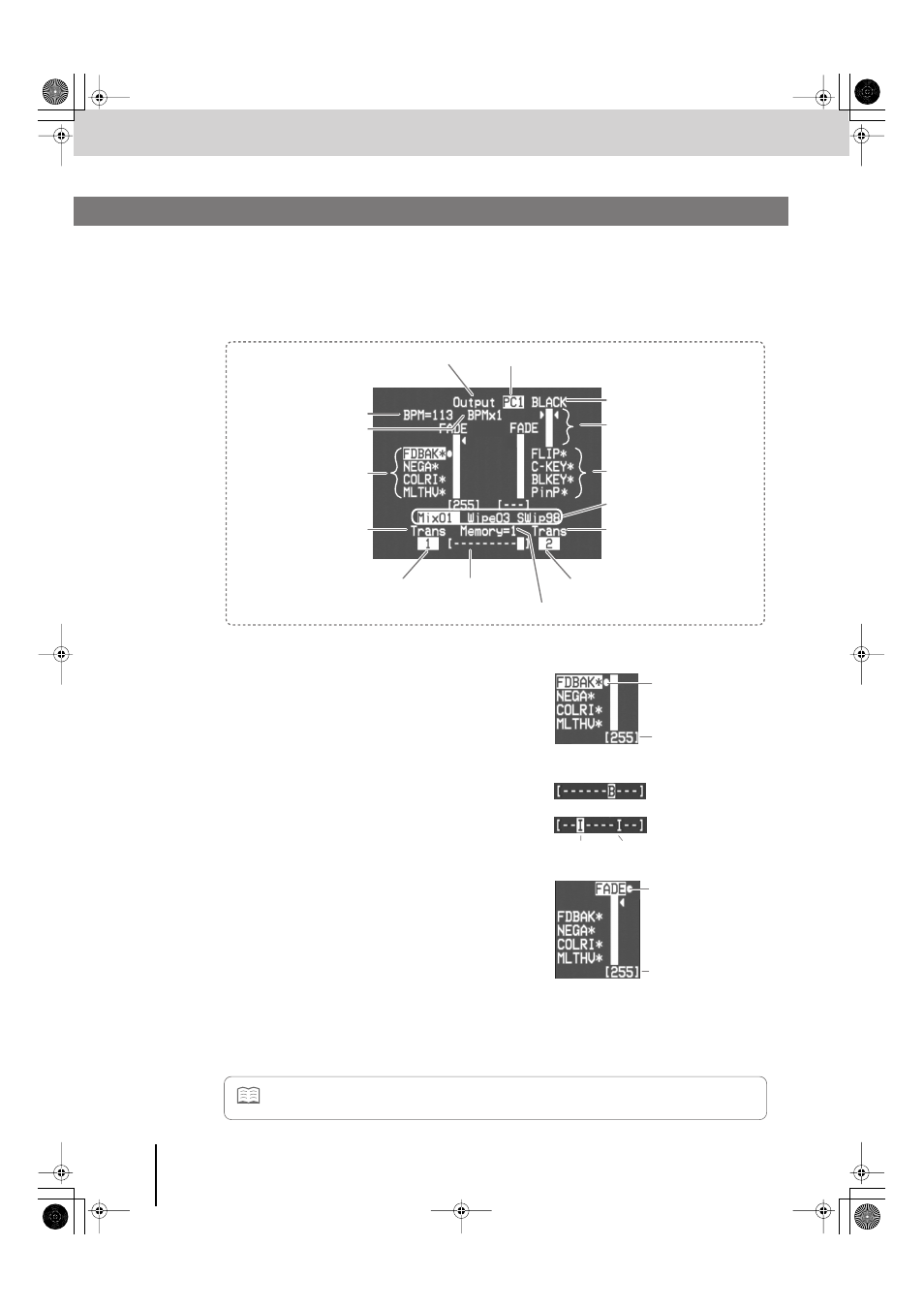

About the Current Settings Display
Preview output channel
[PC INPUT SELECT] switch setting
BPM setting
“BPM SYNC” menu
“Speed” setting
[WHITE/BLACK] switch setting
[OUTPUT FADE] fader position
Bus A effect setting and selection
status (highlighted=selected)
TRANSITION button setting and
selection status
(highlighted=selected)
Video fader position
[MEMORY] knob selection
Bus A INPUT SELECT button selection Bus B INPUT SELECT button selection
Bus B effect setting and selection
status
(highlighted=selected)
Bus A [TRANSFORMER]
button setting
Bus B [TRANSFORMER]
button setting
● symbol
Value of effect setting
Actual output Physical video fader position
● symbol
Bus output level
• You can cause the settings to be hidden while you hold down the [OUTPUT] button.
• The settings display is not shown while the menu is displayed (p. 24).
