23
Basic Operation (continued)
Input/output
settings
Intr
oduction
Connections
Basic operation
Switc
hing ima
g
e
s
Eff
ects
BPM sync
External de
vices
Video fader
Appendices
By accessing menus you can make settings for the large variety of features, such as transitions and effects, that the V-8
offers.
For details on the menu items, refer to “Menu List” (p. 81).

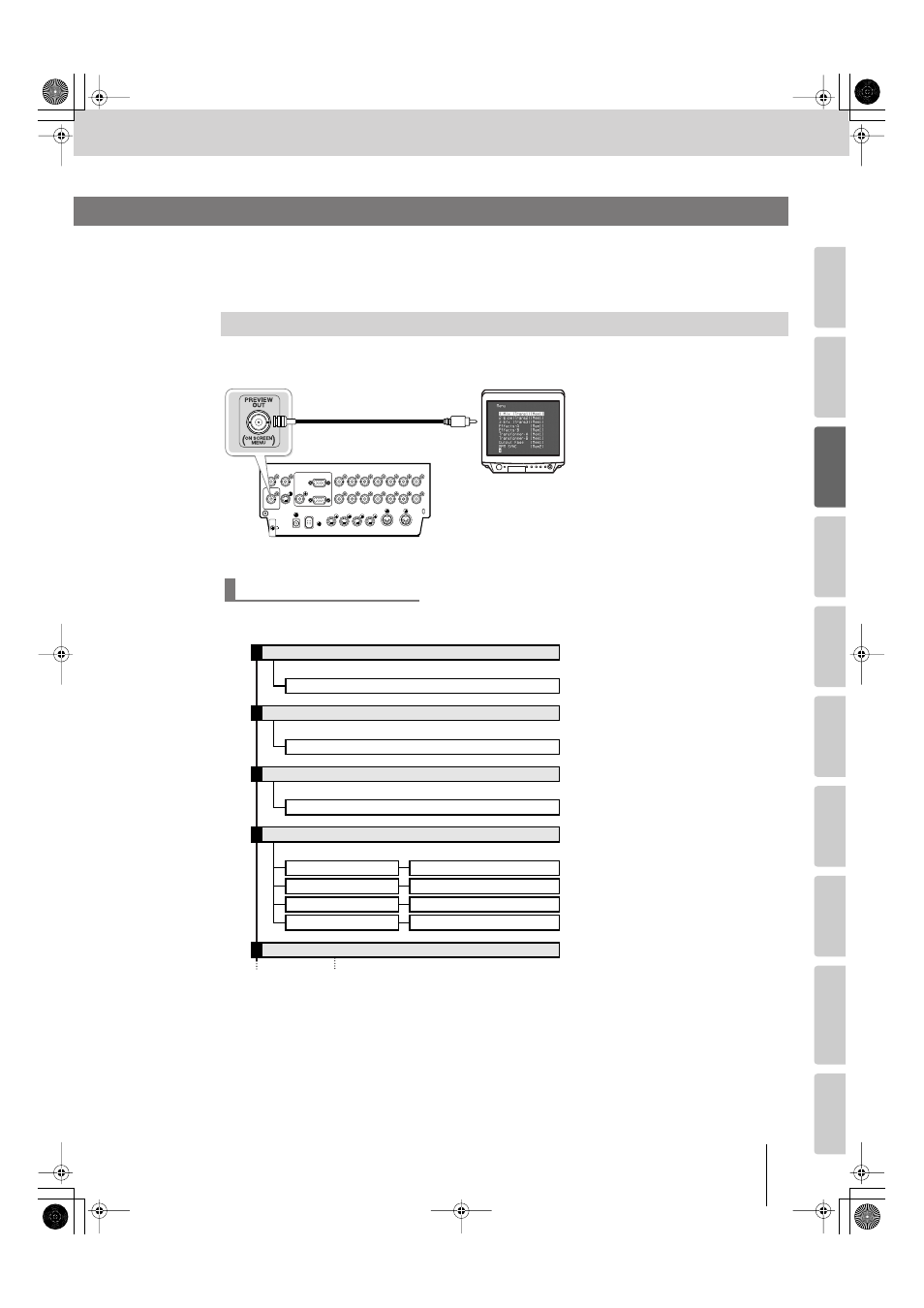

The menu is shown on the TV monitor connected to the PREVIEW OUT connector. You’ll need to have your TV monitor
connected to the PREVIEW OUT connector and ready for use.
fig.connect-monitor-e.eps
Menus are arranged as shown in the figure below. The value are set in the lowest level in each respective parameter.
fig.menu-images-e.eps
Preparations for Viewing the Menu
About menu levels
Menu Operations
TV monitor
V-8 Rear panel
1. Mix (Trans1)
001: Mix01, 002: Fam01, 003: Fam ✽, ...
2. Wipe (Trans2)
001: Mix01, 002: Fam01, 003: Fam ✽, ...
A-Efx1
A-Efx2
A-Efx3
A-Efx4
3. Efx (Trans3)
Effects-A
001: Mix01, 002: Fam01, 003: Fam ✽, ...
Effects-B
Value
Main menu
Value
Value
001: STILL1, 002: STILL2, ...
001: STILL1, 002: STILL2, ...
001: STILL1, 002: STILL2, ...
001: STILL1, 002: STILL2, ...
Sub-menus Value
