FOX 2G Tx/Rx AV • Configuration
Configuration, cont’d
3-20
Audio Adjustment area

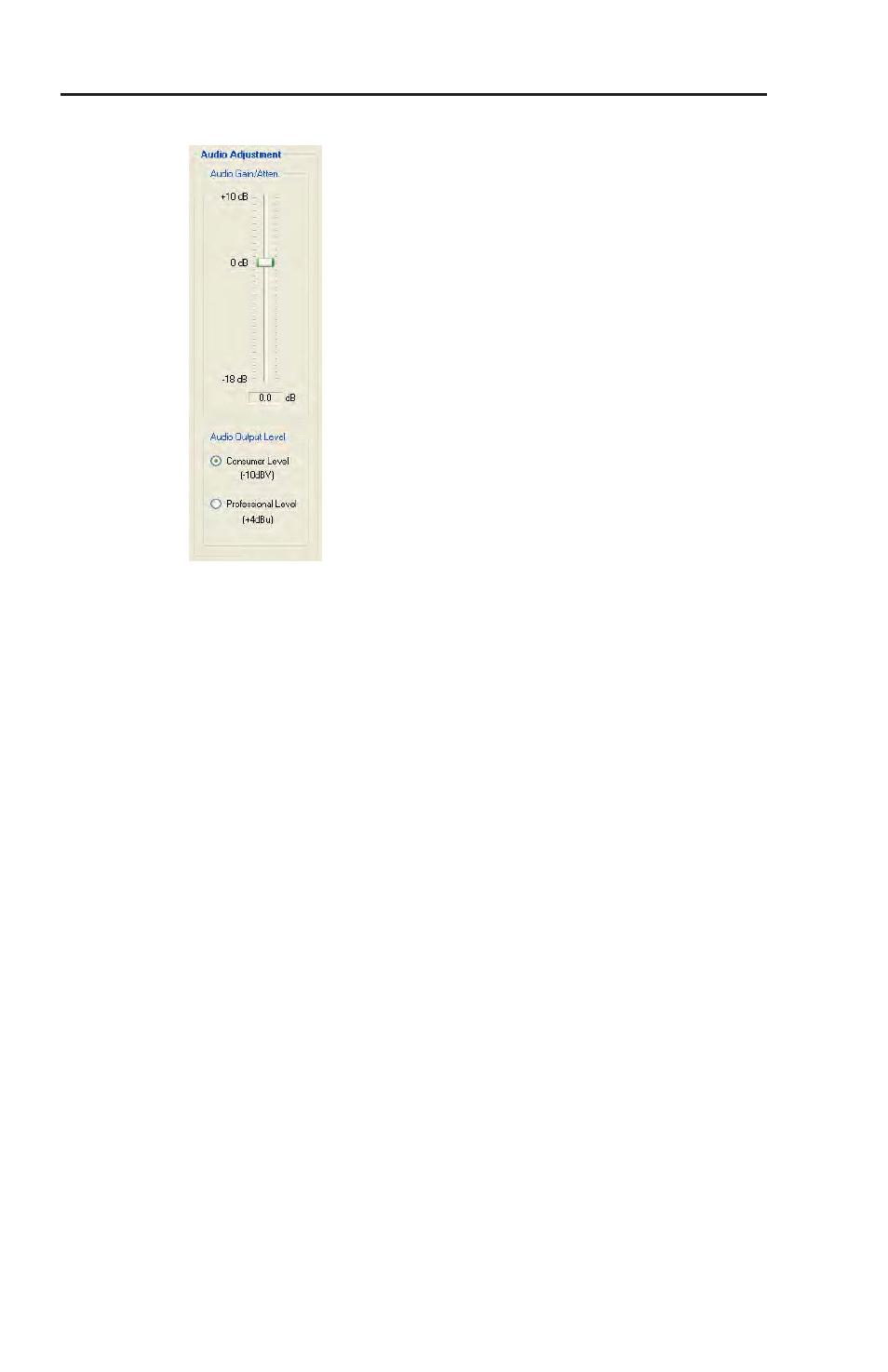

Figure 3-13 — Audio Adjustment area
Audio Gain/Attenuation — Provides a click and drag slider
control to select the input audio gain or attenuation value, from
-18 dB to +10 dB in 1.0 dB increments.
N Changes to the input gain or attenuation are made in
the transmitter. If the control computer is connected
to the receiver and Link 2 is not active, the gain and
attenuation values cannot be changed.
Audio Output Level — Provides radio buttons to allow a choice
between consumer level (-10 dBV) or professional level (+4 dBu)
for the audio output.
