Rack mounting procedures – Extron electronic FOX 2G Tx User Manual
Page 15
FOX 2G Tx/Rx AV • Installation and Setup
Rack mounting procedures
The units can be mounted in the front or rear of the:
RSU 126 (6" deep, 1U rack shelf kit: PN
•
60-190-10
)
RSB 126 (6" deep, 1U basic rack shelf: PN
•
60-604-10
)
RSU 129 (9.5" deep, 1U rack shelf kit: PN
•
60-190-01
)
RSB 129 (9.5" deep, 1U basic rack shelf: PN
•
60-604-01
)
To mount the units, follow these instructions:
1.
Remove the rubber feet if these have been installed on the
bottom of the unit.
2.
Align the unit on the shelf and secure it to the shelf with
two 4-40 x 3/16" screws in diagonally opposite corners (see
figure 2-1 below).
3.
Install false faceplate(s) or other unit(s) to the rack shelf.
4.
Attach the shelf to the rack with the four provided
10-32 x 3/4" bolts.

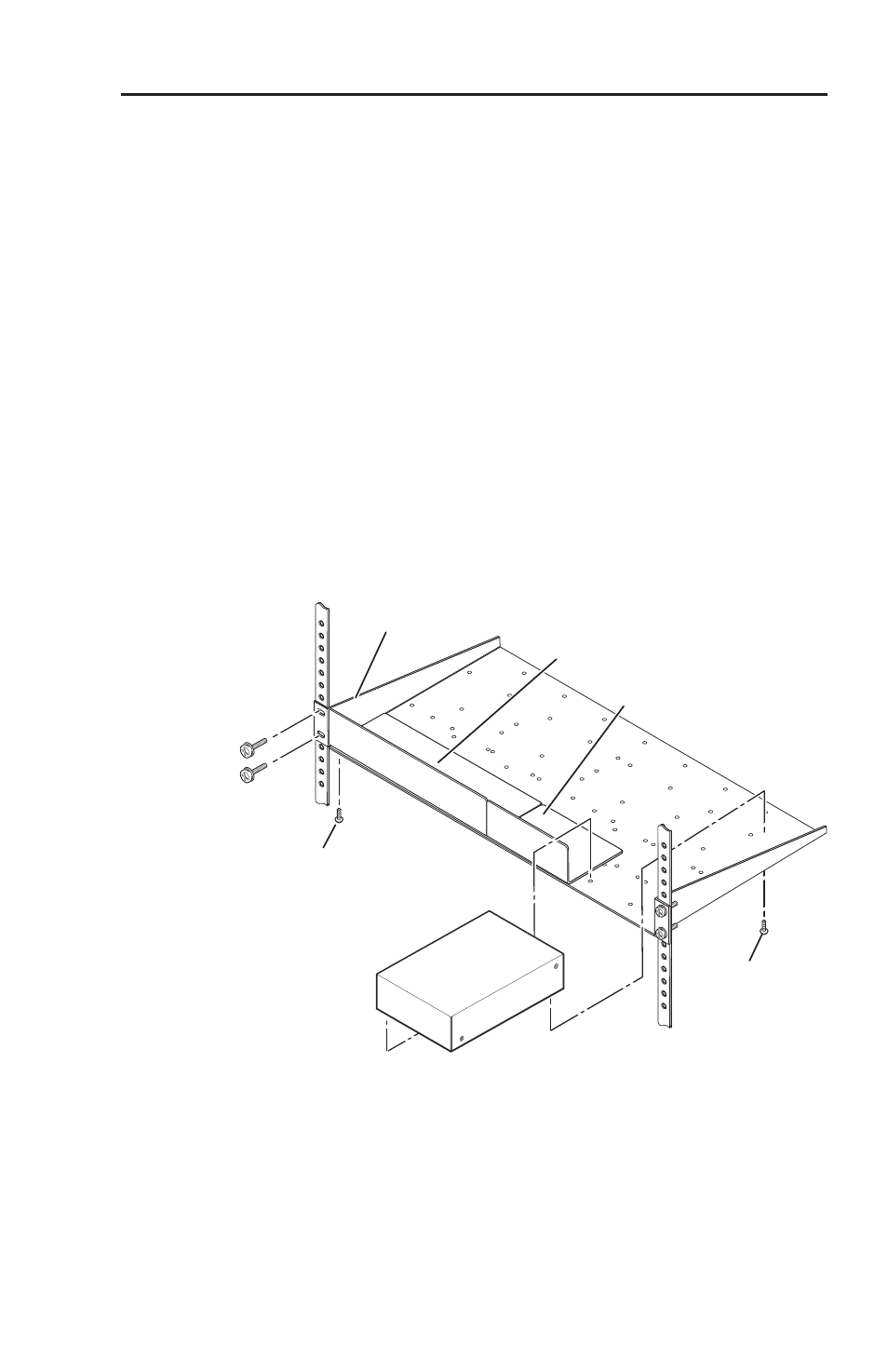

Use 2 mounting holes on
opposite corners.
(2) 4-40 x 3/16"
Screws
1U Universal Rack Shelf
Both front false faceplates
use 2 screws.
1/4 Rack Width Front False
Faceplate
1/2 Rack Width Front False
Faceplate
Figure 2-1 — Rack mounting
2-3
