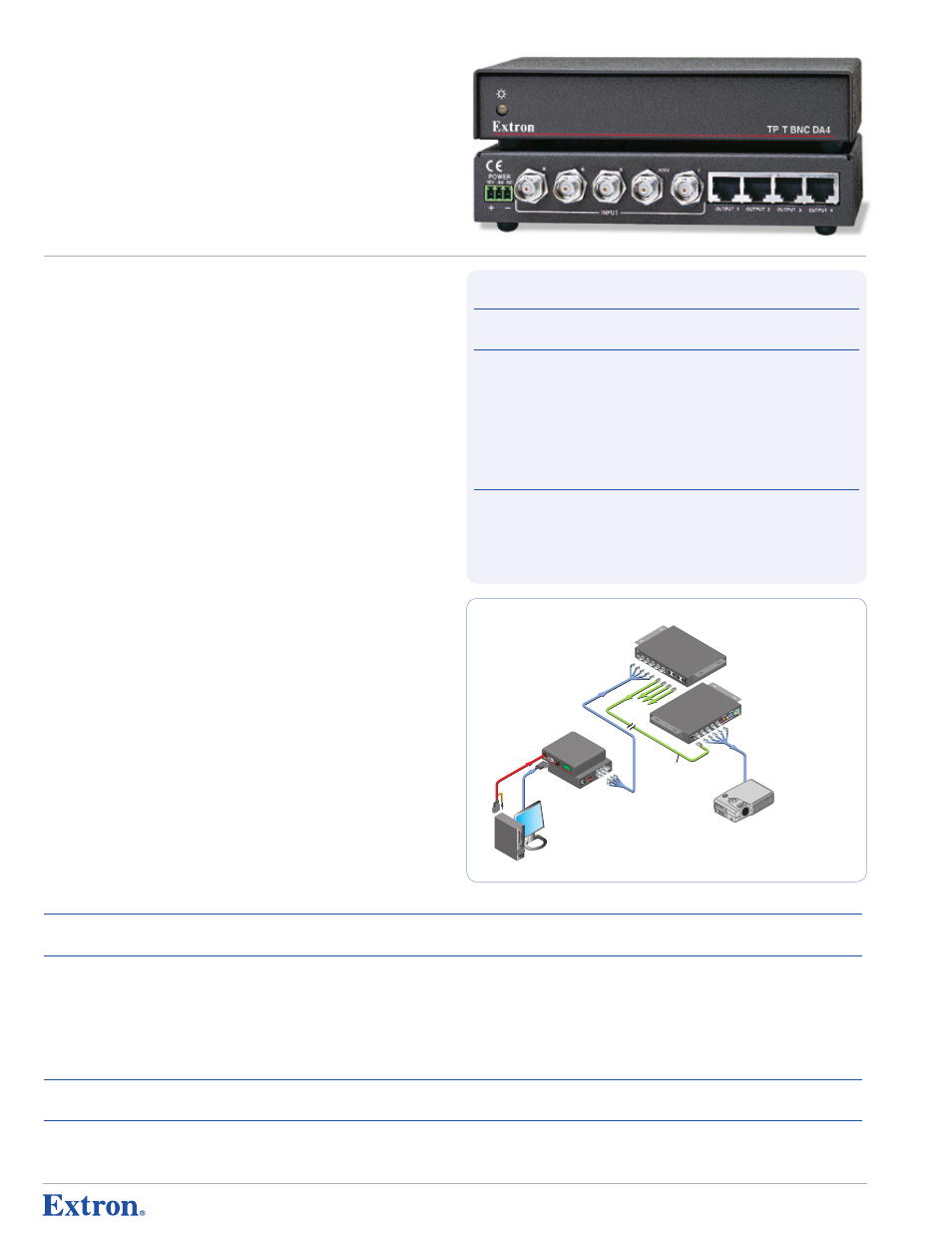

Extron electronic TP T BNC DA4 - Manual

OUT PU T
S O G O U T D D S P S E R R S P A R E
50/ 60 Hz
100 -24 0V 0.5 A LEV EL/ PEA K 0.8 V 5 0% UN ITY 0.9 V 1 00%
BUFF ERED LOC AL MON ITOR OUT PUT
INPU T
H. SH IFT
RGB 109 x i VGA INTE RFAC E W /AD SP
ID P IN 4 ID P IN 1 1
RG B I NP UT
RG B O UT PU T
A AU DIO
R
B
SO G C S YN C
PO WE R 15V .5A DC
L R
INPU TS
R G B H/H V V
POW ER 15V . 5A D C
OUT PUT 1 OUT PUT 2 OUT PUT 3 OUT PUT 4
Extron
TP T BNC DA4
Twisted Pair
Distribution Amplifier/
Transmitter
Extron
TP R BNC A
Extron
Enhanced Skew-Free ™
A/V UTP C able
(up to 1,000’)
4 Outputs
Projector
Rear
Front
Extron
RGB 109xi
Interface
PC
www.extron.com
© 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.
usa West
+1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX
usa east
+1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX
china
+86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX
Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
europe
+31.33.453.4040 / +800.3987.6673
+31.33.453.4050 FAX
dubai
+971.4.2991800
+971.4.2991880 FAX
asia
+65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX
www.extron.com
© 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.
usa West
+1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX
usa east
+1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX
china
+86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX
Japan
+81.3.3511.7655
+81.3.3511.7656 FAX
europe
+31.33.453.4040 / +800.3987.6673
+31.33.453.4050 FAX
dubai
+971.4.2991800
+971.4.2991880 FAX
asia
+65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX
sPeciFicATions
Video — Video Models
Number / Signal type . . . . . . . . . . . 4 sets of proprietary analog signals
Connectors . . . . . . . . . . . . . . . . . . . . . . . 4 shielded RJ-45 female
Video inPuT
Number / Signal type . . . . . . . . . . . 1 analog RGBHV, RGBS, RGsB, component video, or S-video; or
1 S-video and 1 NTSC/PAL/SECAM composite video from a single source; or
3 NTSC/PAL/SECAM composite video from a single source
Connectors . . . . . . . . . . . . . . . . . . . . . . . 5 BNC female
Nominal level . . . . . . . . . . . . . . . . . . . . 1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
Minimum / Maximum levels .. . 0.3 V to 1.45 Vp-p with no offset at unity gain
Impedance .. . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Horizontal frequency. . . . . . . . . . . . 15 kHz to 130 kHz
Vertical frequency . . . . . . . . . . . . . . . 30 Hz to 150 Hz
GenerAl
Power .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 VDC, 0.8 A, external
NOTE: The TP R 15HD A receiver will not provide power to any twisted pair transmitter.
Rack mount . . . . . . . . . . . . . . . . . . . . . . Yes, with optional rack shelves (See optional accessories.)
Enclosure type . . . . . . . . . . . . . . . . . . . Metal
Enclosure dimensions . . . . . . . . . . 1.3" H x 6.8" W x 4.5" D (<1U high,
(3.3 cm H x 17.3 cm W x 11.4 cm D) (Depth excludes connectors.)
Product / Shipping weight . . . . . 0.9 lbs (0.4 kg) / 3 lbs (2 kg)
T P - T w i s T e d P a i r s e r i e s
TP T BNC DA4
TP - Twisted Pair Transmitter/Distribution Amplifier for RGBHV
FeATures
• Input: Female BNCs
• Output: Four female RJ-45 connectors
• Transmits signals to four TP R Series receivers
• Four individually isolated, buffered, and amplified outputs
• Supports RGBHV, RGBS,RGsB, compon e nt video, S-video, and composite video
• Transmits signals 1,000 feet (300 meters) or more over Category 5, 5e, or
6 UTP cable
• Through-desk, under-desk, or rack-mountable
• External universal power supply included, part # 70-057-01 — Provides worldwide
power compatibility.
descriPTion
The Extron TP T BNC DA4 video distribution amplifier/transmitter splits a single analog
computer-video input into four identical outputs and transmits the signals 1,000 feet
(300 meters) or more via Category 5, 5e, or 6 shielded twisted pair or unshielded twisted pair
cable. The TP T BNC DA4 transmits the computer-video to four compatible Extron twisted pair
receivers with no loss of signal integrity.
The TP T BNC DA4 is compatible with nearly every computer and video signal type, including
VGA-UXGA, composite video, component video, and S-video. Optional mounting kits allow the
TP T BNC DA4 video distribution amplifier/transmitter to be mounted on a rack shelf, or under
or through a desk surface.
Model Version descriPTion PArT #
TP T BNC DA4 Four Output Transmitter/DA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-349-02
coMPATible receiVers Model descriPTion PAGe PArT #
TP R BNC A TP - Twisted Pair Receiver for RGBHV and Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 102 60-351-02
TP R BNC AV TP - Twisted Pair Receiver for RGBHV, Composite Video, and Audio . . . . . . . . . . . . . page 103 60-350-03
TP R 15HD A TP R - Twisted Pair Receiver for RGBHV and Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 101 60-450-01
VTR001 VT - VGA Twisted Pair Receiver for RGBHV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 66 60-582-01
VTR001 AAP VT - VGA Twisted Pair Receiver for RGBHV - AAP Version . . . . . . . . . . . . . . . . . . . . . . . . . page 66 70-259-11
VTR001 MAAP VT - VGA Twisted Pair Receiver for RGBHV - MAAP Version . . . . . . . . . . . . . . . . . . . . . . page 66 70-285-11
included Accessories Model descriPTion PAGe PArT #
EPS 1508 B Extron Desktop Power Supply - 15VDC, 800mA, wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 694 70-057-01
oPTionAl Accessories Model descriPTion PAGe PArT #
RSU 129 1U 9.5" Deep Universal Rack Shelf Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 819 60-190-01
RSM 100 Rack Shelf Mount Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 817 70-123-01
MBD 129 1U, 1/2 & 1/4 Rack Width Through-Desk Mount Kit for Two-Piece Enclosure . . . page 817 70-077-02
104
