Operation, Power input, Installation and setup, cont’d – Extron electronic FOX 2G Tx User Manual
Page 22
FOX 2G Tx/Rx AV • Installation and Setup
Installation and Setup, cont’d
2-10
Operation
Power Input
1.
Connect the captive screw connector from the supplied
12 VDC power supply into the power receptacle.
N
The FOX 2G Tx/Rx AV does not have a remote powering
feature. Both the transmitter and the receiver require
their own separate power supply.
12V
0.6A MAX
POWER
Power Receptacle
DC Power Cord
Captive Screw Connector
AC Power Cord
Negative
+12 VDC
External
Power Supply
(12 VDC, 1 A )

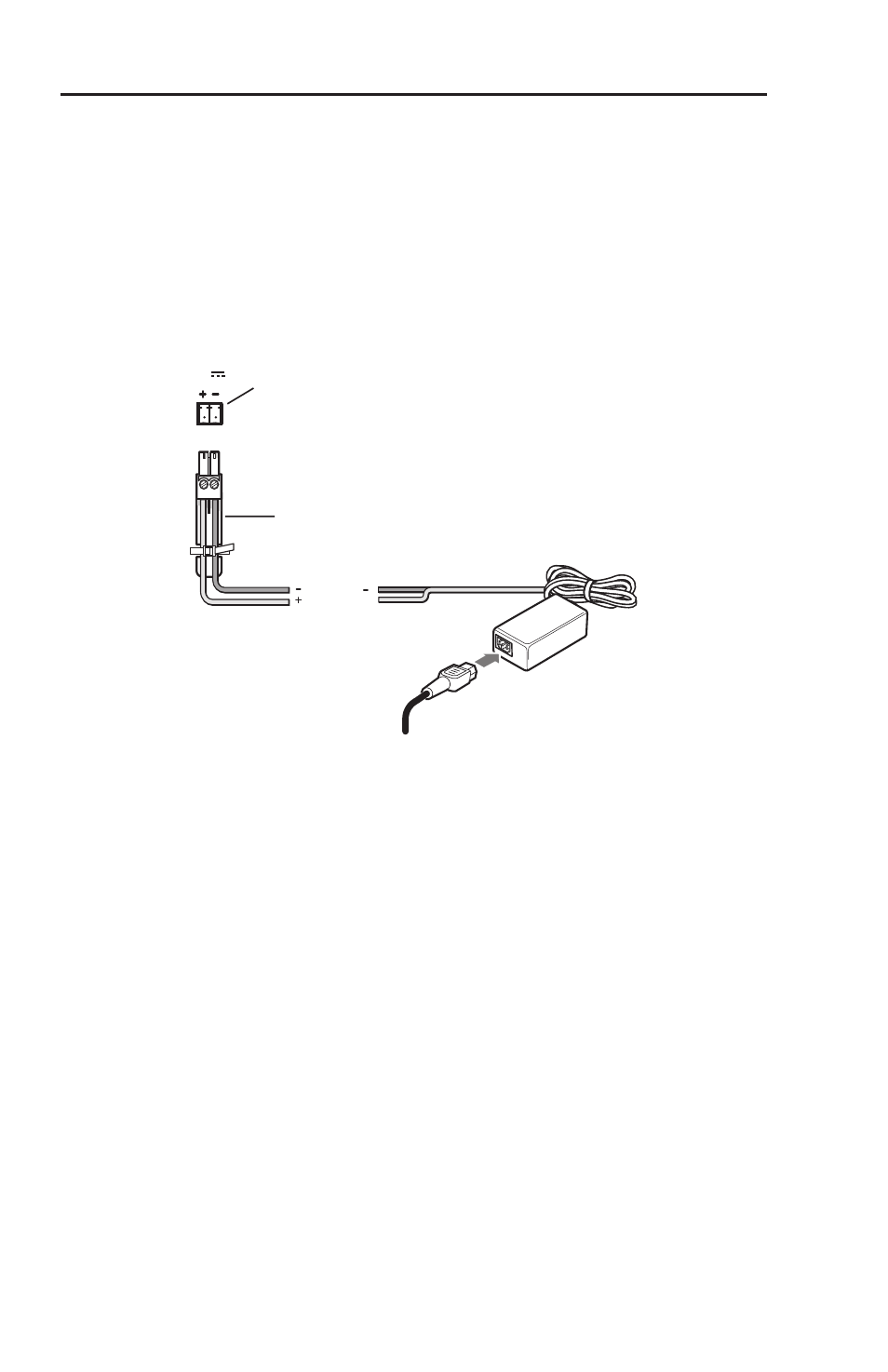

Figure 2-8 — Connecting power
N
The length of the exposed wires in the stripping process
is critical. The ideal length is 3/16” (5 mm). Any longer
and the exposed wires may touch, causing a short circuit
between them. Any shorter and the wires can be easily
pulled out even if tightly fastened by the captive screws.
C
Do not tin the wires. Tinned wire does not hold its
shape and can become loose over time.
2
.
Connect the AC power cord of the power supply unit to a
110 or 220 VAC electrical source.
