FOX 2G Tx/Rx AV • Configuration
Configuration, cont’d
3-6
Symbols used in this manual
When programming in the field, certain characters are most
conveniently represented by the hexadecimal equivalent of
their ASCII value. For convenience, the table below shows the
hexadecimal equivalent of each ASCII command:
N Apart from G (gain) and g (attenuation), upper and
lower case characters can be used interchangeably in SIS
commands for this product. For example, on page 3-8,
either "C" or "c" can be used to set the color value.
The symbols ( X/ values) defined in this section are the variables
used in the fields of the command response table that begins on
page 3-8.
]
— carriage return with line feed
} — carriage return (no line feed)
• — space character
E — Escape key
X!
— Input video type
0 = Auto
4 = Component
5 = S-video
6 = Composite
X@
— Color, tint, contrast, or brightness adjustment (0 to 127)
X# — Auto Memory, blanking, or audio mute status
0 = disabled
1 = enabled

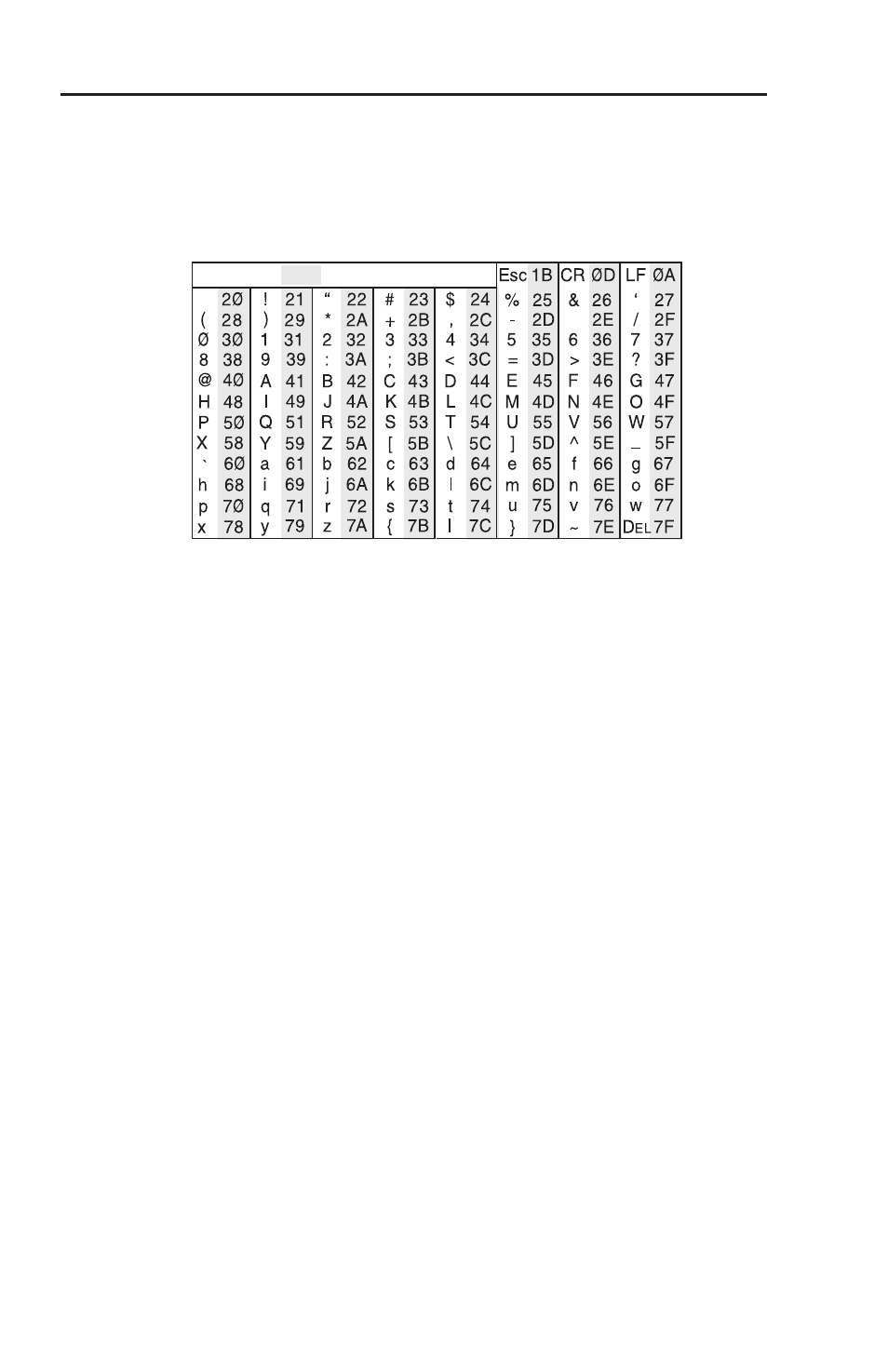

ASCII to HEX Conversion Table
Space
.
