ELECTRO-VOICE ® X-Line Very Compact TM Rigging Manual

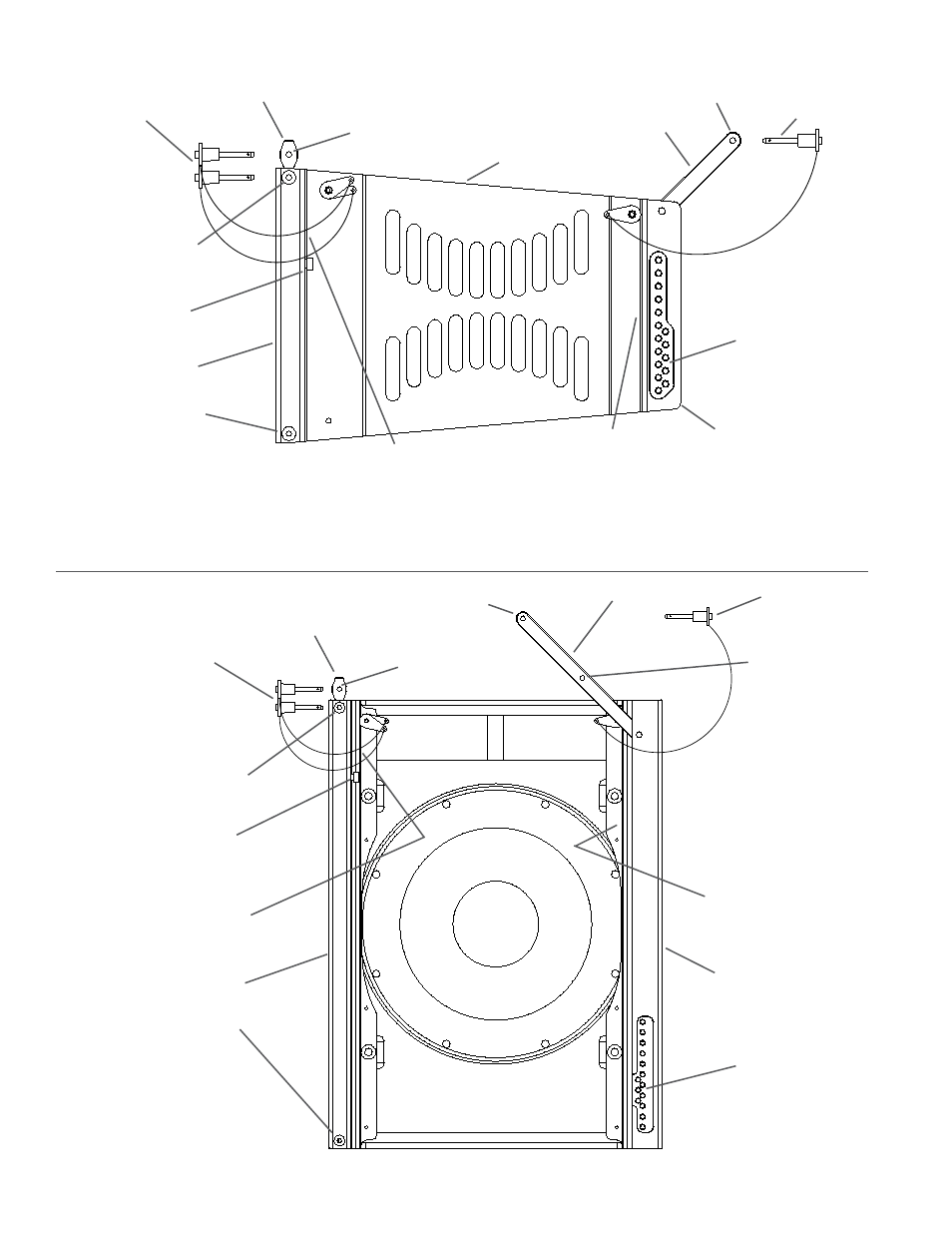

Figure 3a:
XLD281 and XLE181
Rigging Hardware
Quick-Release Pins
Front Hinge Bar
Hole in Front Rigging
Tube for Locking Pin
Hole in Hinge Bar for
Locking Pin
XLD281 or XLE181
Enclosure
Rear Swing Arm
Quick-
Release Pin
Hole in Front Rigging
Tube for Locking Pin
from Enclosure
Below
Shoulder Bolt for
Moving Hinge Bar
Up or Down
Holes in Rear
Rigging Channel for
Locking Pin from
Enclosure Below
(These Holes
Determine Splay
Angle)
Transport Holes for
Storing Quick-
Release Pins During
Transport (Hinge Bar
Must Be Lowered)
Transport Hole for
Storing Quick-Release
Pin During Transport
(Swing Arm Must Be
Lowered)
Figure 3b:
XS212 Rigging
Hardware
Quick-Release Pins
Front Hinge Bar
Hole in Front Rigging Tube
for Locking Pin
Hole in Hinge Bar for
Locking Pin
Shoulder Bolt for Moving
Hinge Bar Up or Down
Rear Swing Arm Quick-Release Pin
Holes in Rear
Rigging Channel for
Locking Pin from
Enclosure Below
(These Holes
Determine Splay
Angle)
Center Hole in
Rear Swing Arm
is for Grid Use
Only
Hole in Front Rigging Tube
for Locking Pin from
Enclosure Below
Transport Holes for Storing
Quick-Release Pins During
Transport (Hinge Bar Must
Be Lowered)
Transport Hole for
Storing Quick-Release
Pin During Transport
(Swing Arm Must Be
Lowered)
Hole in Swing Arm
for Locking Pin
Hole in Swing Arm for Locking Pin
Front Rigging Tube
Rear Rigging Channel
Front Rigging Tube
Rear Rigging Channel
7
