Page 35

ELECTRO-VOICE

X-Line Very Compact

Rigging Manual

2.7 Rigging an Array from the XLVC Dollies
The XLD/XS Dolly will accommodate two columns of XLD281 loudspeaker systems stacked up to
6 high, two columns of XS212 loudspeaker systems stacked up to 3 high, or a mixture of the two.

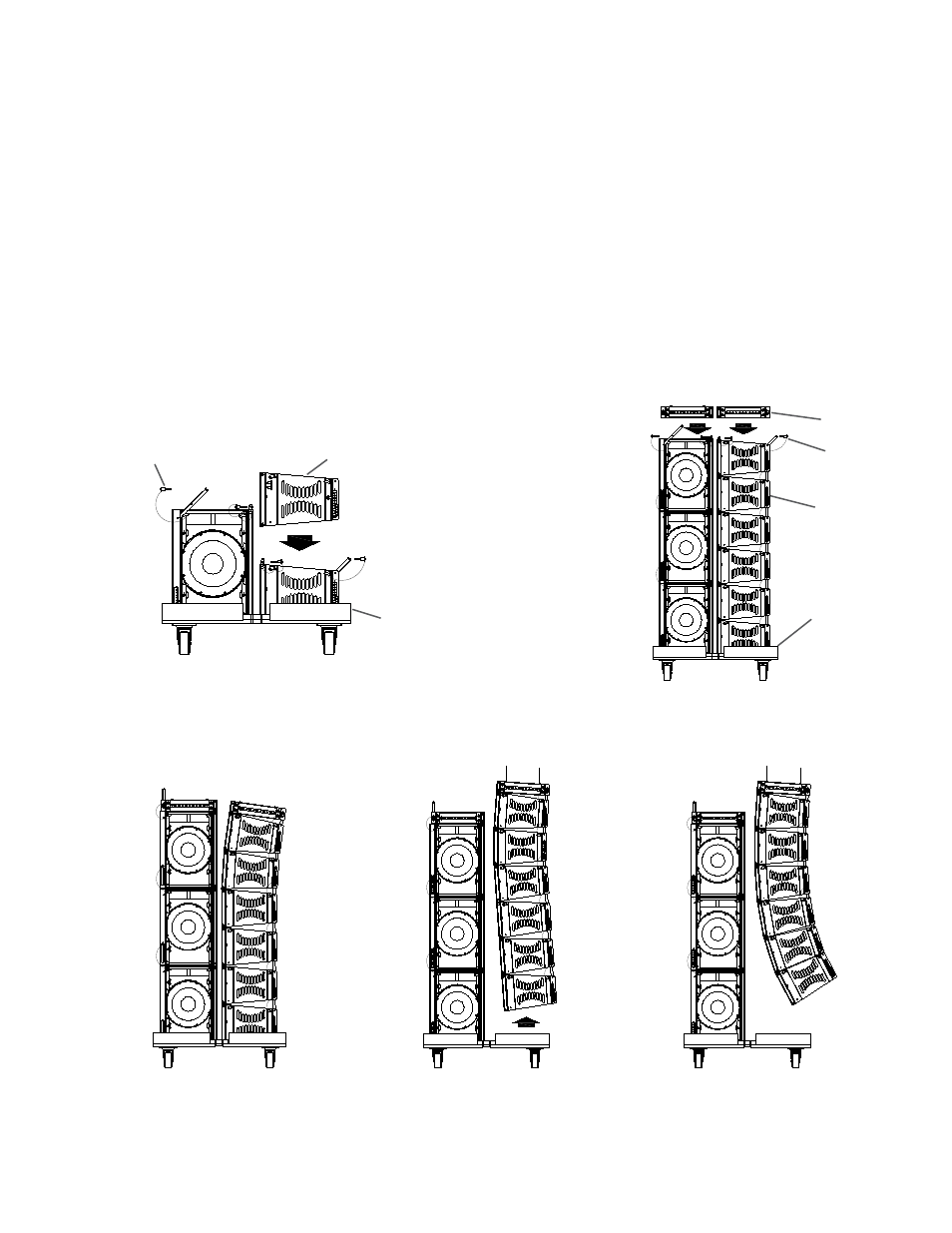

Figure 12 shows (6) XLD281 systems and (3) XS212 systems and illustrates the technique for
stacking onto the dolly and flying from the dolly.

To stack onto the dolly, simply stack the required systems onto the dolly and attach the grid on
top, as shown in Figure 12a.

The best technique for flying from the dolly is illustrated in Figure 12b for a stack of (6) XLD281
systems. First, adjust the angle of the top three boxes while they are still setting on the dolly, as
shown in Figure 12b Step 1. Next lift the column of six boxes into the air as shown in Figure 12b
Step 2. While the boxes are suspended, adjust the angle of the bottom three boxes, as shown in
Figure 12b Step 3. The entire array of XLD281 systems is now ready to lift overhead. Repeat the
process in reverse when landing the (6) XLD281 systems on the dolly.

Step 1:

Flying Arrays using

the XLD/XS Dolly - Tilt Top

Enclosures

Step 1:

Stacking Arrays onto the

XLD/XS Dolly - Enclosure Attachment

Step 2:

Stacking Arrays onto the

XLD/XS Dolly - Grid Attachment

Step 2:

Flying Arrays using

the XLD/XS Dolly - Lift

Column of Enclosures

Step 3:

Flying Arrays using

the XLD/XS Dolly - Tilt

Bottom Enclosures

Quick-Release Pins

Dolly

Base

Additional

Enclosures

Grids

Quick-

Release Pins

Enclosure

Columns

Dolly Base

Figure 12b:

Rigging an Array from the XLVC Dollies

Figure 12a:

Stacking an Array on the XLVC Dollies
