Xld grid and xle grid rigging configurations, Figure 8b – Electro-Voice X-Line Very Compact (XLVC) User Manual
Page 27
ELECTRO-VOICE
®
X-Line Very Compact
TM
Rigging Manual
Figure 8b:

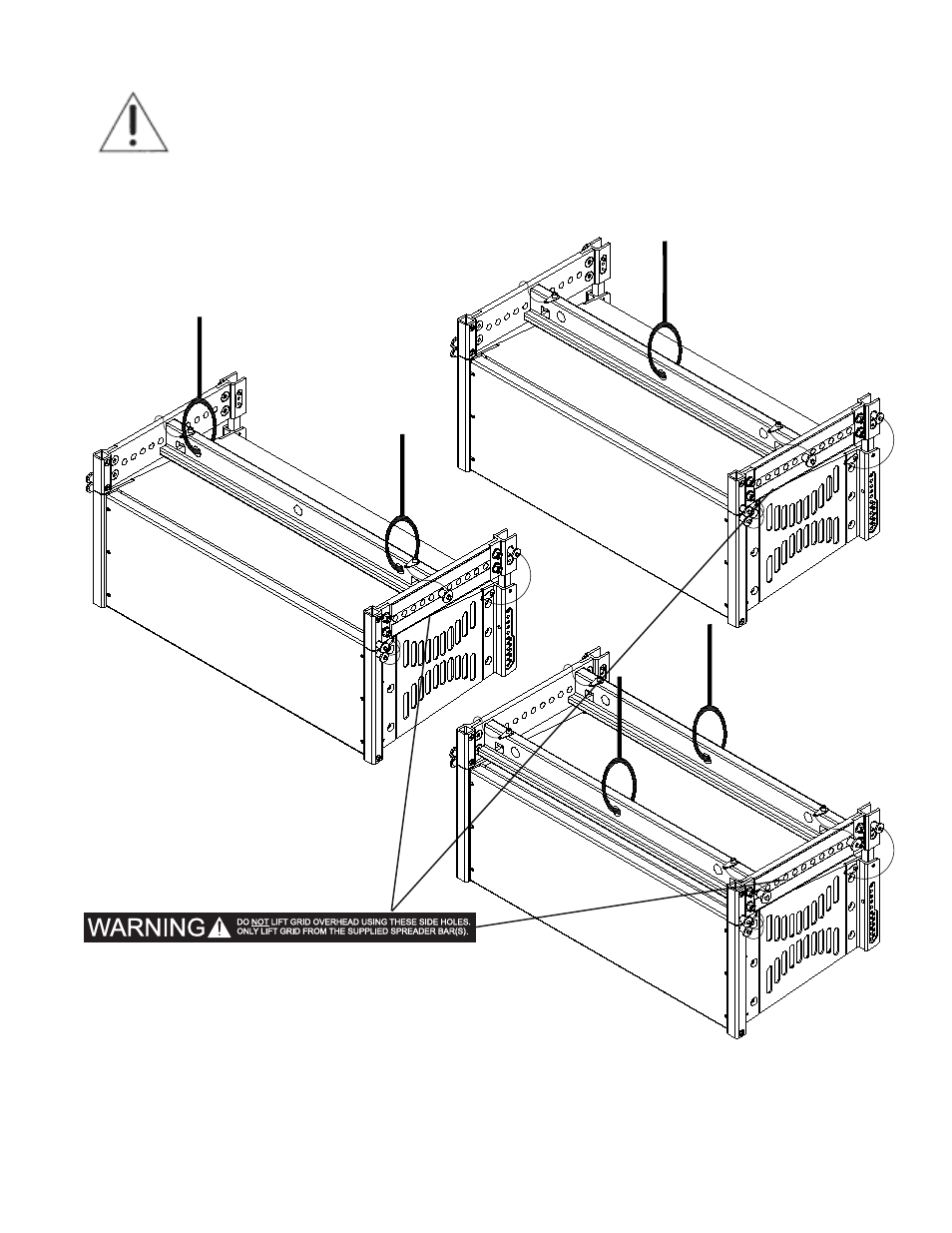

XLD GRID and XLE GRID Rigging Configurations
MAKE SURE THAT THE QUICK-RELEASE PINS ATTACHED TO THE GRID
SIDEARMS FULLY LOCK INTO THE HOLES IN THE ENDS OF THE SPREADER
BARS. ALWAYS MAKE SURE THAT EACH SPREADER BAR IS ATTACHED TO
THE SAME HOLE ON THE LEFT AND RIGHT SIDEARMS.
