Cbeam pick up options, Figure 9b, Figure 9c – Electro-Voice X-Line Very Compact (XLVC) User Manual
Page 30: Figure 9d
ELECTRO-VOICE
®
X-Line Very Compact
TM
Rigging Manual

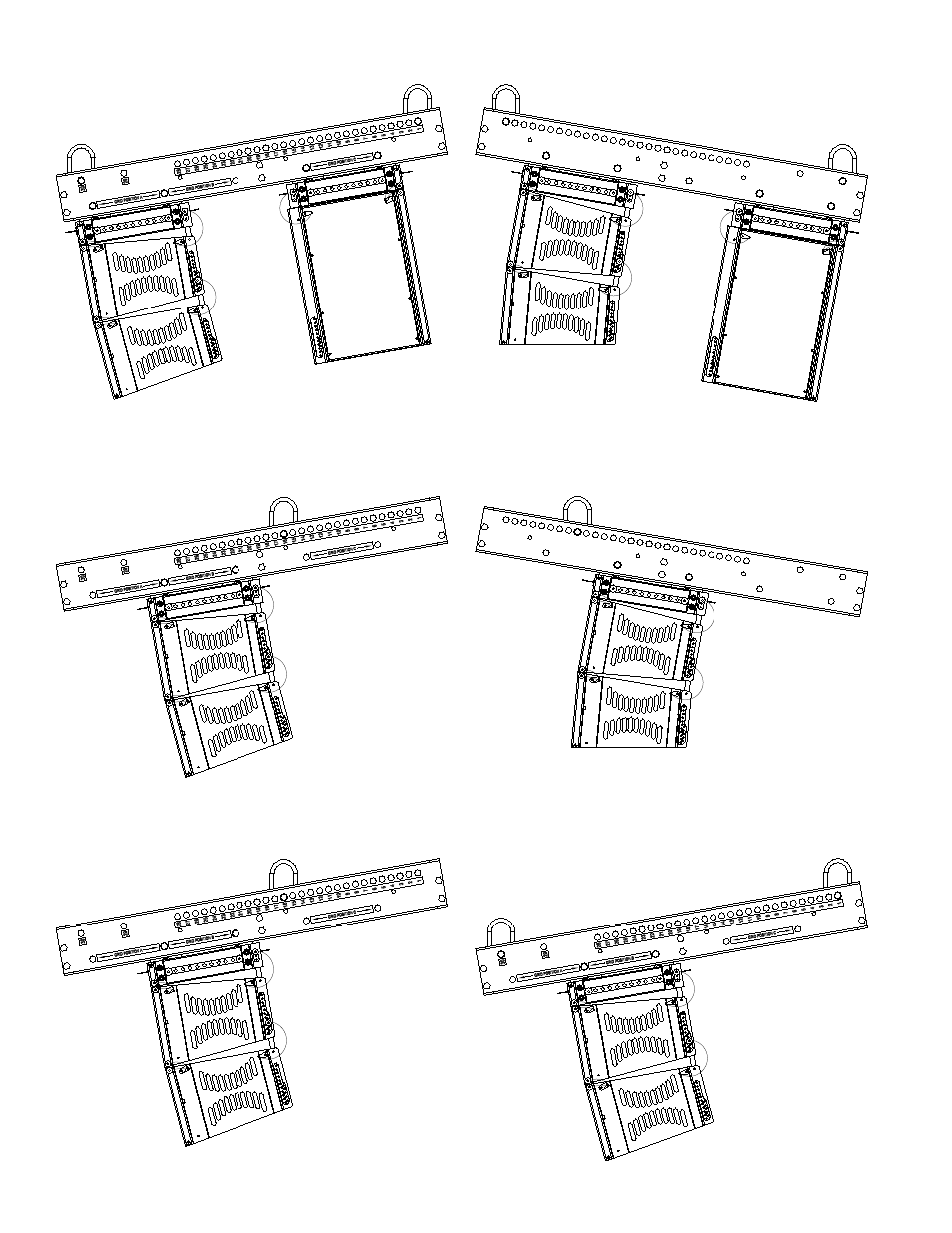

Figure 9b:
CBEAM Dual-Array Configuration Using Grid Positions A and C
Figure 9c:
CBEAM Single-Array Configuration Using Grid Position B
Tilting Down
(Hole #1 at Rear)
Tilting Up
(Hole #1 at Front)
Tilting Down
(Hole #1 at Rear)
Tilting Up
(Hole #1 at Front)
Figure 9d:
CBEAM Pick Up Options
One Pickup
Point
Two Pickup
Points
29
