ELECTRO-VOICE ® X-Line Very Compact TM Rigging Manual 33
ALWAYS MAKE SURE THAT THE QUICK-RELEASE PINS ON THE HINGE BARS
FULLY LOCK INTO THE HOLES IN THE FRONT RIGGING TUBES ON BOTH
THE ENCLOSURE AND THE GRID.
ALWAYS MAKE SURE THAT THE LEFT AND RIGHT SWING ARMS ON THE
ENCLOSURE ARE LOCKED INTO THE SAME HOLES FOR THE SAME
VERTICAL SPLAY ANGLE ON THE GRID.
ALWAYS MAKE SURE THAT THE QUICK-RELEASE PINS FOR EVERY SWING
ARM PASS THROUGH THE HOLE IN THE SWING ARM AND ARE FULLY
LOCKED IN THE RIGGING CHANNELS IN THE GRID.

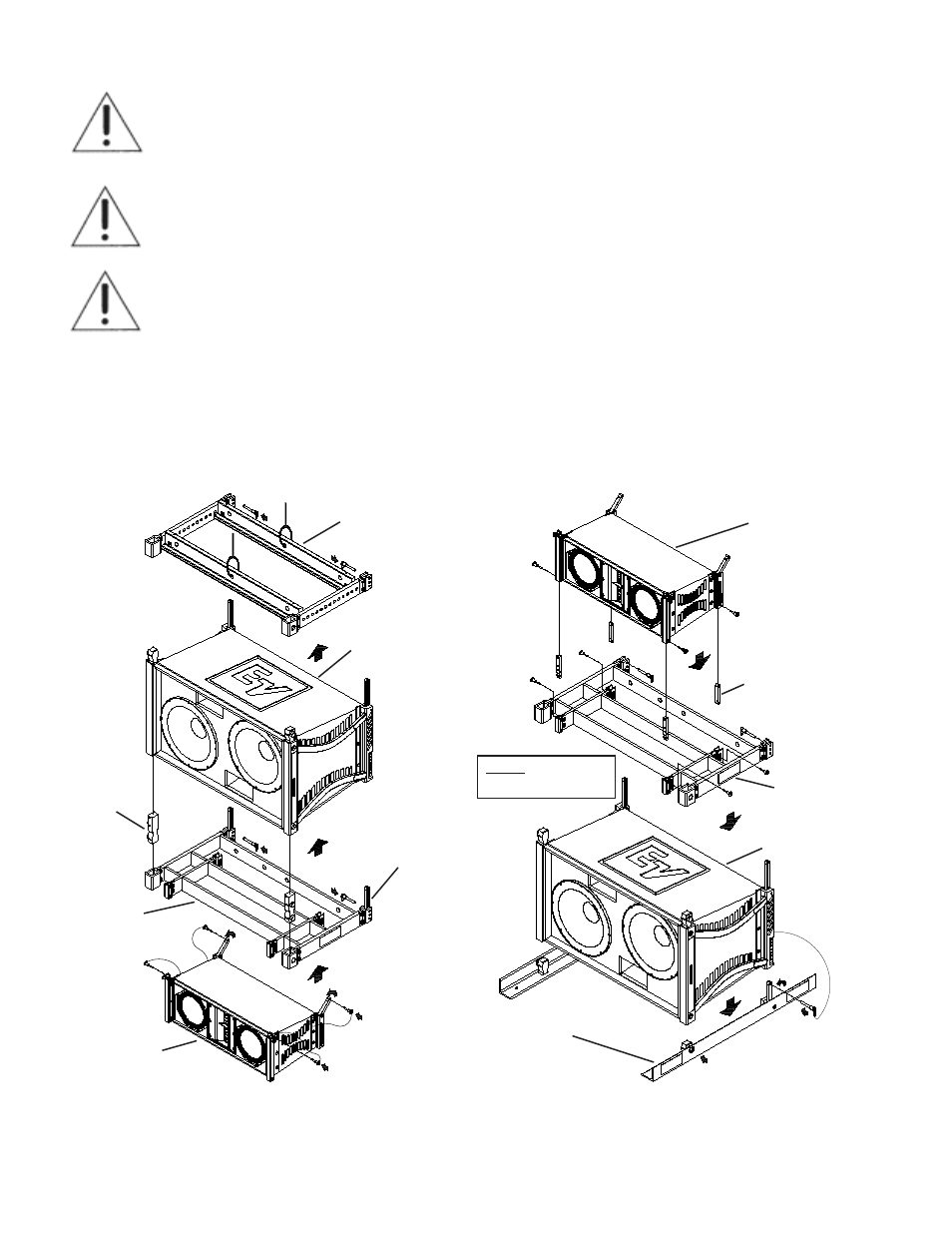

The AGCD adapter grid may also be used to stack an XLD281 enclosure on top of an XLC
subwoofer. Figure 11b shows an XLD281 stacked on top of an XLC215 subwoofer.
Figure 11a:
Using the AGCD Adapter Grid
for Flying Arrays
Figure 11b:
Using the AGCD Adapter Grid
for Groundstacking Arrays
XLC Series
Loudspeaker
XLC Grid
XLC Button
Bar
(Set of 2)
XLC Swing Arm
(Set of 2)
XLVC Series
Loudspeaker
AGCD
Adapter Grid
XGS-3
Groundstack
AGCD
Adapter Grid
XLC Series
Loudspeaker
XLVC Series
Loudspeaker
XLVC-BGK
Bottom Grid Kit
(Set of 2 Hinge
Bars and Swing
Arms along with
8 Pins)
Note: XLVC-BGK
Sold Separately
