ELECTRO-VOICE
®
X-Line Very Compact
TM
Rigging Manual

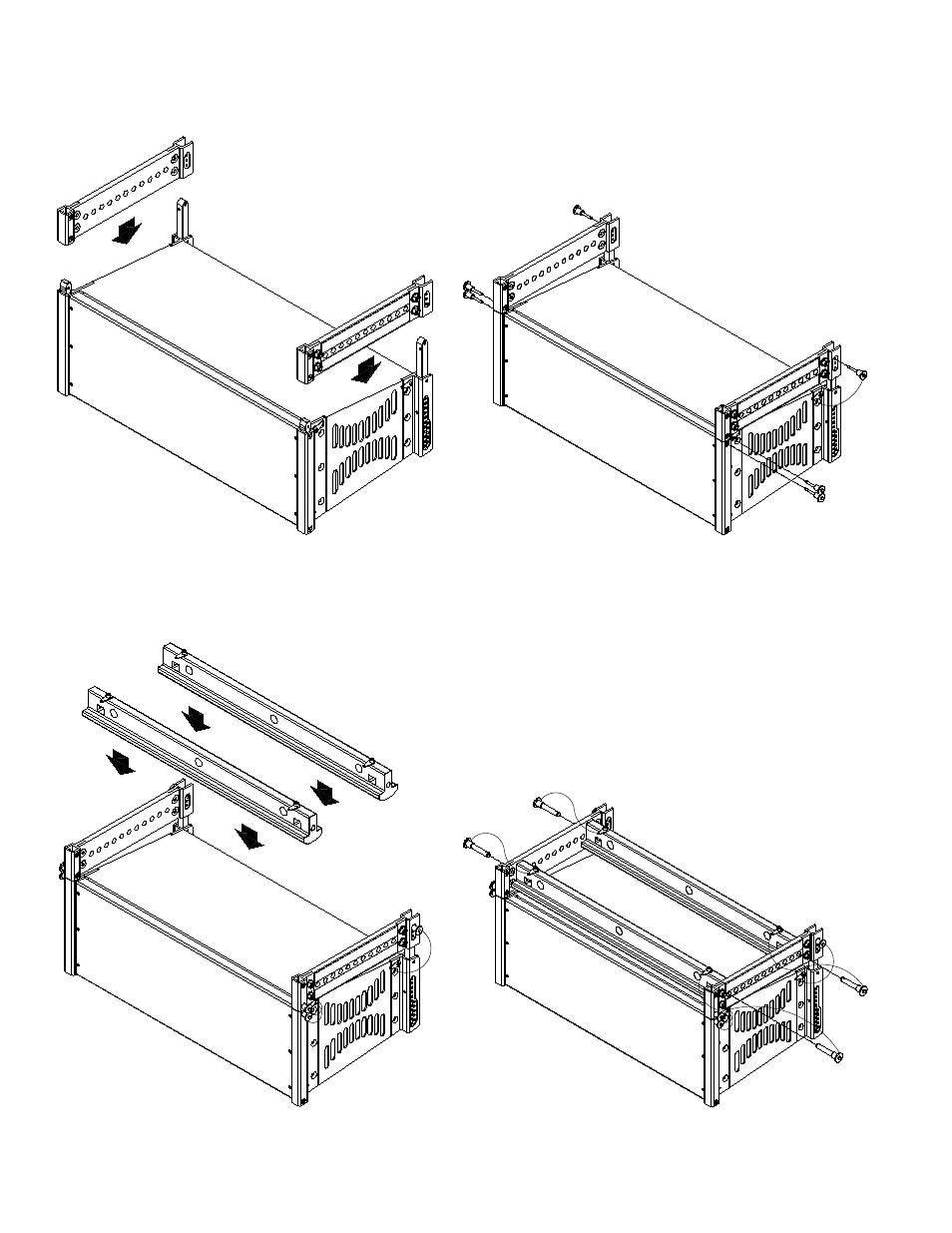

Step 1:
Assemble Sidearms to Rigging at top of the
Enclosure.
Step 3:
Assemble Spreader Bar(s) to Sidearms.
Step 2:
Insert Quick-Release Pins through Enclosure
Rigging and Sidearms.
Step 4:
Insert Quick-Release Pins through Sidearms
and Spreader Bar(s) using the hole locations
from LAPS.
See next page for fully assembled configurations.
Figure 8a:
XLD GRID and XLE GRID Rigging Assembly
25
