Figure 6b, Figure 6c – Electro-Voice X-Line Very Compact (XLVC) User Manual
Page 20
ELECTRO-VOICE
®
X-Line Very Compact
TM
Rigging Manual

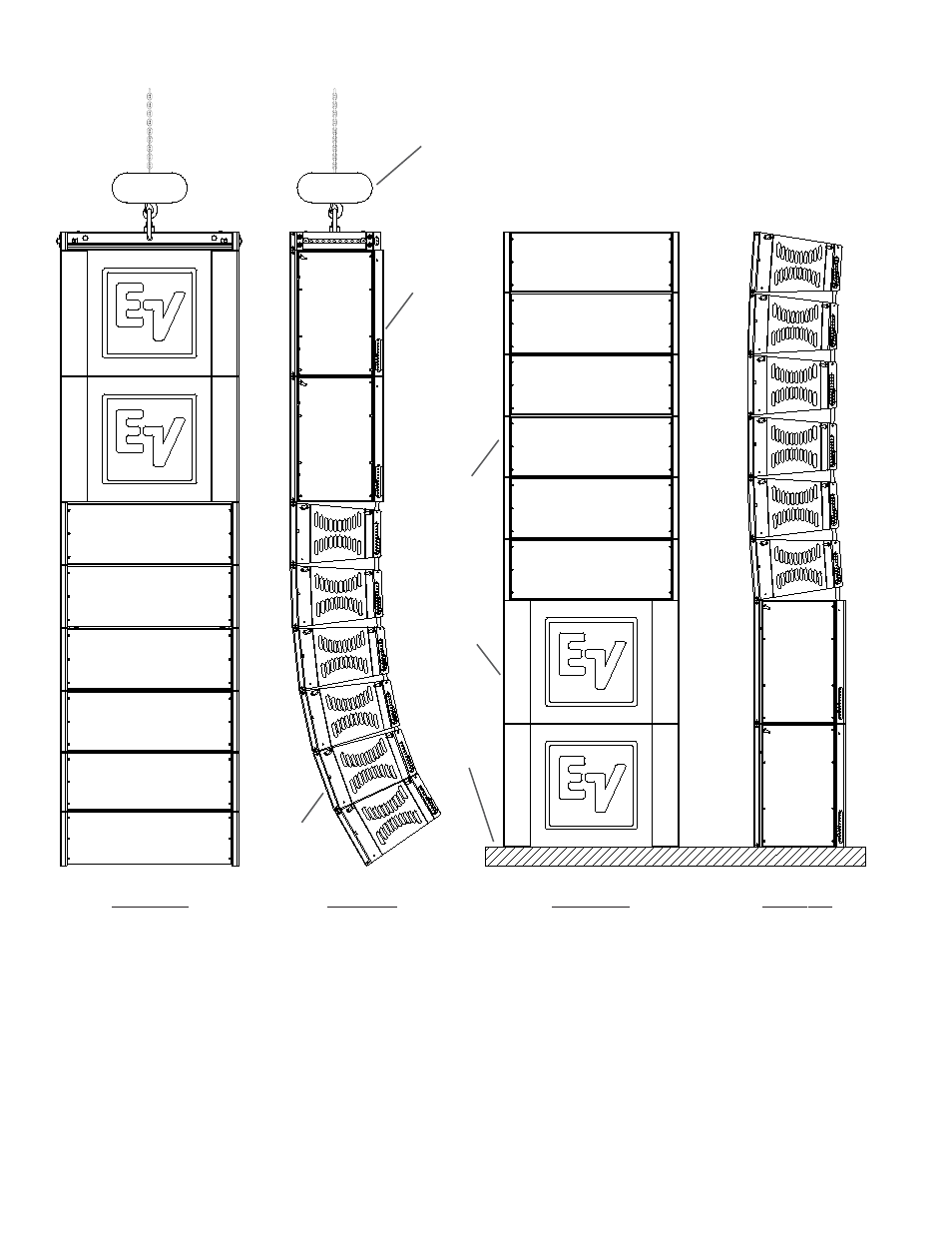

Figure 6b:
Flying an Array of XLD281’s under
XS212’s using Interactive Rigging
Figure 6c:
Groundstacking XLD281’s over XS212’s
using Interactive Rigging
Front View
Side View
Front View
Side View
XS212
Enclosures
XS212
Enclosures
XLD281
Enclosures
XLD281
Enclosures
Ground
Hoist
Motors
19
