Xle181 rigging dimensions and weights, Figure 4b – Electro-Voice X-Line Very Compact (XLVC) User Manual
Page 10
ELECTRO-VOICE
®
X-Line Very Compact
TM
Rigging Manual

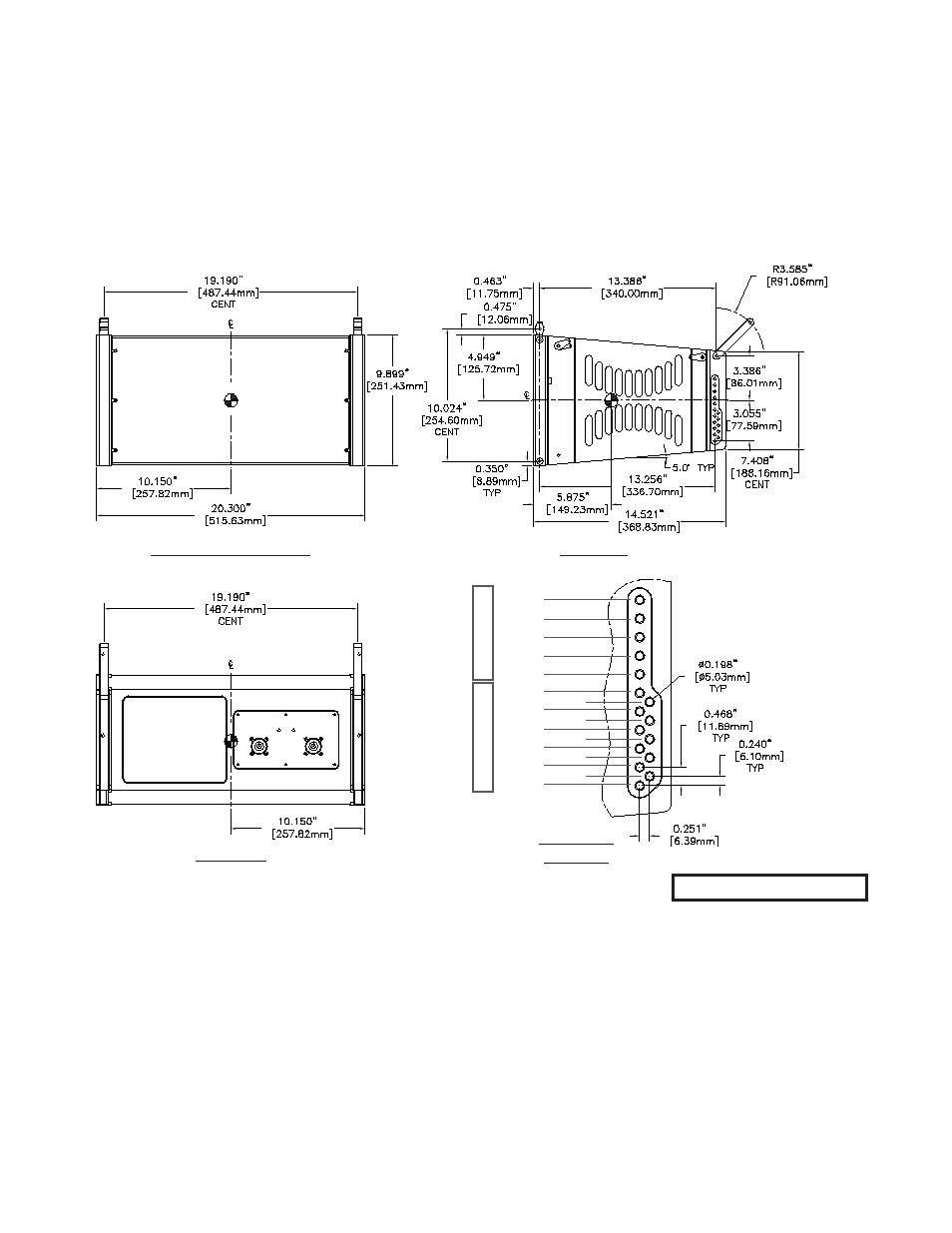

Figure 4b:
XLE181 Rigging Dimensions and Weights
Front View (With Grille)
Rear View
Side View
Hole Detail
Scale 3:1
1°
Hole
3°
Hole
5°
Hole
7°
Hole
0°
Hole
2°
Hole
4°
Hole
6°
Hole
8°
Hole
9°
Hole
10°
Hole
-4°
Hole
-2°
Hole
0°
Hole
2°
Hole
4°
Hole
Full Range Only
Subwoofer Only
Weight: 38 lb (17.2 kg)
LF
HF
HF
LF
9
