3
Introduction
Chapter 1
Network Application Platforms
F1 Power/Status/HDD LED
Power: If the LED is on it indicates that the system is powered on. If it is off, it indicates that the system is powered off.
Status: This LED is programmable. You could program it to display the operating status with the behavior like:
If the LED is green, it indicates that the system’s operational state is normal. If it is red, it indicates that the system is
malfunctioning.
HDD:
If the LED blinks, it indicates data access activities; otherwise, it remains off.
F2 System Panel: LCD System Panel
The LCD System Panel can be programmed to display operating status and configuration information. For more details
or sample programming code, please refer to the Drivers and user’s manual CD.
F3 Management Port (provided by Realtek RTL8110SC)
This FastEthernet port can be connected for configuration or troubleshooting purpose. A conformity with IPMI (Intelligent
Platform Management Interface) can be implemented through OPMA on this interface. It is also capable of Preboot
eXecution Environment (PXE) to boot computers using a network interface. (This feature can be enabled or disable in
the BIOS; the default is disabled).
F4 Console Port
By using suitable rollover cable or RJ-45 to DB-9 Female (Cisco console cable), you can connect to a computer terminal
for diagnostic or configuration purpose. Terminal Configuration Parameters: 115200 baud, 8 data bits, no parity, 1 stop
bit , no flow control.
F5 Two USB 2.0 Ports
It connects to any USB devices, for example, a flash drive.
F6 Reset Switch
The reset switch can be used to reboot the system without turning off the power.
F7 Swappable Ethernet Modules (with LAN bypass options)
F8 Ethernet Ports (LAN1-LAN2: bypass pair; LAN3-LAN4: bypass pair)
LINK/ACT (Yellow)
On/Flashing: The port is linking and active in data transmission. •
Off: The port is not linking. •
SPEED (Green/Amber)

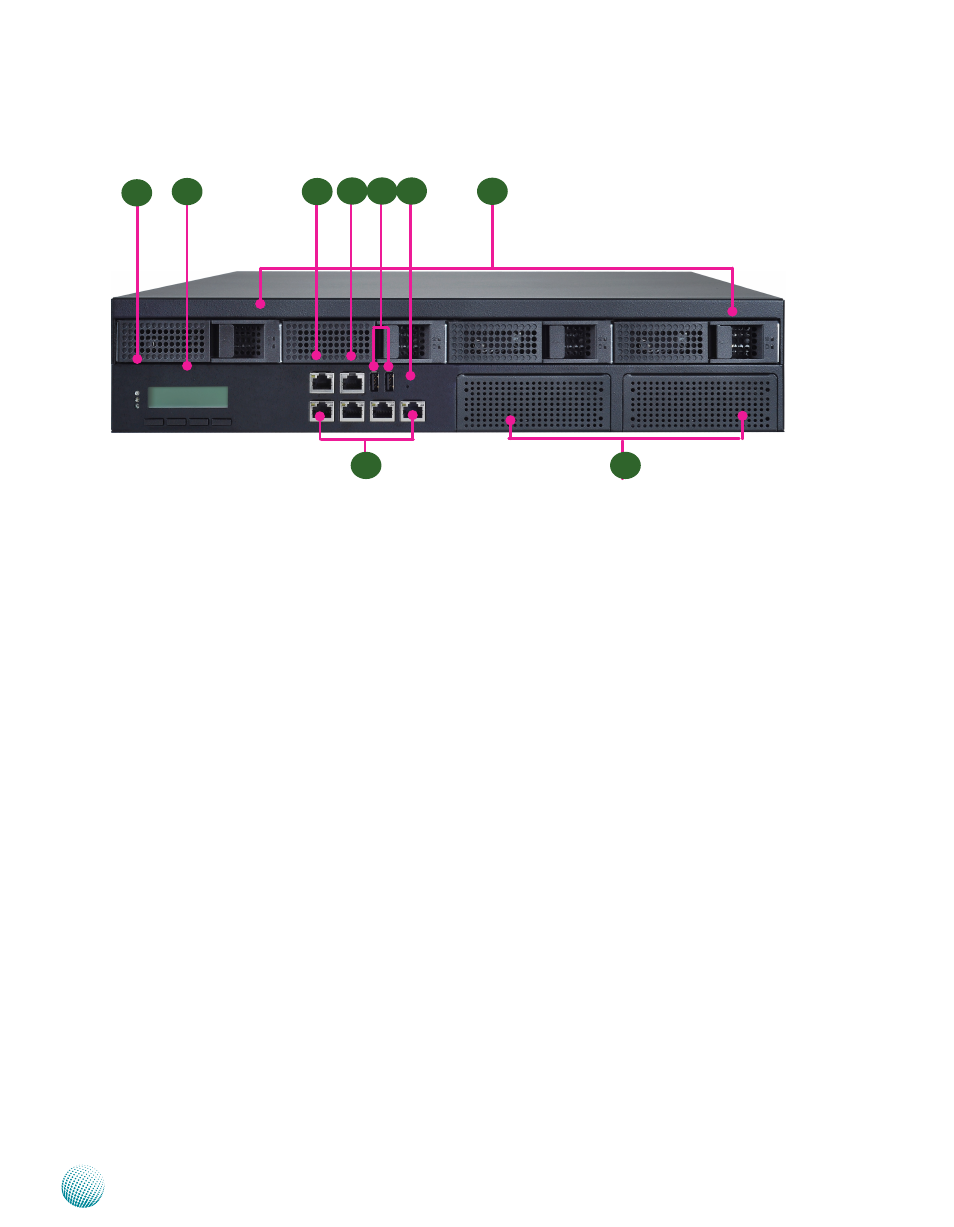

Front Panel Features
F1 F2 F3 F4 F9 F6 F5
F7 F8
LAN1 LAN2 LAN3 LAN4
