24
Bios Settings
Chapter 4
Network Application Platforms

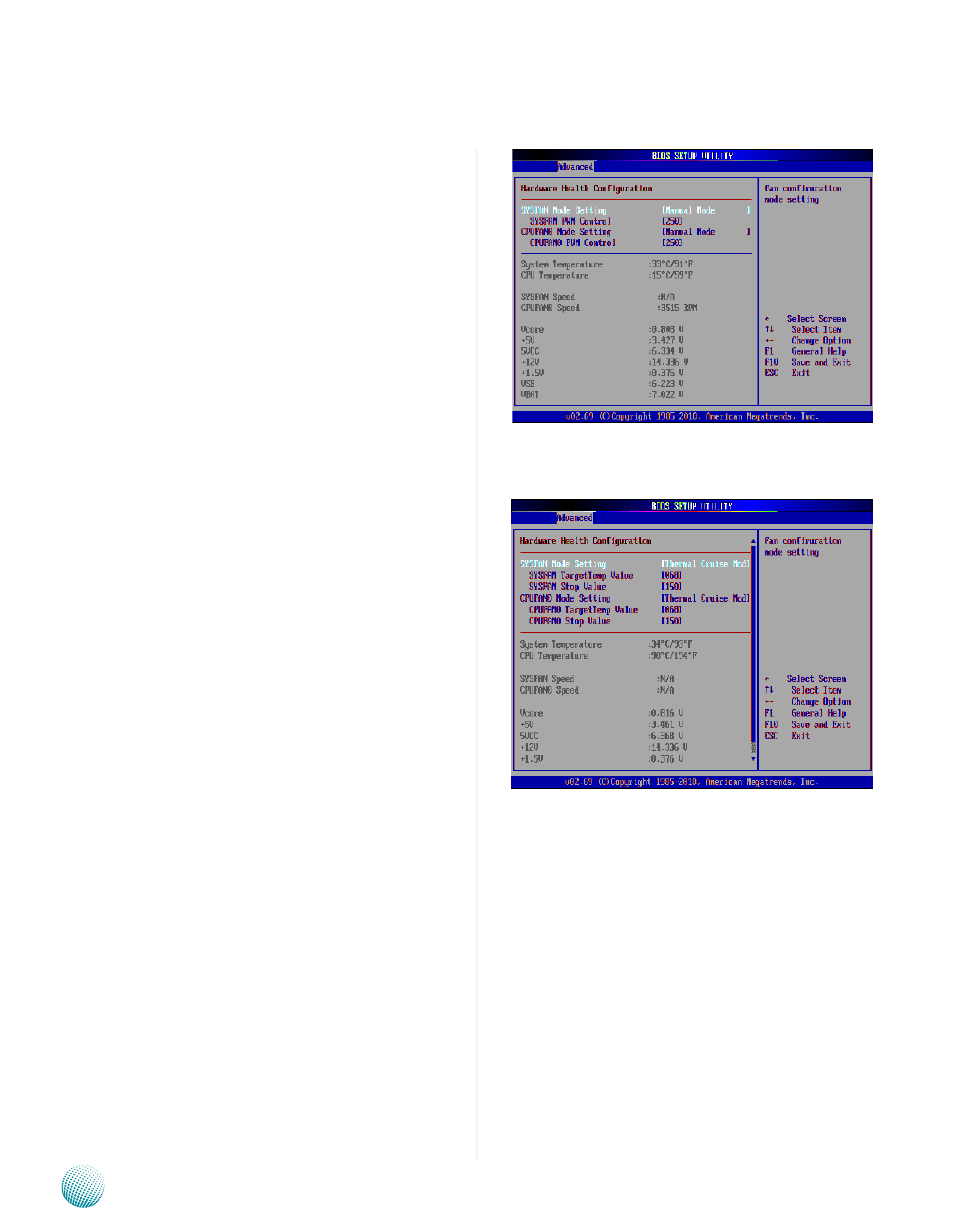

Hardware Health Configuration
This menu shows the hardware monitor configuration
settings. Select an item then press to display the
configuration options.
SYSFAN/CPUFAN Smart Fan Function
It allows you to configure the smart fan feature. Refer
to Motherboard Layout on Chapter 3 Block Diagram for
system fan connectors.
SYSFAN/CPUFAN Mode Setting: Select Thermal Cruise
Mode or Manual Mode for mode setting. Select Manual
mode if you want set your fan speed manually or select
Thermal Cruise Mode to let the system adjust the fan
speed dynamically.
Manual Mode
SYSFAN/CPUFAN PWM Control: Select to set the fan
speed in Revolutions per minutes (RPM).
Thermal Cruise Mode
SYSFAN/CPUFAN TargetTemp Value: Select to specify
the target temperature to start smart fan feature which
will cause the fan ramp up to the full speed upon reaching
this temperature.
SYSFAN/CPUFAN Stop Value: Select to specify the fan
speed in Revolutions per minutes (RPM) after power-
on. The fan will keep at this speed until the temperature
reaches the set TargetTemp Value:
