4-12 SMA America SB700U-11:SE3207

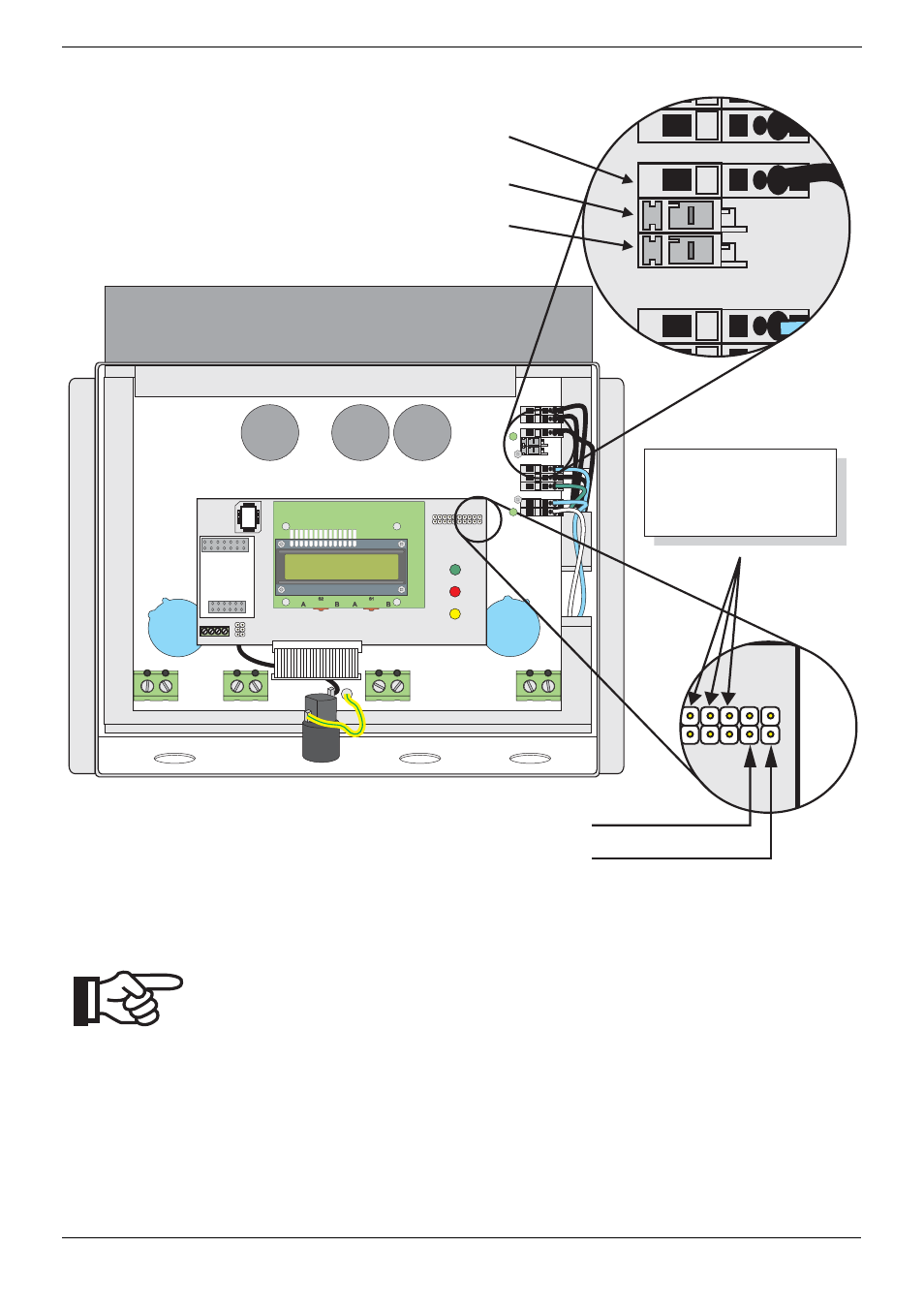

Figure 4-6 Configuring the DC Input-Voltage Range
Note: The Sunny Boy 700U is shipped from the factory with
the DC input-voltage range configured for 125 V DC to 250
V DC. Do not discard the jumper when the Sunny Boy is set
for 125 V DC to 250 V DC. Store the jumper on a single,
empty pin in case it is needed later (see Table 4-2).
DC– PE PE L N
2 3 5 7
DC+
S9 S7 S5 200V 150V
A
S2
A B B
S1
ı ˇ
ˇ
A
S2
A B B
S1
ENS1 ENS2 S15 S13 S11 S9 S7 S5 200V 150
V
125 V DC to 250 V DC
100 V DC to 200 V DC
75 V DC to 150 V DC
Put jumper here for 100 V DC to 200 V DC
Put jumper here for 75 V DC to 150 V DC
Use no jumper for 125 V DC to 250 V DC
Changing any
other jumpers
voids the warranty.
