.2 The PLANE F
unction: Tilting the W
o
rk
ing Plane (Sof
tw
ar
e Option 1)

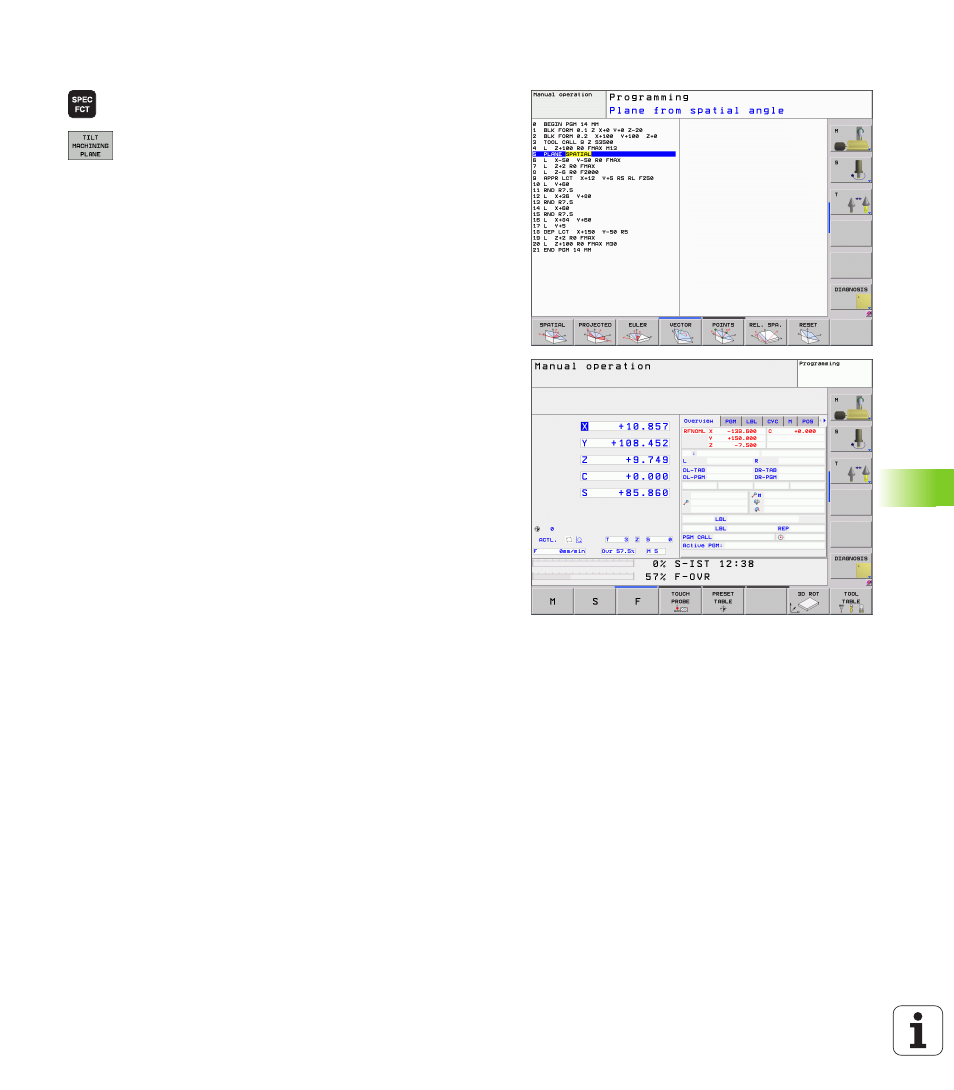

Define the PLANE function
U Show the soft-key row with special functions
U Select the PLANE function: Press the TILT MACHINING
PLANE soft key: The TNC displays the available
definition possibilities in the soft-key row
Selecting functions
U Select the desired function by soft key. The TNC continues the
dialog and requests the required parameters.
Position display
As soon as a PLANE function is active, the TNC shows the calculated
space angle in the additional status display (see figure). As a rule, the
TNC internally always calculates with space angles, independent of
which PLANE function is active.
