Stand-Alone Controller RSE 1
26 Rev. 1 / 02.2002
Source substitution
Sometimes it is not 100% possible to cable the SD sources and the respective HD
sources to the same inputs of the mainframes.
A new setting in Install-EBox-Input allows to substitute the input number of the
incoming command by another input number. This feature uses one of the Substitu-
tion tables that are already used for AUX and M/E-couple.
The setting is ”Subst. Table” and is normally unchangeable (greyed out).
For those users who need this substitution it can be enabled by a registry setting:
The setting is the key ” INPUT_SUBSTAB_SELECTABLE” in
HKEY_CURRENT_USER\Software\BTS\SP\USERINTERFACE.
It is a DWORD value. ”0” disables the selection of the substitution table; ”1” enables
it.
Please note!
If there is a Subsitution table selected, it is in effect even if the ”Subst. Table” selec-
tion is greyed out.
5.1.5 TWO COMPLETE SYSTEMS

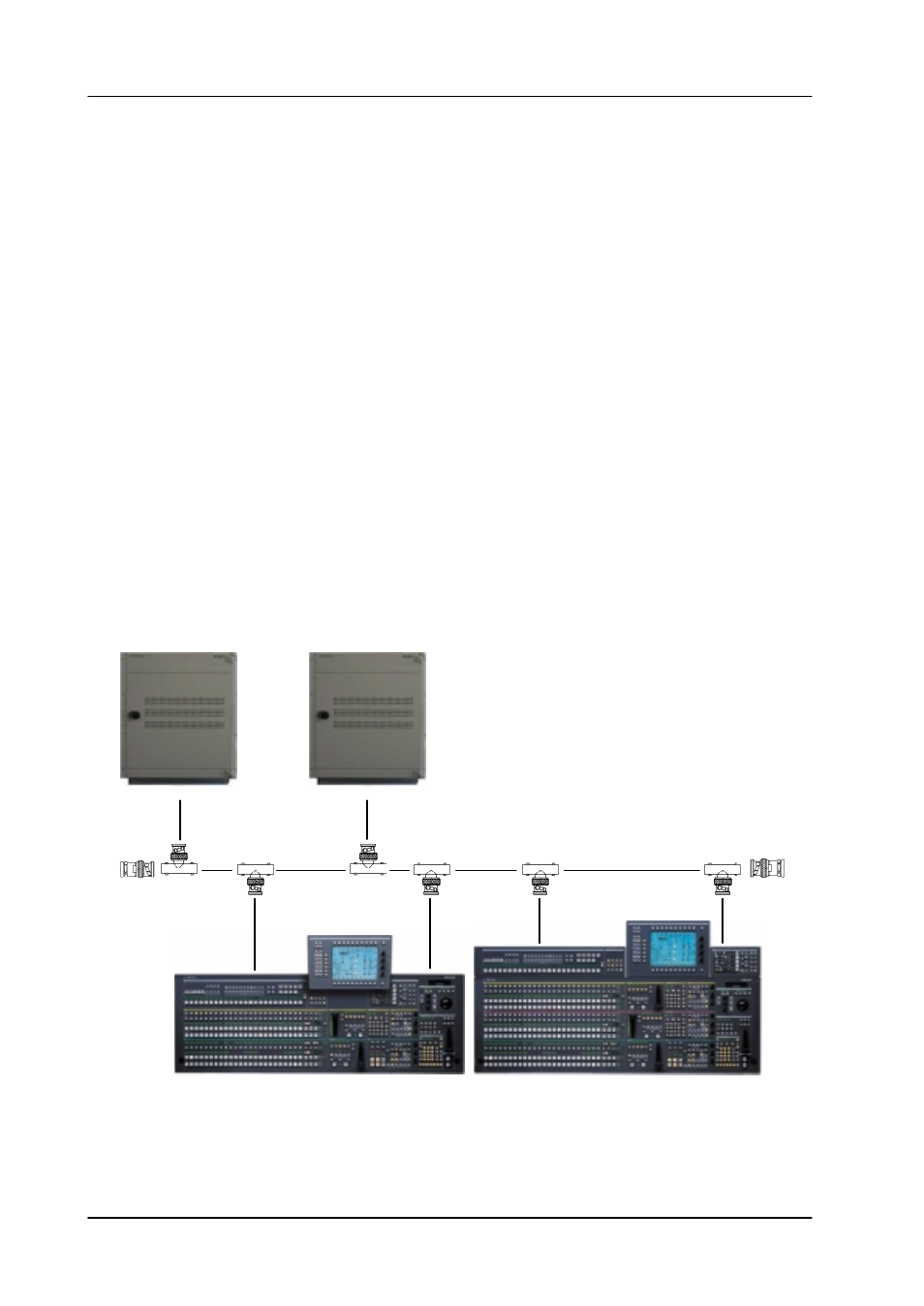

5.1.5.1 Schematic
50 W
Terminator
BNC T-type
50 W
Terminator
BNC T-type
DD35 SD mainframe
RPS35-2 control panel
DD35 SD mainframe
BNC T-type
RPS35-3 control panel
The following assumes that both mainframes and all the Control Panels are con-
nected to the LAN.
